Product Specifications
| Prod Model: |
EW-DL20W-COB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
138*105mm |
| Color Temperature: |
3500-6500k |
| Beam Angle: |
30/60 Degree |
| Pfc: |
>0.93 |
| Energy Conversion Rate: |
>88% |
| Installation Size: |
120mm |
| Safety Protection Packaging: |
White Inner Box+ EPE Foam |
| Indoor Lighting: |
Meeting Room, Super Market.Shop.. |
| OEM Service: |
Welcome |
| ODM Service: |
Welcome |
| Light Source: |
LED |
| Material: |
Aluminum |
| Installation: |
Embedded |
| Lamp Installation: |
Screw Holder |
| Application: |
Super Market |
| Source Number: |
COB |
Product Description

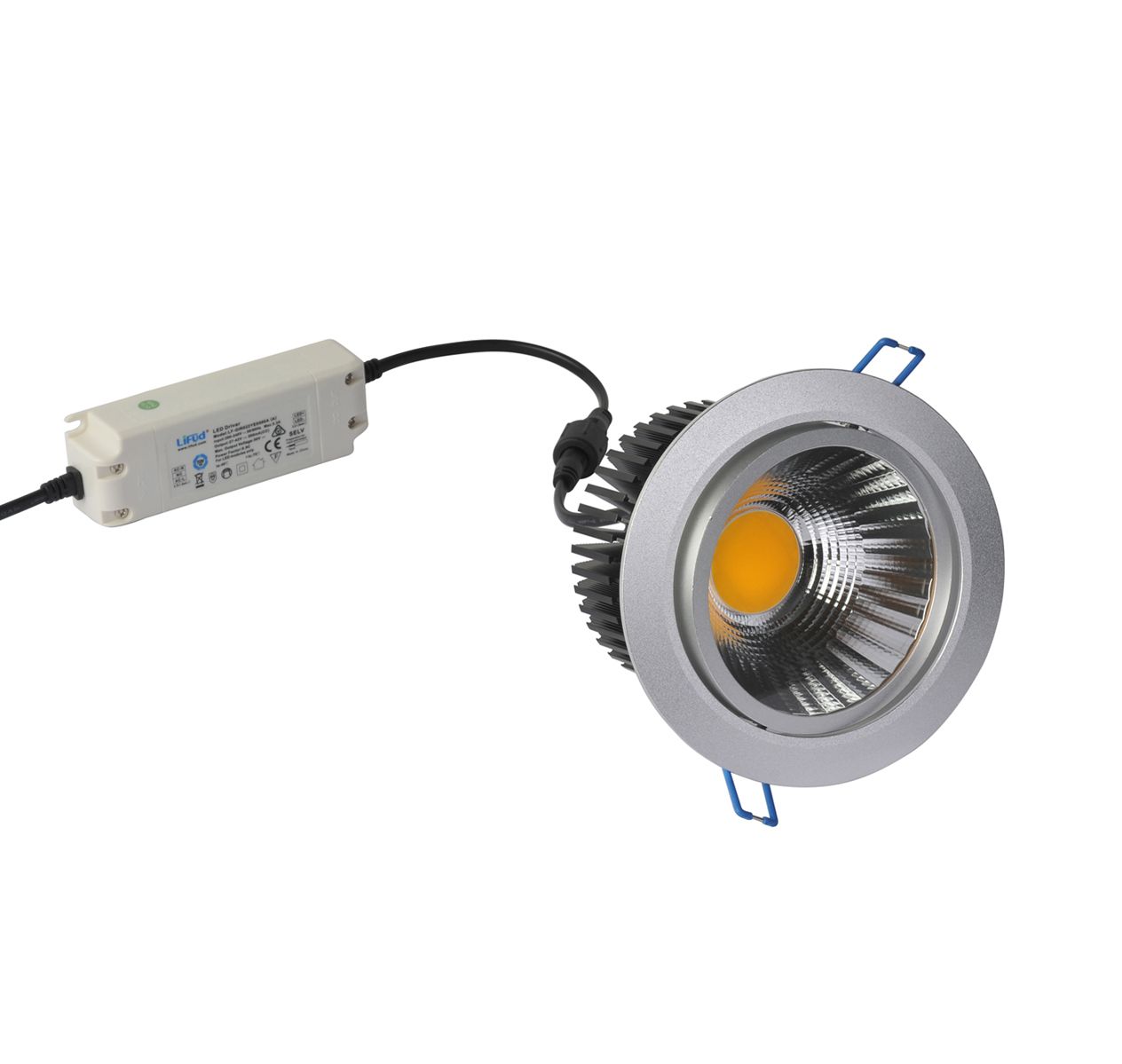

2015 Hot Selling High Brightness COB LED Down Light with 3 Years Warranty
Feature:
1. High CRI , Ra : 82-95
2. Intensive brightness : 110-120LM/W
3. LED COB chip : small chip, low current, only0.06w/ chip . Compared to aluminum base in the market , the ceramic plate cooler is with better heat hissipation. Surface temperature : 50-60ºC
4. Lifud Constant isolation LED driver , with TUV,CE,ROHS approval .
5. heat dissipation cooler : pure aluminum as material , white ring paint spraying , black oxidation treatment , more beautiful , more stable
6.All items are with IES document. Easily for lighting design.
Shenzhen Ewinled 6W COB LED down lihgt ( Power :1*6W) |
| Item No. | EW-DL6W-COB-WW | EW-DL W-COB-W | EW-DL6W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 500-530lm | 530-550lm | 550-580lm |
| Size(Mm) | Ø90*H75mm |
| Installation Size | Ø75mm |
| Shenzhen Ewinled 6W COB LED down lihgt ( Power :1*6W) |
| Item No. | EW-DL6W-COB-WW | EW-DL W-COB-W | EW-DL6W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 500-530lm | 530-550lm | 550-580lm |
| Size(Mm) | Ø90*H75mm |
| Installation Size | Ø75mm |
| Shenzhen Ewinled 15W COB LED down lihgt ( Power :1*15W) |
| Item No. | EW-DL15W-COB-WW | EW-DL15W-COB-W | EW-DL15W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 1350-1450lm | 1370-1470lm | 1400-1500lm |
| Size(Mm) | Ø138*H105mm |
| Installation Size | Ø120mm |
| Shenzhen Ewinled 20W COB LED down lihgt ( Power :1*20W) |
| Item No. | EW-DL20W-COB-WW | EW-DL20W-COB-W | EW-DL20W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 1800-1900lm | 1850-1900lm | 1900-2000lm |
| Size(Mm) | Ø138*H105mm |
| Installation Size | Ø120mm |
| Shenzhen Ewinled 30W COB LED down lihgt ( Power :1*30W) |
| Item No. | EW-DL30W-COB-WW | EW-DL30W-COB-W | EW-DL30W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 2500-2700lm | 2600-2800lm | 2700-2900lm |
| Size(Mm) | Ø160*H120mm |
| Installation Size | Ø140mm |
| Shenzhen Ewinled 40W COB LED down lihgt ( Power :1*40W) |
| Item No. | EW-DL40W-COB-WW | EW-DL40W-COB-W | EW-DL40W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 3200-3400lm | 3300-3500lm | 3400-3600lm |
| Size(Mm) | Ø180*H120mm |
| Installation Size | Ø160mm |
| Shenzhen Ewinled 50W COB LED down lihgt ( Power :1*50W) |
| Item No. | EW-DL50W-COB-WW | EW-DL50W-COB-W | EW-DL50W-COB-CW |
| Color | Warm White | White | Cold White |
| CT (K) | 2700K-3500K | 4000K-4500K | 5500K-6500K |
| Lumen Efficiency | 3600-3800lm | 3700-3900lm | 3800-4000lm |
| Size(Mm) | Ø230*H140mm |
| Installation Size | Ø200mm |
FAQ
Q1: What is colour temperature?
A1: warm,natural,pure and cool white with color temperature.
Warm white = 3000K-3500K
Natural white = 4000K-4500K
Cool white = 6000K-6500K
Q2:: What is CRI?
A2: CRI is a figure which feedback the real objects colors. Higher CRI with higher cost. our regular is 82,85,90.
Q3:What brand of leds you use for led downlight?
A3:We use original Epistar led chips as light source.
Q4:what is the years of waranty?
A4:Our regular 3 years and 5 years is also okay.
Q5:What LED driver you use?
A5:Regular is Lifud, MEANWELL or EAGLERIES or Philips,it upon your requirements.
Q6:What is the lead time?
A6:Once order confirmed,will arrange production ASAP,the lead time is around 5-7working days.
