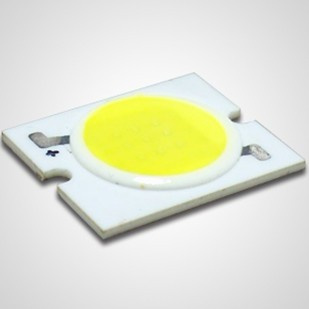

COB LED Module

Name: COB LED Module
Brand: china-manufacturer-directory.com
SKU: 716866365
Availability: InStock
Rating: 4.9 (125 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1000/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	LPILED-COB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Manufacturing Technology:	Optoelectronic Semiconductor
Material:	Compound Semiconductor
Type:	N-type Semiconductor
Package:	SMD

Product Description

COB LEDs
Brightness LED chip
Ideal for ceiling light, down light, spotlight, floodlight
Power: 3W to 40W

Part Number	POWER	Diameter (mm)	Color	WLD/CCT	VF(V DC)	IF(mA)	Lumens (lm)			Viewing Angle
Part Number	POWER	Diameter (mm)	Color	WLD/CCT	VF(V DC)	IF(mA)	MIN	TYPE	MAX	Viewing Angle
LP-A2011-3WW	3W	OD:Ø20mm LD:Ø11mm	Warm white	2700-3500K	10-12V	300mA	240	250	260	120
LP-A2011-3NW			Neutral White	4000-4500K			250	260	270
LP-A2011-3CW			Cool White	5500-6500K			250	260	270
LP-A2011-5WW	5W	OD:Ø20mm LD:Ø11mm	Warm white	2700-3500K	15-20V	300mA	400	415	430	120
LP-A2011-5NW			Neutral White	4000-4500K			410	425	440
LP-A2011-5CW			Cool White	5500-6500K			410	425	440
LP-A2014-5WW	5W	OD:Ø20mm LD:Ø14mm	Warm white	2700-3500K	15-20V	300mA	400	415	430	120
LP-A2014-5NW			Neutral White	4000-4500K			410	425	440
LP-A2014-5CW			Cool White	5500-6500K			410	425	440
LP-A2014-7WW	7W	OD:Ø20mm LD:Ø14mm	Warm white	2700-3500K	20-24V	300mA	525	560	600	120
LP-A2014-7NW			Neutral White	4000-4500K			560	600	630
LP-A2014-7CW			Cool White	5500-6500K			560	600	630
LP-A2820-7WW	7W	OD:Ø28mm LD:Ø20mm	Warm white	2700-3500K	20-24V	300mA	525	560	600	120
LP-A2820-7NW			Neutral White	4000-4500K			560	600	630
LP-A2820-7CW			Cool White	5500-6500K			560	600	630
LP-A2820-12WW	12W	OD:Ø28mm LD:Ø20mm	Warm white	2700-3500K	40-45V	300mA	900	960	1020	120
LP-A2820-12NW			Neutral White	4000-4500K			960	1020	1080
LP-A2820-12CW			Cool White	5500-6500K			960	1020	1080
LP-A2820-15WW	15W	OD:Ø28mm LD:Ø20mm	Warm white	2700-3500K	45-50V	300mA	1125	1200	1275	120
LP-A2820-15NW			Neutral White	4000-4500K			1200	1275	1350
LP-A2820-15CW			Cool White	5500-6500K			1200	1275	1350
LP-A3223-10WW	10W	OD:Ø32mm LD:Ø23mm	Warm white	2700-3500K	9-12V	900mA	750	800	850	120
LP-A3223-10NW			Neutral White	4000-4500K			800	850	900
LP-A3223-10CW			Cool White	5500-6500K			800	850	900
LP-A3223-15WW	15W	OD:Ø32mm LD:Ø23mm	Warm white	2700-3500K	45-50V	300mA	1125	1200	1275	120
LP-A3223-15NW			Neutral White	4000-4500K			1200	1275	1350
LP-A3223-15CW			Cool White	5500-6500K			1200	1275	1350
LP-A3223-20WW	20W	OD:Ø32mm LD:Ø23mm	Warm white	2700-3500K	30-36V	600mA	1500	1600	1700	120
LP-A3223-20NW			Neutral White	4000-4500K			1600	1700	1800
LP-A3223-20CW			Cool White	5500-6500K			1600	1700	1800
Part Number	POWER	Diameter (mm)	Color	WLD/CCT	VF(V DC)	IF(mA)	Lumens (lm)			Viewing Angle
Part Number	POWER	Diameter (mm)	Color	WLD/CCT	VF(V DC)	IF(mA)	MIN	TYPE	MAX	Viewing Angle
LP-A4844-10WW	10W	OD:Ø48mm LD:Ø44mm	Warm white	2700-3500K	30-36V	300mA	750	800	850	120
LP-A4844-10NW			Neutral White	4000-4500K			800	850	900
LP-A4844-10CW			Cool White	5500-6500K			800	850	900
LP-A4844-16WW	16W	OD:Ø48mm LD:Ø44mm	Warm white	2700-3500K	24-30V	600mA	1200	1280	1360	120
LP-A4844-16NW			Neutral White	4000-4500K			1280	1360	1440
LP-A4844-16CW			Cool White	5500-6500K			1280	1360	1440
LP-A4844-20WW	20W	OD:Ø48mm LD:Ø44mm	Warm white	2700-3500K	30-36V	600mA	1500	1600	1700	120
LP-A4844-20NW			Neutral White	4000-4500K			1600	1700	1800
LP-A4844-20CW			Cool White	5500-6500K			1600	1700	1800
LP-A2522-10WW	10W	25222.5mm LD:Ø20mm	Warm white	2700-3500K	10-12V	900mA	750	800	850	120
LP-A2522-10NW			Neutral White	4000-4500K			800	850	900
LP-A2522-10CW			Cool White	5500-6500K			800	850	900
LP-A5234-15WW	15W	OD:Ø52mm LD:Ø34mm	Warm white	2700-3500K	25-30V	600mA	1125	1200	1275	120
LP-A5234-15NW			Neutral White	4000-4500K			1200	1275	1350
LP-A5234-15CW			Cool White	5500-6500K			1200	1275	1350
LP-A5234-30WW	30W	OD:Ø52mm LD:Ø34mm	Warm white	2700-3500K	30-36V	1000mA	2250	2400	2550	120
LP-A5234-30NW			Neutral White	4000-4500K			2400	2550	2700
LP-A5234-30CW			Cool White	5500-6500K			2400	2550	2700
Part Number	POWER	Diameter (mm)	Color	WLD/CCT	VF(V DC)	IF(mA)	Lumens (lm)			Viewing Angle
Part Number	POWER	Diameter (mm)	Color	WLD/CCT	VF(V DC)	IF(mA)	MIN	TYPE	MAX	Viewing Angle
LP-H3023-3WW	3W	OD:Ø30mm LD:Ø23mm	Warm white	2700-3500K	9-12V	300mA	240	250	260	120
LP-H3023-3NW			Neutral White	4000-4500K			250	260	270
LP-H3023-3CW			Cool White	5500-6500K			250	260	270
LP-H3023-4WW	4W	OD:Ø30mm LD:Ø23mm	Warm white	2700-3500K	12-14V	300mA	300	320	340	120
LP-H3023-4NW			Neutral White	4000-4500K			320	340	360
LP-H3023-4CW			Cool White	5500-6500K			320	340	360
LP-H3529-5WW	5W	OD:Ø35mm LD:Ø29mm	Warm white	2700-3500K	15-20V	300mA	400	415	430	120
LP-H3529-5NW			Neutral White	4000-4500K			410	425	440
LP-H3529-5CW			Cool White	5500-6500K			410	425	440
LP-H5042-7WW	7W	OD:Ø50mm LD:Ø42mm	Warm white	2700-3500K	22-24V	300mA	525	560	600	120
LP-H5042-7NW			Neutral White	4000-4500K			560	600	630
LP-H5042-7CW			Cool White	5500-6500K			560	600	630
LP-H5044-10WW	10W	OD:Ø50mm LD:Ø44mm	Warm white	2700-3500K	30-36V	300mA	750	800	850	120
LP-H5044-10NW			Neutral White	4000-4500K			800	850	900
LP-H5044-10CW			Cool White	5500-6500K			800	850	900
LP-H5851-15WW	15W	OD:Ø58mm LD:Ø51mm	Warm white	2700-3500K	45-50V	300mA	1125	1200	1275	120
LP-H5851-15NW			Neutral White	4000-4500K			1200	1275	1350
LP-H5851-15CW			Cool White	5500-6500K			1200	1275	1350
LP-H6558-20WW	20W	OD:Ø65mm LD:Ø58mm	Warm white	2700-3500K	60-65V	300mA	1500	1600	1700	120
LP-H6558-20NW			Neutral White	4000-4500K			1600	1700	1800
LP-H6558-20CW			Cool White	5500-6500K			1600	1700	1800
LP-H6558-30WW	30W	OD:Ø65mm LD:Ø58mm	Warm white	2700-3500K	65-70V	450mA	2250	2400	2550	120
LP-H6558-30NW			Neutral White	4000-4500K			2400	2550	2700
LP-H6558-30CW			Cool White	5500-6500K			2400	2550	2700
LP-H6052-40WW	40W	OD:Ø60mm LD:Ø52mm	Warm white	2700-3500K	30-36V	1200mA	3000	3200	3400	120
LP-H6052-40NW			Neutral White	4000-4500K			3200	3400	3600
LP-H6052-40CW			Cool White	5500-6500K			3200	3400	3600

LP International Industries Co Ltd was established in 2004, located in Shenzhen China.
Main deal with controller, LEDs and LED lighting business.We have our own design, SMT and assembly facilities which achieved ISO9001, ISO14001 management system.And take serious QC system to make sure products meet inquirements.

Only One Earth!LP take care of the environment and take action on it.All of our material RoHS compliant.
Let's together make the life more better.

Main Products:
LEDs:
Lamp LED, SMD LED, powr LED 1W, 5W, 10W~150W, RGB 15W~60W
Outdoor Lightings:
LED Streetlight, E40 LED street lamp
LED high bay luminaire 60W~150W
LED floodlight, LED tunnel light
LED underwater light, PAR56 LED Swimming pool lights
Indoor Lightings:
LED Spotlight with base MR16/GU10/E27/E14
LED bulb, LED candle bulb
LED panel light, LED ceiling light
T5 LED tube light, T8 LED tube light
Decorating LED lights:LED neon flex light, LED flex strip, RGB lights
LED grow lights, LED aquarium lights
Remote controls, RGB controllers

More new items waiting for you.
Contact us now.
