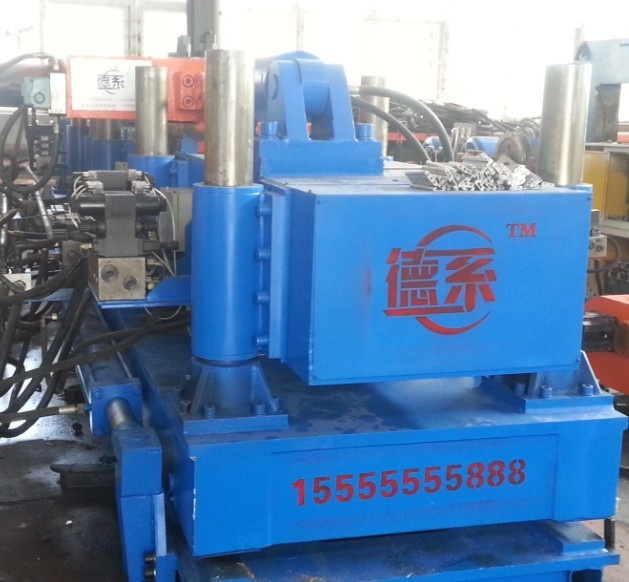

Coiler Bending Machine CNC Control
Product Specifications
| Automation: |
Automatic |
| Type For Cutting Machine: |
CNC Cutting Machine |
| Type For Fold-bending Machine: |
CNC Fold-bend Machine |
| Application: |
Machinery & Hardware |
| Type: |
Pipe and Tube Bending Machine |
Product Description
Coiler bending machine adopts in rotary way right and left to bend coilers. It's controlled by CNC, designed first in our country. It's a kind of essential equipment used processing huge boilers in power stations:
The working principle of coiler bending machine:
Push bending device is adopted, cold machinery bend. Hydraulic drive, servo motor and PC control technology can finish pipe feeding, clamping and bending step by step automaticly...
|
No. |
Parameter Name |
Values |
Unit |
Remarks |
|
1 |
Max Torque |
80000 |
N@m |
|
|
2 |
Max&Min bend pipe od |
φ32~φ76 |
mm |
|
|
3 |
Max&Min bend radius |
40~200 |
mm |
|
|
4 |
Max bend angle |
200 |
deg. |
|
|
5 |
Bend speed |
0~2 |
r/min |
adjustable |
|
6 |
Angle accuracy value |
±0.1 |
deg. |
|
|
7 |
Pipe pushing force |
30 |
KN |
adjustable |
|
8 |
Pipe pushing distance |
700 |
mm |
|
|
9 |
Pipe feeding length |
7 |
m |
|
|
10 |
CNC pipe feeding speed |
0~30 |
R/min |
adjustable |
|
11 |
Pipe feeding accuracy value |
±0.2 |
mm |
|
|
12 |
Hydraulic system working pressure |
14 |
MPa |
adjustable |
|
13 |
Weight |
1#machine |
14 |
T |
|
|
2#machine |
14 |
T |
|
|
Pipe feeding part |
12.5 |
T |
|
|
Pipe pushing part |
2.3 |
T |
|
We are a manufacturer, specialized in producing pipe benders and profile bending machines. We bring in Italian and German technology to manufacture high quality pipe benders and pipe rolling machine. We bend pipes from OD 38mm to 550mm in use of pipe benders. We bend a great number kinds of profiles in use of profile rolling machines, such as angle steel, U-steel, flat bar steel, round pipe steel, square steel, channel steel, I-iron, H-iron, plastic pipes and so on. We manufacture CNC, NC, PLC pipe benders and section bending machines. We are making every efforts to manufacture more and more high quality and good price products!
Dexi occupies 20, 000 square meters workshop and office place. Customers can have samples of their products tested in-house to insure the highest quality results.
Based on the advanced international management mode, the company brings in German machinery production technology and pay more attention to the machine designs and quality of raw materials. The company aims to manufacture the most advanced, durable and stabler pipe benders and bending machines at home and abroad.
The company makes efforts to manufacture machine tools to bend a great number of pipes such as round pipes, square pipes, special-shaped steel pipes, square steel pipes, stainless steel pipes, aluminum pipes, copper pipes, angle steel, flat steel, channel steel, I beam and other nonferrous metal pipes.
Dexi machines sell well at home and some foreign countries and get widely praised from our customers. We not only manufacture and provide high quality products, but also we have golden service after selling. A customer buying our machines means he enjoys the life-long after-selling service.
Our products such as type CNC, NC, PLC hydraulic pipe benders and profile bending machines are widely used in several fields such as aviation, shipbuilding, boilers, road and bridge, construction, automobiles, refrigiration, furniture and so on.
