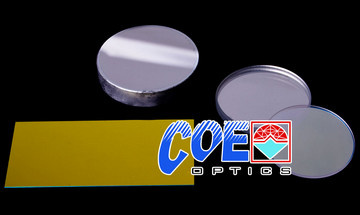

Cold Optical Mirror
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,FCA |
| Min Order: |
30/Piece |
| Pay Type: |
T/T,Paypal,Western Union |
At 45° incidence, Cold Mirrors reflect the visible spectrum of light and transmit the near infra-red, which contains the thermal energy i.e. Heat. Cold Mirrors are therefore another excellent alternative for transmitting the near infra-red spectrum. Cold Mirrors have a sharpe cut off between IR and Visible because they have a dielectric coating that can be controlled.Specifications:Reflectance (45°)*: > 90% (average over 425-650nm)Transmittance (45°)*: > 85% (average over 800-1200nm)Diameter: +0.0 / -0.2 mmLength/width: ± 0.2 mmThickness: ± 0.25 mmSurface quality: <60-40 scratch/digFlatness: < average 5λ over 25mm (sheeted material)Parallelism: < average 10 arcmin (not guaranteed)
| Prod Model: |
COE |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Nanjing Co-Energy Optical Crystal Co., Ltd. is a professional customized crystal & optics manufacturer in China. We provide laser crystals made from YAG series, with different doped concentration, KTP, BBO & optical components from sapphire, optical glasses, fused silica, quartz, color glass and IR materials.
Our laser rods, optical lenses, prisms, windows, lightguides, mirrors, filters, and coating products etc are widely used in laser industry, science, education, Aesthetic, medicine, communication and defense etc.
