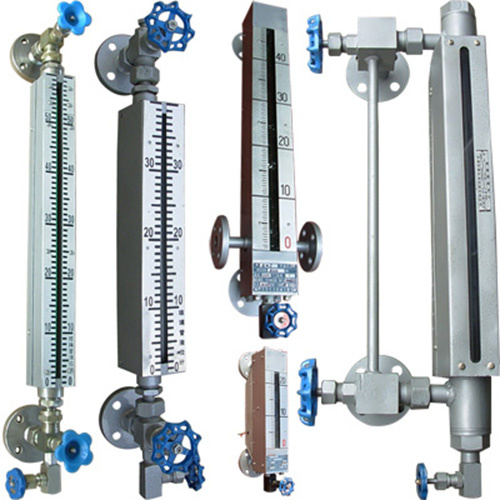

Color Quartz Tube Liquid Level Gauge, Liquid Level Indicator/Meter
| Price: |
US $ 50/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
Color quartz tube liquid level gauge liquid level sensors
General Information
1. This colored quartz pipeline liquid level meter is a kind of direct-reading level meter with withstand high temperature, pressure and display color.
2. It is widely used for indicating the medium level such as water, oil, liquid ammonia, propane, propylene, liquefied gas, alkali and acid and so on.
The standard of metal parts with high temperature and pressure resistance
1. Quartz glass tube:
700 °C, working pressure ≤10.8MPa, standard JC225-81
2. Graphite ring
600 °C, working pressure ≤25,MPa, standard GB4622.1~3
Features
1. The quartz has the advantages of withstanding high temperature, pressure and corrosion-resistance.
2. Display in color, the liquid marks green and the gas is red.
3. The level can be read at any angle.
4. Used by vessels, salt mist resistant.
Recommended center-center distance: |
300, 500, 800, 1100, 1400,1700,2000mm(custom made)
|
Indicate mode: |
single color, bicolor(red as vapor phases, green as liquid) |
Material: |
carbon steel, 304,316L, 1Cr18Ni9Ti, 0Cr18Ni9, 304 with PTFE lining |
Nominal pressure: |
PN6-PN100(×0.1MPa) |
304 +PTFE≤PN40 |
PP≤100°C |
Working temperature: |
carbon steel ≤350°C |
Stainless steel ≤450°C |
304+PTFE ≤200°C |
PP≤100°C |
Drain valve: |
drain needle valve (or customize) |
Vent valve: |
vent needle valve (or customize) |
Process flange: |
DN20/RF HG/T 20592-09 |
The heat steam interface: |
ZG1/2"male screw thread |
The heat steam pressure: |
≤1.0Mpa |
Eclectic heating: |
self-limiting temperature heating (unnecessary for anticorrosive type) |
Steel ball self-closing pressure: |
≥0.3Mpa |
Light power supply: |
24V DC, 36V AC |
Environment temperature: |
-50~+80°C |
| Prod Model: |
quartz tube level gauge |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Mounted: |
Side Mounted |
| High Working Pressure: |
≤pn100 |
| Meterial: |
Carbon Steel, 304,316L, 1cr18 |
| Measuring Range: |
300 ~ 2000mm(L) |
| Connecting Flange: |
Dn20 Pn4.0MPa RF Jb/T82 |
| Principle: |
Piezoelectric Type |
| Range: |
0-3m |
| Kind: |
Liquid Level Transmitter |
| Structure: |
All in One |
| Material: |
Ss304/316L |
