Product Specifications
| Prod Model: |
OBM-757 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Material: |
ABS + Silicon |
| Dimensions: |
160mm×68mm×29mm |
| Memory: |
16m |
| Data Storage: |
> 100,000 PCS |
| Light Source: |
650nm Laser |
| Scan Pattern: |
Single Line |
| Scan Rate: |
45±2 /Sec |
| Scan Precision: |
4mil |
| Scan Width: |
20mm@Window,100mm@100mm |
| Operating Mode: |
Continuous / Itemized Scanning |
| Type: |
Handheld Computer |
| CPU Type: |
ARM |
| Memory Capacity: |
16 MB |
| OS: |
Obm |
| Screen Size: |
2.8" |
Product Description

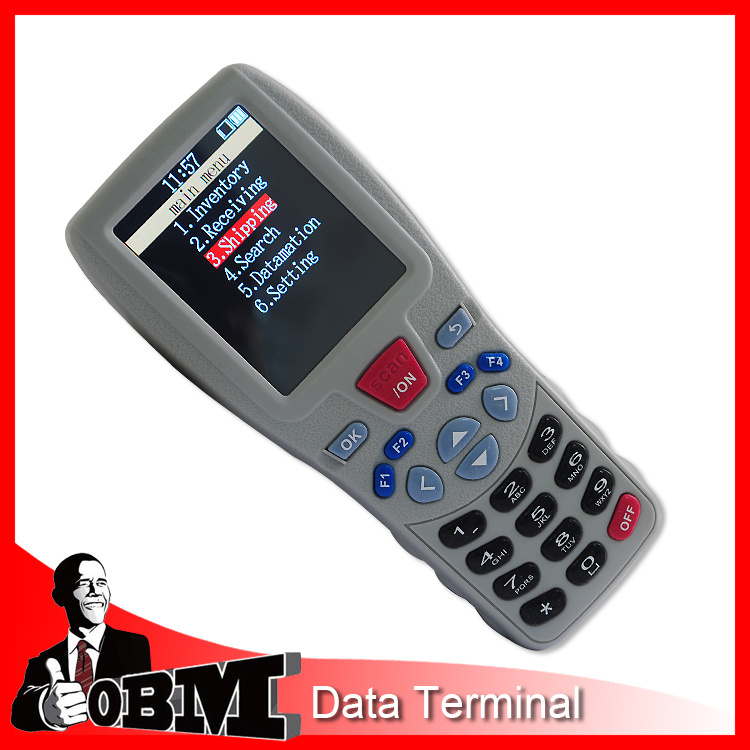

Color Screen Portable Barcode Data Collector Industrial PDA(OBM-757)
FEATURES:
MUTI-FUNCTIONAL
Covers the full circulation of commodity-receiving, shipping, cycle count, replenishment and defect report
RECONIZABLE
Supports download and of item file-barcode scanned mathes to the item automatically and displays on screen right away
SIMPLE
2.8" color display and graphical menu makes it easr to understand
EFFICIENT
Report is automatically generated right after inventory count, 90% saving on time, manpower and administrative overhead
SAFE
Real-time storage and bath transmission
Enduring
2800mA POLYMER-Lithium-ion battery ensures long working hours
About Us:
Easytech is a technology-driven company specialized in the Auto-Identifica-tion (Barcode & RFID) industry. Products include Wireless/Cordeless/Corded Laser Barcode Scanner, CCD Bar code Scanner, Barcode Data Terminal, Stock Counter, Inventory Control Handheld, Mobile POS, RFID Data Terminal and RFID Reader.
In quest of the goal of "making the best cost-effective Auto-ID products in China", Easytech puts a high standard and restrict requirements on product development, manufacture and services, and continuously searches for and digs out new demands from customers to meet the ever-changing market needs. Besides, by taking a principle as "well establish one product before moving on to the next, then plan on the next while developing the present", Easytech is able to release at least one industry-leading product every year.
By excellent performance and stable quality, Easytech has applied its OBM series of products to major companies such as China Mobile, China Telecom, China Petrol and branches of Public Security, and also many other retailers, chain-stores, logistic and manufacturing enterprises. In 2007, Easytech is honored as one of the "Top 10 National Brands of Barcode Industry" by the Auto-Identification Association of China. And from 2008 on, Easytech has been awarded the yearly "Outstanding Member" of AIM China.
|
TECHNICAL PARAMETERS |
|
Performance Characteristics |
|
Light Source |
650nm Laser |
|
Scan Pattern |
Single line |
Scan Rate |
45±2 /sec |
|
Scan Precision |
4mil |
|
Scan Width |
20mm@window , 100mm@100mm |
|
Depth of Field |
0 ~ 250mm ( 0.33mm , PCS 90% ) |
|
Roll(Till) |
30° |
|
Pitch |
65° |
|
Skew(Yaw) |
55° |
|
Resolution |
30% minimum reflectance |
|
Operating Mode |
Continuous / itemized scanning |
|
Error Rate |
1 million-to-one |
|
Indicator |
beeper , LCD |
|
Decode Capability |
EAN-8 , EAN-13 , UPC-A , UPC-E , Code 39 , Code 93 , Code 128 , EAN128 , Codaber , Industoal 2 of 5 , Interleave 2 of 5 , Matrix 2 of 5 , MSI^ |
|
Interfaces supported |
Mini USB receiver , optional RS232 or PS2 |
|
Electrical Parameters |
|
Battery |
Rechargeable lithium ion battery (3.7V ,2800mAh) |
|
Working current |
120mA |
|
Standby Current |
40mA |
|
Laser Safety |
national class2 regulatory |
|
EMC |
CE & FCC DOC compliance |
|
Physical Characteristics |
|
Memory |
16M |
|
keypad |
23 |
|
Dimensions |
160mm×68mm×29mm |
|
Material |
ABS + silicon |
|
User Environment |
|
Operating Temperature |
0 ~ 45 degree celsias |
|
Storage Temperature |
-20 ~ 60 degree celsias |
|
Humidity |
5%~95% (non-condensing) |
|
Ambient Light Immunity |
Max.5,000 Lux ( fluorescent ) |
