Forcate hot sale and popular CCT adjustable controller, LED Color dimmable controller with wireless RF design.
Main Features:
. Using latest high-speed micro-computer control chips, stable quality with accurate control effect.
. Higher compatibility, can be widely used for led products, such as led strip light, linear light, spotlight, bulb, panel light, led modules, underwater light, led downlight, led tube, etc.
. Variety changes in lighting effects, speed adjustable, brightness adjustable.
. 6 shortcut-keys, fast response for ON/OFF, CCT + /-, led color changes.
. Momery function after power off.
. DIY mode supports
. Quick Connector, easier for installation.
. Both Synchronous Control (1 remote can control several led lamps ) & 1to 1 controller (1 remote for 1 lamp ).
. Max Power: 288W

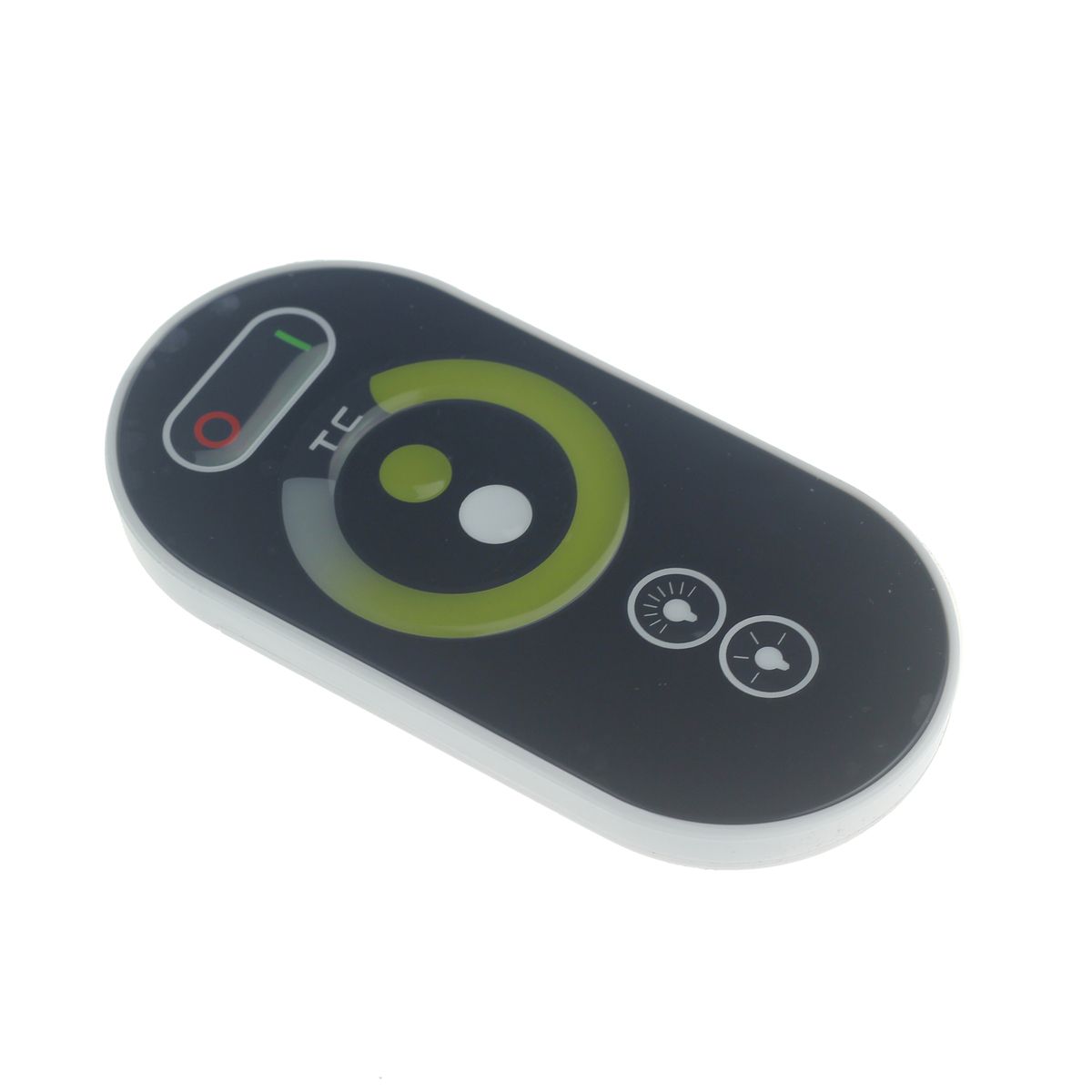

. Touch Color Ring, led color temperature changes.
Main Technical Parameters:
CCT Adjustable LED Controller |
|
Input Voltage | DC12-24V |
Output | 2 channels |
Connect Mode | Commom Anode |
Static Power | < 0.5W |
Output Current | <6A (per channel), 12A total |
Output Power | 12V 144W, 24V 288W |
Controller Frequency | 433MHz (Optional ) |
Control Distance | <30 Meters |
Typical Light Effects | Jumpy, Fade, Smooth, Flash |
Controller Material | Aluminum Alloy |
Remote controller | ABS |
Remote Color | White & Black |
Working Temperature | "-20ºC ~ +60ºC |
Net Weight | 260 G |
Gross Weight | 285 G |
Packing Size | L205*W135*H50 mm |
User Manual | Included |
Warranty | 3 Years |
