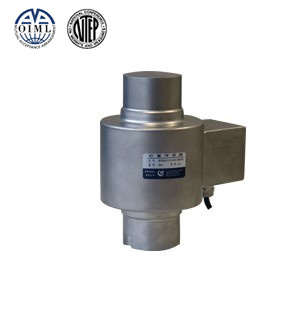

Name: truck scale load cell
Modl: BM14G
Capacity 10t to 50t .
High accuracy.
Strainless steel construction.
Easy installation and reliable performance.
With OIML approval.
BM14G load cells are available in the capacities 10t to 50t .
Strainless steel construction,hermetically welded,oil-proof,waterproof and anti-corrosive gas and medium making it lightning protected in all kinds of environment.
Column structure,anti-reversal design,good self-aligning ability,suitable for electronic platform scales,automobile testing facilities,hopper scales and other electronic weighing devices.
| Capacity |
t |
10/20/30/40/50 |
Accuracy class |
|
C2 |
C3 |
C4 |
A5S |
A5M |
Approval |
|
|
OIML R60 C3 |
|
|
|
Maximum number of
verification interval |
n max |
2000 |
3000 |
4000 |
5000 |
5000 |
Minimum load cell
verification interval |
v min |
Emax/5000 |
Emax/10000 |
Emax/14000 |
Emax/15000 |
Emax/15000 |
Combined error |
(%FS) |
≤±0.030 |
≤±0.020 |
≤±0.018 |
≤±0.018 |
≤±0.026 |
Creep |
(%FS/30min) |
≤±0.024 |
≤±0.016 |
≤±0.012 |
≤±0.012 |
≤±0.017 |
Temperature effect
on sensitivity |
(%FS/10ºC) |
≤±0.017 |
≤±0.011 |
≤±0.009 |
≤±0.009 |
≤±0.013 |
Temperature effect
on zero |
(%FS/10ºC) |
≤±0.023 |
≤±0.015 |
≤±0.010 |
≤±0.010 |
≤±0.014 |
Output sensitivity |
(mv/v) |
2.0 ± 0.02 |
Input resistance |
( Ω ) |
700 ± 7 |
Output resistance |
( Ω ) |
703 ± 4 |
Insulation
resistance |
(M Ω ) |
≥ 5000(50VDC) |
Zero balance |
(%FS) |
1.0 |
Temperature,
compensated |
( ºC ) |
-10~+40 |
Temperature,
allowed |
( ºC ) |
-35~+65 |
Excitation,
Recommended |
(V) |
5~12(DC) |
Excitation,Max |
(V) |
18(DC) |
Safe overload |
(%FS) |
150 |
Ultimate overload |
(%FS) |
300 |
![]()
