Product Specifications
| Prod Model: |
3-WH-3.6/30 2-WH-2.4/30 2-WH-3.0/30 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Piston |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
Product Description

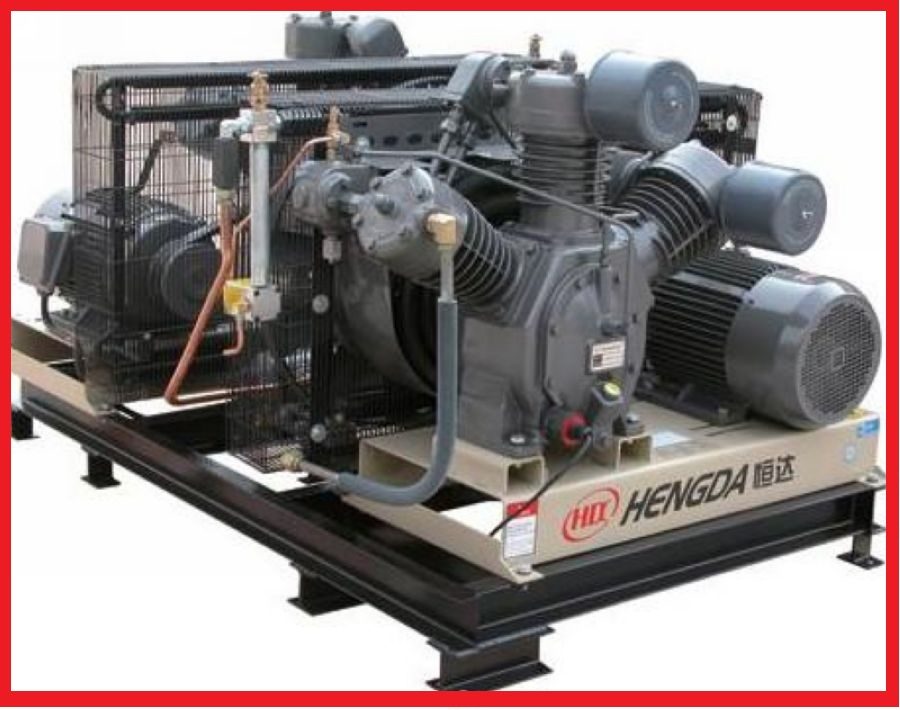

PET air compressor
-The PET compressors are named as PET STAR for PET blowing molding machine
-The compressor is equipped with a special, highly effective air cooling chiller of advanced design.
-Market leader "Herbiger" main air valve with large capacity. Its high efficiency characteristic ensures the stable running of the compressor
|
Model |
Capacity
M3/min |
Working pressure Mpa |
Motor
KW |
Speed
rpm |
Dimension
mm |
Weight
KG |
|
VH-0.7/30-SB |
0.7 |
3.0 |
7.5 |
680 |
1240*630*780 |
310 |
|
WH-1.0/30-SB |
1.0 |
3.0 |
11 |
600 |
1470*780*885 |
430 |
|
WH-1.2/30-SB |
1.2 |
3.0 |
15 |
760 |
1470*780*885 |
450 |
|
WH-1.5/30-SB |
1.5 |
3.0 |
18.5 |
680 |
1530*765*1105 |
520 |
|
VH-0.65/35 |
0.65 |
3.5 |
9 |
800 |
1800*630*1400 |
420 |
|
VH-0.7/30 |
0.7 |
3.0 |
7.5 |
680 |
1800*630*1400 |
410 |
|
VH-1.0/30 |
1.0 |
3.0 |
11 |
600 |
2005*795*1260 |
550 |
|
WH-1.1/35 |
1.1 |
3.5 |
11 |
605 |
2005*795*1260 |
550 |
|
WH-1.2/30 |
1.2 |
3.0 |
15 |
760 |
2005*795*1260 |
550 |
|
WH-1.3/35 |
1.3 |
3.5 |
18.5 |
680 |
1140*735*1450 |
520 |
|
WH-1.5/30 |
1.5 |
3.0 |
18.5 |
680 |
1140*735*1450 |
520 |
|
2-WH-2.0/30 |
2.0 |
3.0 |
2*11 |
600 |
1880*1180*1440 |
1050 |
|
2-WH-2.2/35 |
2.2 |
3.5 |
2*15 |
605 |
1880*1180*1440 |
1080 |
|
2-WH-2.4/30 |
2.4 |
3.0 |
2*15 |
760 |
2050*1570*980 |
1080 |
|
2-WH-2.6/35 |
2.6 |
3.5 |
2*18.5 |
700 |
1880*1180*1440 |
1150 |
|
2-WH-3.0/30 |
3.0 |
3.0 |
2*18.5 |
760 |
1880*1180*1440 |
1150 |
|
3-WH-3.6/30 |
3.6 |
3.0 |
3*15 |
700 |
2350*1570*1880 |
1580 |
|
4-WH-5.0/3.5 |
5.0 |
3.5 |
4*18.5 |
680 |
2520*1920*1540 |
2400 |
|
4-WH-6.0/30 |
6.0 |
3.0 |
4*18.5 |
790 |
2520*1920*1540 |
2400 |
