Product Specifications
| Prod Model: |
Contact/contactless IC + magnetic stripe |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Cr80: |
0.84+_0.04mm |
| Name: |

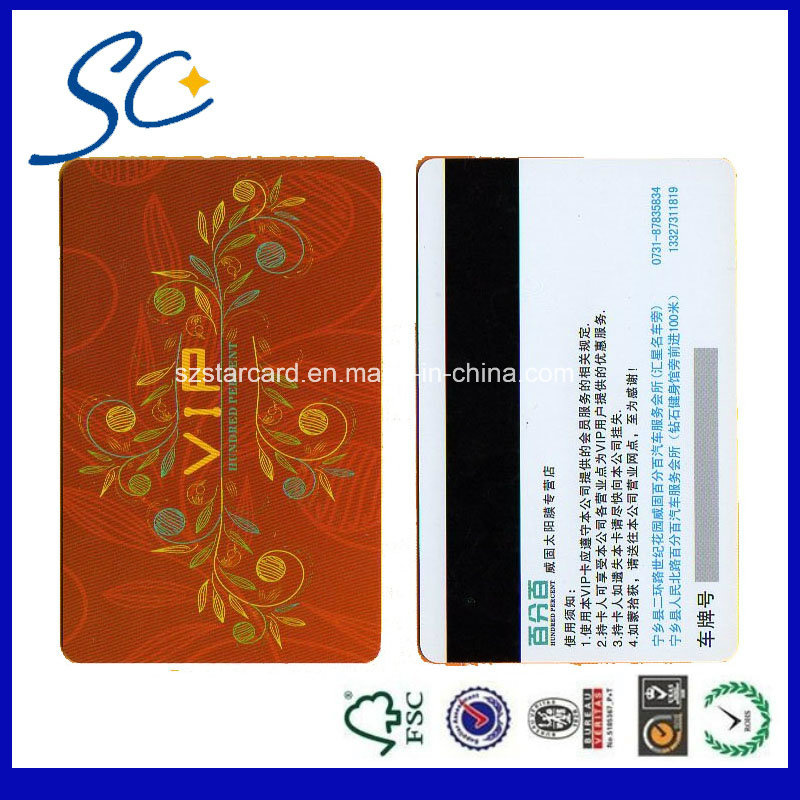

Combine Smart Card with Magnetic Stripe |
| Place Of Origin: |
Guangdong China (Mainland) |
| Color: |
Full Printing |
| Frequency: |
Lf,Hf,UHF |
| Function: |
Information |
| Material: |
PVC |
| Type: |
Contact/Contactless IC + Magnetic Stripe |
| Structure: |
Contact/Contactless IC + Magnetic Stripe |
Product Description
1)Dimensions: ISO 7816, ISO/IEC 14443, ISO/IEC10536-1. CR80 size: 86mm x 54mm x (0.80+_0.05)mm, ABS/PVC material
2)RFID chip: 125kHz -13.56MHz frequeney. TK/EM/Mifare seria contactless IC chip
3)IC chip: SLE5542/5528, At24C01/AT24C02 etc
4)Magstripe: 3000 OE/2750 OE high-co magstripe, 300 OE low-co magstripe
5)Advantage: Better security than smart card or magnetic stripe card only
6)Printing: CMYK/pantone offset printing, metalic silver/golden background printing, UV printing, water-mark printing, micro-printing, over-printing, anti-counterfeiting printing, thermal printing, inkjetting printing.
7)Other features: Plastic film lamination, UV coating, glossy/vanish/matt surface on demand, encoding, signature panel, hologram logo, emboss, hotstamp.
8)Applications: Bank card, ID card, Certificate, Express way, Access control, BuS/metro ticket, supermarket, school, hospital, club, hotel, membership card...
| RFID Smart Card/tag/label | Low Frequency | Memory | ISO Standard |
| TK4100/EM4100/EM4102/EM4200 | 125KHz | 8 byte (read only) | / |
| EM4305 | 125KHz/134.2KHz | 64 byte | 11784/85 |
| EM4450 | 125KHz | 128 byte | / |
| T5577 | 125KHz | 28 byte | / |
| Hitag 1 | 125KHZ | 256 byte | / |
| Hitag 2 | 125KHz/134.2KHZ | 32 byte | / |
| Hitag S256 | 125KHz/134.2KHZ | 32 byte | / |
| Hitag S2048 | 125KHZ/134.2KHz | 256 byte | 11784/85 |
| RFID Smart Card | HF/UHF | Memory | ISO standard |
| Desfire EV1 2k ,CPU | 13.56MHZ | 2k byte | 14443A |
| Desfire EV1 4k,CPU | 13.56MHZ | 4k byte | 14443A |
| Desfire EV1 8k,CPU | 13.56MHZ | 8k byte | 14443A |
| I-Code SLI | 13.56MHz | 128 byte | 15693 |
| Ultralight | 13.56MHz | 64 byte | 14443A |
| Ultralight C | 13.56MHz | 192 byte | 14443A |
| NXP 1k,Fudan F08 | 13.56MHz | 1K byte | 14443A |
| NXP 4k,Fudan F32 | 13.56MHz | 4K byte | 14443A |
| Alien H3/H4 | 860-960 MHZ | 512 bits | ISO18000-6C/EPC C1 |
| Impinj M4/M5 | 860-960 MHZ | 512 bits | ISO18000-6C/EPC C1 |
| ISSI 2k | 860-960 MHZ | 2K byte | ISO18000 |
| Contact IC Card | Type | Memory | ISO Standard |
| SLE5542/5528,FM4442/4428 | Encryption IC | 256 byte/1k byte | ISO7816 |
| AT24C02/04/08/16/64 | Storage IC | 2k/4k/8k/16k/64k byte | ISO7816 |
| CPU IC 4k/16k/32k/64k | CPU | 4k/16k/32k/64k | ISO7816 |
Shenzhen Starcard Technology Co; Ltd Is A well-known multinational corporation with profound foreign investment, which is located in Shenzhen Special Economic Zone in China.
We are focused on Sell LF / HF / UHF tag, induction card, Contactless smart card, As well as ordinary Paper PVC plastic Card.
Company specialized in Smart IC card, dual interface card, magnetic card, barcode card, password scratch card, membership card, all kind of contact and non-contact card production. Disposable Animal Injection with Microchip, gift card, magnetic card, bar code card, Laser card, 3D card, Prepaid Scratch card, Label cards, Photo card, unstandard card, Card envelope/holder, NFC Lable and card reader.
We stick to principle of "quality first, service first, continuous improvement and innovation to meet the customers "for the management and "zero defect, zero conplaints "as the quality objective. To perfer our service, we provide the products with the good quality at very competitive price.
Our company has always insisted on relying quality to seek survival, benefit to seek development. Use fine after-sale service to meet the needs of consumers. Honesty and credit. Products are sold well all over the world, Warmly welcome all fields of friends to visit our company and negotiate trade.
Equipments:
Heidelberg 4 colors offset printer
Magnetic card laminating press
Single color offset printer
IC card automatism encapsulation machine
UV+IR conveyorize drying systems
Laminator
CNC auto-alignment punching machine
Card embossing system
