Product Specifications
| Prod Model: |
XBQ-2 |
| Markets: |
Southeast Asia,Mid East,Eastern Asia |
| Voltage: |
Can Be Customized |
Product Description
Product Description

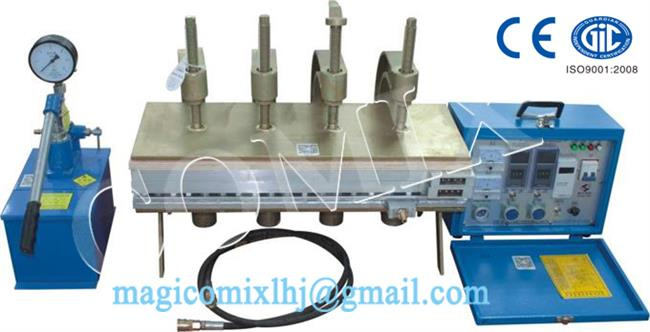

Our products are mainly applied to industries for splicing and repairing for conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry, tobacco, and food automatic line field.
Technical Parameters
1.Vulcanizing Pressure(Mpa):1.0;
2.Vulcanizing Repairing Temperature: 145ºC;
3.Temperature Rising Time:<30min;
4.Total Power:3.6KW;
5.Working Voltage:380V(Customized according to consumers' requests);
6. Size of Heating Plate:270*700mm(Customized according to consumers' requests);
7.The Quantity of Heating Plate:2 PCS;
8. Dimension Size;700*410*550mm
9.The Quantity of Water Pressure Plate:1PC;
10.Beams:4 Sets;
11.Output Power Of Temperature Controller Box:25KW;
12.The Voltage Of Temperature Controller Box:380V;
13.Manual Pump: S-SY12.5/4;
14.Pressure Testing Pump Outlet Pressure:4 Mpa
15.Weight:140kgs
