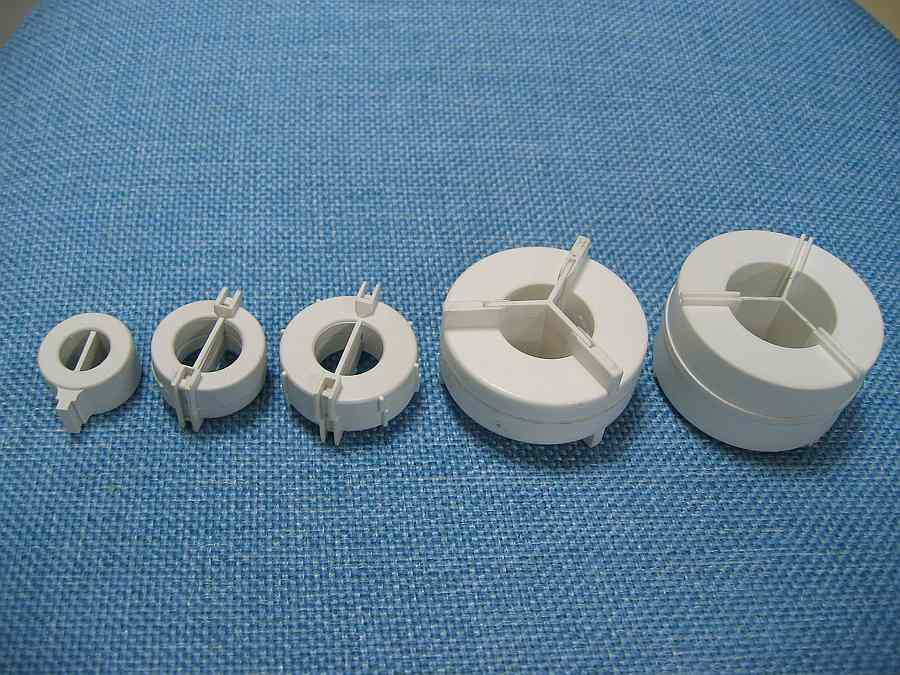

Nanocrystalline Common Mode Choke Cores

Characteristics:
High saturation magnetic induction (1.25T), high permeability, high inductance (ten times higher than that of ferrite), low loss, small volume, light in weight, high electric interference resistance, good frequency performance and high temperature stability.
* All AL value be tested under 0.3V.

Cores with other specifications can be provided concerning to customer's demand.

Part No.	Core Dim. (mm)			Finished Core (mm)			Le	Ae	AL min. *	AL min/max*
Part No.	OD	ID	HT	OD	ID	HT	(cm)	(cm2)	10KHz	100KHz
ON-090604	9	6	4	10	4.9	6.6	2.40	0.04	9	4	7
ON-100705	9.8	6.5	4.5	12	4.6	6.5	2.40	0.07	17	7	12
ON-120905	12	8.5	5	13	6.8	7.1	3.22	0.07	11	5	8
ON-191105	19	11	5	19	9	9	4.70	0.13	16	6	11
ON-201205	20	12	5	21	10	9	5.03	0.14	16	6	11
ON-221405	22	14	5	23	11	7.1	5.70	0.13	13	5	9
ON-261605	26	16	5	31	14	9.9	6.60	0.16	14	6	10
ON-120910	12	9	10	17	7	13	3.30	0.11	18	7	13
ON-191410	19	14	10	23	12	13	5.18	0.18	19	8	14
ON-201205	20	12	5	25	10	8.6	5.30	0.14	15	6	11
ON-201208	20	12	8	25	10	12	5.03	0.20	22	9	16
ON-201210	20	12	10	25	10	14	5.03	0.26	29	12	21
ON-241515	24	15	15	28	13	19	6.12	0.47	43	17	31
ON-261610	26	16	10	31	14	14	6.60	0.38	32	13	23
ON-281912	28	19	12	33	17	16	7.38	0.77	59	24	42
ON-302010	30	20	10	37	18	14	7.85	0.35	25	10	18
ON-322010	32	20	10	39	18	14	8.17	0.39	27	11	19
ON-302015	30	20	15	37	18	19	7.85	0.53	38	15	27
ON-402510	40	25	10	45	23	14	10.20	0.49	27	11	19
ON-402515	40	25	15	45	23	17	10.20	0.73	41	16	29
ON-503210	50	32	10	55	30	12	12.90	0.59	26	10	18
ON-503215	50	32	15	55	30	17	12.90	0.88	39	15	27
ON-503220	50	32	20	55	30	22	12.90	1.17	51	21	36

Gaotune Technologies is a leading manufactory of the Amorphous c-core & Nanocrystalline cores located in China. Our quality commitment includes ISO 9001 certification. Our products are also RoHS compliant. We are always doing our best to support the customers with our high level properties of the amorphous c-core, which applied to Solar inverters and Wind power inverters, and nanocrystalline cores, which applied on Current transformers. Most of our customers come from Europe and North America. Our main products include as following: -Amorphous C-Core Applied to solar inverters, wind power inverters, other AC reactors and DC inductors from 10 to 1000+ amperes. -Rectangular Shapes of Amorphous Cores To be used in high power inverters; -Nanocrystalline Ring Core and Rectangular Core Applied to Current Transformers, Sensors, Common Mode Choke.
