Product Specifications
| Prod Model: |
MDC / MDA / MDK 25A-110A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Moduletype: |
Rectifier Diode |
| Package Type: |
Surface Mount |
| Max. Forward Voltage: |
2600V |
| Max. Reverse Voltage: |
2600V |
| Max. Forward Current: |
25A-110A |
| Max. Reverse Current: |
25A-110A |
| OEM: |
Available |
| Vdrm/Vrrm: |
400-2600V |
| Igt: |
Below 8ma |
| Tjm: |
150 Centigrade |
| Material: |
Compound Semiconductor |
| Package: |
Sealing According to International Standard |
Product Description

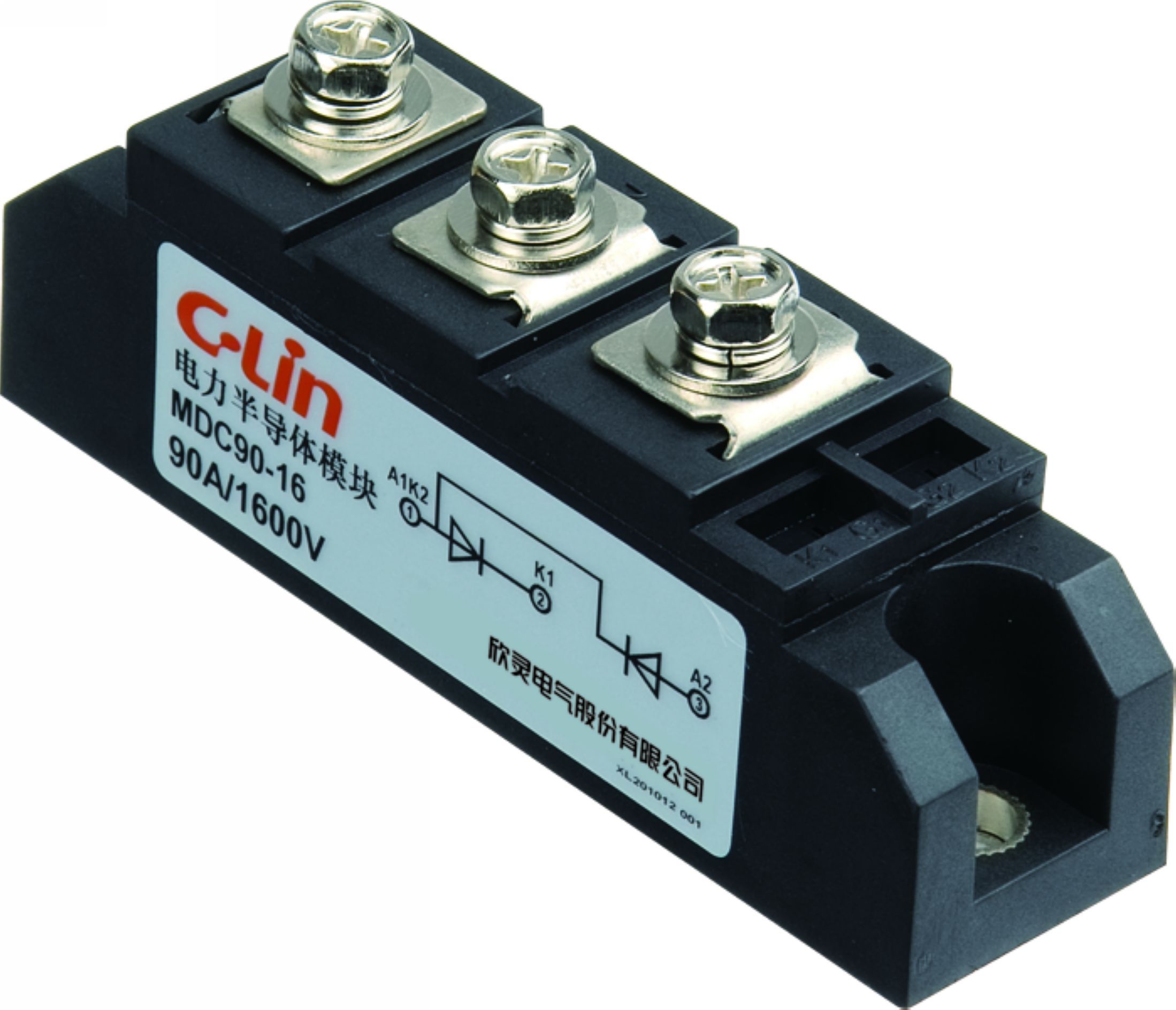

Power Modules/ Modules/ Rectifier Module / Semiconductor Rectifier Module (MDK25A-110A)
We manufacture Power Modules includes Common Thyristor Modules, Rectifer Diode Modules, Fast Thyristor, Rectifier Tube and Mixed Modules, Single-phase, Three-phase Bridge Modules For Welder Using. Modules for Single-phase and Three phases Bridge, and Bridge Rectifier and so on.
Power Modules/ Modules/ Rectifier Module / Semiconductor Rectifier Module (MDK25A-110A)
1. Electrically- isolated chip and baseboard, AC 2500V
2. Sealing according to International Standard
3. Full crimping structure, sensitive to temperature and power cycle duty
4. Below 350A are AIR-COOLING
Above 400A can be AIR-COOLING OR water-cooling
5. Easy installation and maintenance
6. Small and Light
7. Welding technique under the protection of vacuum and hydrogen gas
TYPICAL APPLICATIONS:
UPS
Light-dimmer
Industrial Heating Controller
Non-contact Switch
AC/DC Motor Controls
Various Rectifying Power Supplies
Soft Start
Welder and Converter
Battery Charge and Discharge
| Type | Common Thyristor Module |
| Model | MTC, MTK, MTA, MTX |
| Output Current | 25A, 55A, 70A, 90A, 110A |
| Insulation Voltage | 2500VAC |
| Vdrm/Vrrm | 400-2600V |
| Trigger Voltage | ≤2.5V |
| Trigger Current | ≤100mA |
| Tjm | 125ºC |
Xinling Electrical Co., Ltd. China was established in 1990. The company has 9 sub-branches, more than 100 cooperation units, and 100 direct distributors, 1000.00m2 factory area and 1000 stuffs.
The company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, itsstreng thens the management or enterprise and promotes product quality. The company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling --- will create a magnificent tomorrow together with you!
