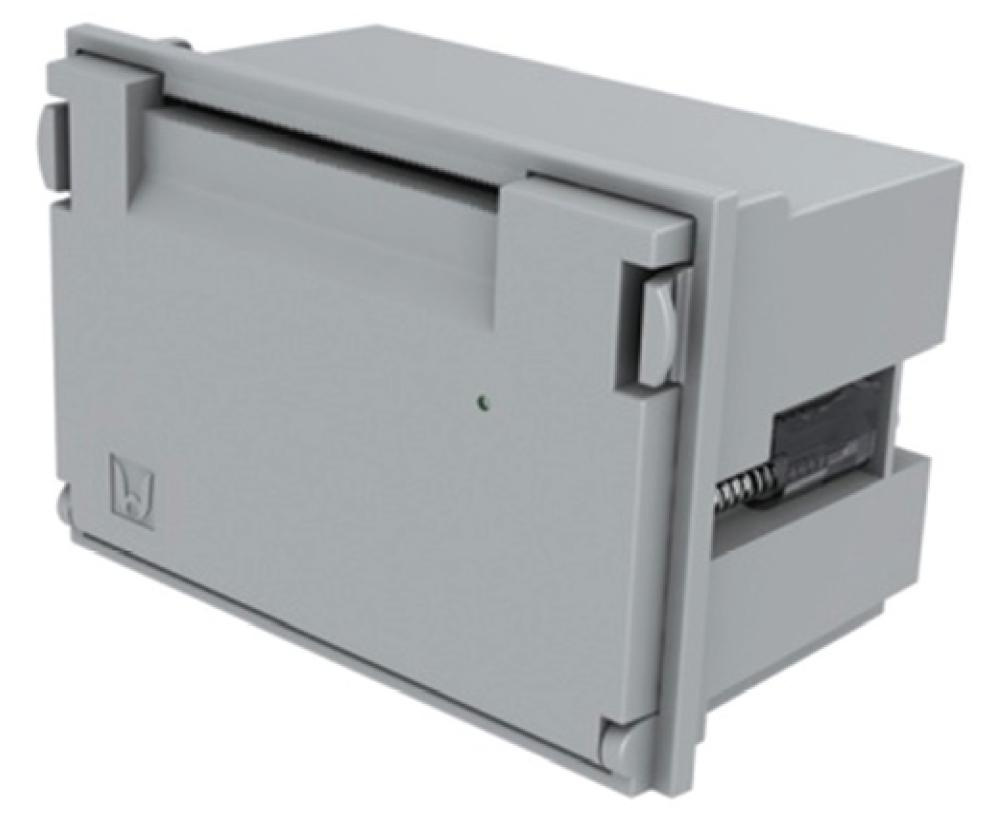

Compact DOT Matrix Printer

Product Specifications

Prod Model:	WH-E29
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Printing Method:	DOT Matrix Printing Method
Resolution Ratio:	96 Dots/Line
Character Per Line:	16
Print Speed:	1line/Sec
Character Size:	6*12 Dots
Chinese Character Library:	GB2312, 12X12dots
Outline Dimension:	90mm*53.2mm*61.4mm
Input Power:	DC 5V /9V-24V, 10W
Paper Supplied:	44mm Width, 30mm Diameter
Interface:	Serial RS232c/Ttl/485
Usage:	Receipt Printer
Type:	Dot-matrix
Style:	Black and White
Interface Type:	Serial RS-485/Ttl
Max. Paper Size:	44 Mm

Product Description

Beijing Bright Technology Development Co, Ltd. was established in 1998. It is a high technology manufacturer which is specialized in research, design, production and sales of Micro printers. The Headquarter is in Shangdi information industry base(Brilliant International), zhong guan cun Beijing, which is located in the key Science and Technology Park. We also have professional direct selling service network in Beijing, Shanghai, Hangzhou, Shenzhen, Guangzhou and other big cities in China. The production capacity of Micro printer is more than 500, 000 sets per year, and the flexible production capacity could be 1000, 000; Its overall business scale can rank the industry forefront and fully meet the growing demand for domestic and foreign customers.

WH-E29
Item	Specification
Printing method	Dot matrix printing method
Paper width	44 mm
Print width	33.6 mm
Resolution ratio	96 dots/line
Character per line	16
Printing speed	1 line/sec
Character Size	6x12dots
Chinese character library	GB2312(12x12dots)
Outline dimension(WxHxD mm)	90mm×53.2mm×61.4mm
Installation dimension(WxH mm)	84.5mm(W)×56.5mm(H)
Inlaid Deepness	45.2mm
Paper supplied	Plain paper roll (44mm width,30mm diameter)
Interface	Serial RS-485/TTL
Input Power	DC 5V /9V-24V, 10W
Operating temperature	0° C~ 50° C
Storage temperature	-20° C~ 60° C
Operating humidity	10% ~ 85%
Storage humidity	10% ~ 90%
