Taian Modern Heavy Industries Technology Co., Ltd. >> Compact Loader Xd936plus

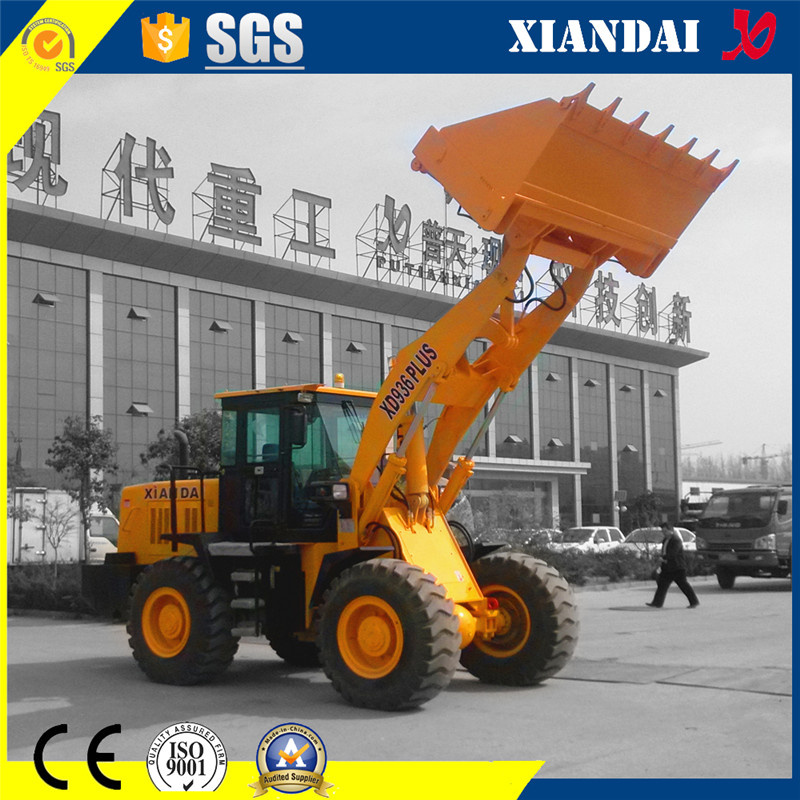

Compact Loader Xd936plus

Name: Compact Loader Xd936plus
Brand: china-manufacturer-directory.com
SKU: 701459752
Availability: InStock
Rating: 4.7 (39 reviews)

Supplier:	Taian Modern Heavy Industries Technology Co., Ltd.
Price:	US $ 24500-31000unit
Min Order:	1unit
Quantity::
Trade Terms:	FOB,CIF,DAP

Product Specifications

Prod Model:	XD936PLUS
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Bucket Capacity (M3 ):	1.9
Rated Load (T):	3.0
Operation Weight (T):	10.0
Overall Dimension (L×w×h Mm):	714024003120
Max. Dumping Height(Mm):	3260-4500
Engine Model:	Deutz Wp6g125e23 High Cost-Effective
Engine Type:	6 Cylinders, in-Line, Water-Cooling, 4-Stroke
Rated Power(Kw):	92
Total Exhaust Of Cylinder(L):	6.5
Size Of Tire:	17.5-25
Type:	Medium-sized Loader
Walking Mode:	Wheeled
Load And Unload Method:	Front Discharge
Certification:	SGS
Condition:	New

Product Description

SEARCH to view more of us!

+86 15066729032 (24*7 Hours online)

MORE VIDEOS ON
YouTube: : https://www.youtube.com/channel/UCFiP4yMEeM9-yXady9AzIsg/videos

Official Website: www.taxdzg.com

I.Features&Benefits
1. Adopting SHANTUI BLD 4208 gearbox,as same as auto gearbox, make it more easy to control.
2. Adopting bumping bag spring seat to let drivers feel more comfortable.
3.Low-pressure, wide base tires have been adopted to achieve excellent off-road function.
4. With the highest dumping height 3.26m which can meet most kinds of truck's loading. 1 m More higher if use 4 in 1 bucket.
5. DEUTZ engine adopted.more power and reliable.
6.ROPS&FOPS cabin.
7.A/C+Joystick+Quick coupler.
II.Specifications

Model			XD936PLUS
Main specifications
Bucket capacity (m3 )			1.9
Rated load (t)			3.0
Operation Weight (t)			10.0
Lifting time of the arms (s)			≤6
The sum of three items(s)			≤11
Forward gear(km/h)			I 0-7.0 II 0-12.5 III 0-21 IV 0-35
Reverse gear(km/h)			I 0-14 II 0-25
Max. climbing gradient (°)			30°
Dimensions
Overall dimension (L×W×H mm)				7140×2400×3120
Wheel base (mm)				2600
Wheel tread(mm)				1800
Max. dumping height(mm)				3260-4500
Dumping reach (mm)				≥1180
Diesel engine
Engine model	Deutz WP6G125E23
Engine type	In-line,water-cooling,4-stroke,6 cylinders, direct-injection
Rated power(kw)	92
Rated speed (r/min)	2300
Total exhaust of cylinder(L)	6.5
Type of starting	Electric start
Transmission system
Torque converter
Model	YJ315
Type	Single stage, three elements
Gearbox
Model	BLD4208
Type	Fixed counter-shaft, Full power-shift
Axle and tire
Type of main reducer	Spiral bevel gear,single stage
Type of final reducer	Single stage planetary
Size of tire	17.5-25
Working device of hydraulic system
Model of working pump		CBG2100
Nominal displacement(ml/r)		100
Working system pressure(Mpa)		20
Multi-way directional valve		DF25.2
Rated flow(L/min)		160
Steering system
Type	Load-sensing hydraulic steering
Displacement(ml/r)	55
Max input pressure(Mpa)	11
Brake system
Type of traveling brake	Air over hydraulic brake
Type of parking brake	Band brake

III.Quotation
FOB Qingdao US$ 24500~31000
IV. Optional Attachments:

China made DEUTZ engine+US$500	Air-conditioning+US$900
China made CUMMINS engine +US$4,000	Wood Grabber +US$3200
China made LOVOL PERKINS (Europe IIIA&EPA Tire III) +US$4,800	Joystick Control +US$900
Quick Coupler+US$900	Grass Grabber +US$3200
Rops&Fops Cabin+US$1,000	Fork+US$900
4 in 1 bucket+US$1,700	Sweeper+US$3,300

V. Payment terms & Delivery time &Guarantee time
1.Payment Terms:By TT. 30% deposit paid in advance, 70% balance paid before goods dispatching from the factory;
2.Delivery Time:within 20 days after receiving deposit;
3.Guarantee Time:one year or 1500 working hours which comes first after the date of B/L;
4.Shipping : 1 unit one 40HQ container;

Taian Modern Heavy Industries Technology Co., Ltd is a corporation that focuses on wheel loader and skid steer loader in terms of research and development, manufacture and sales since 1998. With years of development, the company has got two factory areas with 200000 square meters, more than 60 untis processing equipment and 150 professional workers. Our company has expanded industrial scale of producing many kinds of products and annual output hasreached about 3000 sets, among 300 units were sold to Brazil, Vietnam, Latvia, Turkey, Australia, Newzealand, Norway, Russia, Sudan etc. We adopt China famous brand YUCHAI, WEICHAI, XICHAI, YTO engine, also HYUNDAI, BRIGGS&STRATTON, COMMINS, DEUTZ worldwide famous engine to meet various requirements from various markets. According to customers actual requirement, the company can develop scores of types of products such as high-dump loader, ultra-low loader for tunnel, wood grabber, grass grabber, fork loader and off-road loader etc. Regarding science and technology as the leading factor, the company performs advanced quality-monitoring framework of production step by step, perfect meshwork of marketing, its production capicity has increased year by year. The company obtained ISO9001: 2008 certificate, wheel loader and skid steer loader got Europe CE certificate, CE noise certificate and Rops&Fops cabin certificate.

We will perform modern product of high quality by taking the technological faith, then conssummate service system and cooperate with spacious customer genuinely to try for mutual development.
