Product Specifications
| Prod Model: |
SDA Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bore: |
12/16/20/25/32/40/50/63/80/100 |
| Material: |
Aluminum |
| Structure: |
Piston Cylinder |
| Standard: |
Standard |
| Pressure Direction: |
Double-acting Cylinder |
| Power: |
Pneumatic |
Product Description

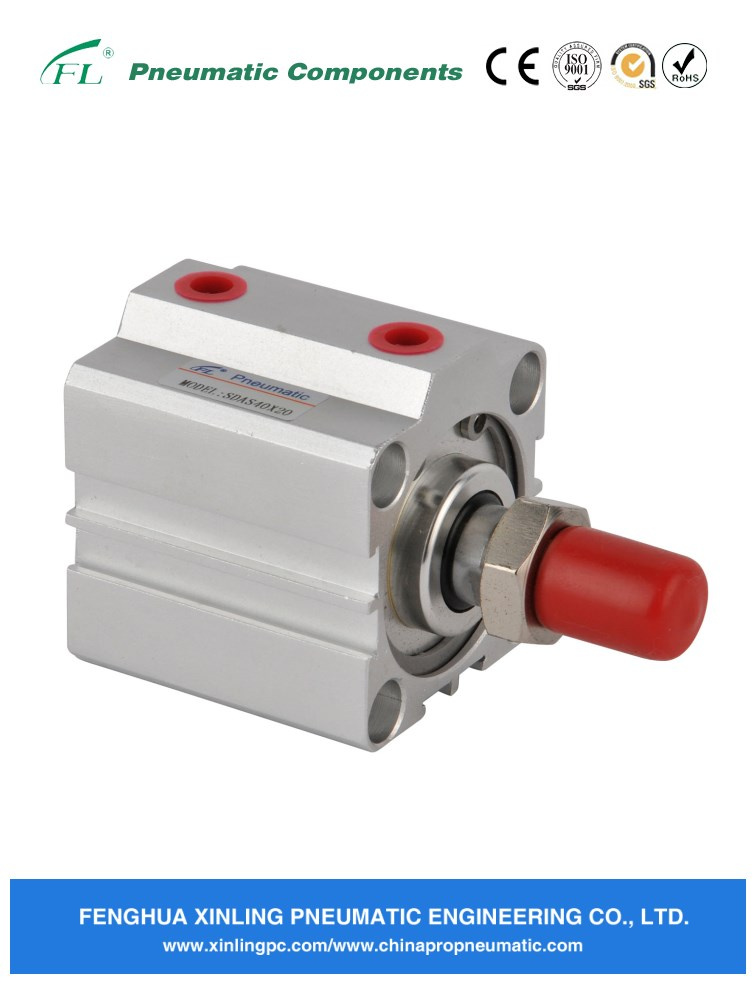

Product Name: SDAJ Seires Compact CylindersProduct Features of
SDAJ Series Compact Cylinders:
1.
Adjustable stroke Type compact cylinders2. Compact Structure can effectively save installation space.
3. Various sizes of cylinders and mounting accessories for your choice
4. high quality and competitive price
The medium used by the cylinder must be fitlered to 40μm or below

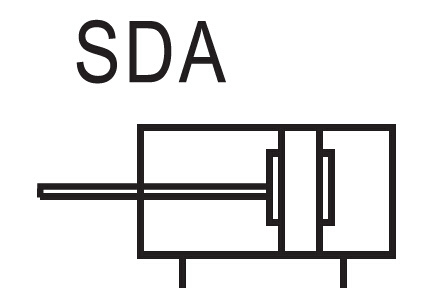

Symbol of Airtac Adjustable Stroke Compact Cylinders-SDAJ Thin Type Air Cylinders:
Specification of Airtac Adjustable Stroke Air Cylinders-SDAJ Compact Cylinders:
| Bore | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Operation Type | Double Acting |
| Single Acting Push Type, Single Acting Pull Type | - |
| Working Medium | Air |
| Pressure Range | Double Acting Type | 0.05Mpa--0.85Mpa(7.3--123Psi) |
| Single Acting Type | 0.2Mpa--0.85Mpa(29--123Psi) |
| Proof Pressure | 1.05MPa(150psi) |
| Working Temperature | 0--70ºC |
| Working Speed Range | Double Acting Type | 30--500 mm/s | 30--350 mm/s | 30--250 mm/s |
| Single Acting Type | 100--500 mm/s | - |
| Port Size | M5X0.8 | G1/8 | G1/4 | G3/8 |
Stroke of China Adjustable Stroke Compact Cylinders-SDAJ Thin Type Air Cylinders:
| Bore | 12 | 16 | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 |
| Double Acting | Without Magnet | 5--60mm Classified every 5mm | 5--85mm Classified every 5mm | 5--90mm Classified every 5mm/100--110mm Classified every 5mm | 5--90mm Classified every 5mm/100--130mm Classified every 5mm |
| With Magnet | 5--50mm Classified every 5mm | 5--75mm Classified every 5mm | 5--90mm Classified every 5mm/100mm Classified every 5mm | 5--90mm Classified every 5mm/100--120mm Classified every 5mm |
| Single Acting | Without Magnet | 5--30mm Classified every 5mm | 5--30mm Classified every 5mm | 5--30mm Classified every 5mm | 5--30mm Classified every 5mm |
| With Magnet | 5--30mm Classified every 5mm | 5--30mm Classified every 5mm | 5--30mm Classified every 5mm | 5--30mm Classified every 5mm |
| Max. Stroke | 60mm | 100mm | 120mm | 130mm |

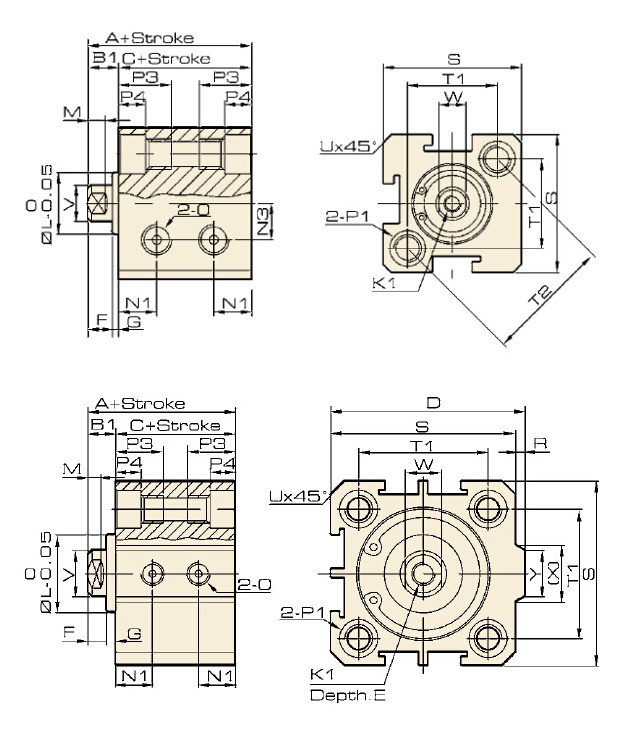

Dimension of SDA Series Pneumatic Cylinders:
| Type | Standard | With Magnet | D | E | F | G | K1 | L | M | N1 | N2 | O |
| Bore/Symbol | A | B1 | C | A | B1 | C |
| 12 | 22 | 4.5 | 17.5 | 32 | 5 | 27 | - | 6 | 4 | 1 | M3X0.5 | 8 | 2.8 | 6.3 | 6 | M5X0.8 |
| 16 | 24 | 5.5 | 18.5 | 34 | 5.5 | 28.5 | - | 6 | 4 | 1.5 | M3X0.5 | 10 | 2.8 | 7.3 | 6.5 | M5X0.8 |
| 20 | 25 | 5.5 | 19.5 | 35 | 5.5 | 29.5 | 36 | 8 | 4 | 1.5 | M4X0.7 | 15 | 2.8 | 7.5 | - | M5X0.8 |
| 25 | 27 | 6 | 21 | 37 | 6 | 31 | 42 | 10 | 4 | 2 | M5X0.8 | 17 | 2.8 | 8 | - | M5X0.8 |
| 32 | 31.5 | 7 | 24.5 | 41.5 | 7 | 34.5 | 50 | 12 | 4 | 3 | M6X1 | 22 | 2.8 | 9 | - | G1/8 |
| 40 | 33 | 7 | 26 | 43 | 7 | 36 | 58.5 | 12 | 4 | 3 | M8X1.25 | 28 | 2.8 | 10 | - | G1/8 |
| 50 | 37 | 9 | 28 | 47 | 9 | 38 | 71.5 | 15 | 5 | 4 | M10X1.5 | 38 | 2.8 | 10.5 | - | G1/4 |
| 63 | 41 | 9 | 32 | 51 | 9 | 42 | 84.5 | 15 | 5 | 4 | M10X1.5 | 40 | 2.8 | 11.5 | - | G1/4 |
| 80 | 52 | 11 | 41 | 62 | 11 | 51 | 104 | 16 | 6 | 5 | M14X1.5 | 45 | 4 | 14.5 | - | G3/8 |
| 100 | 63 | 12 | 51 | 73 | 12 | 61 | 124 | 18 | 7 | 5 | M18X1.5 | 55 | 4 | 20.5 | - | G3/8 |
| Bore/Symbol | M | P3 | P4 | R | S | T1 | T2 | U | V | W | X | Y |
| 12 | Double Side: Φ6.5 Cog:M5x0.8 Through Hole:Φ4.2 | 12 | 4.5 | - | 25 | 16.2 | 23 | 1.6 | 6 | 5 | - | - |
| 16 | Double Side: Φ6.5 Cog:M5x0.8 Through Hole:Φ4.2 | 12 | 4.5 | - | 29 | 19.8 | 28 | 1.6 | 6 | 5 | - | - |
| 20 | Double Side: Φ6 Cog:M5x0.8 Through Hole:Φ4.2 | 14 | 4.5 | 2 | 34 | 24 | - | 2.1 | 8 | 6 | 11.3 | 10 |
| 25 | Double Side: Φ8 Cog:M6x1.0 Through Hole:Φ4.6 | 15 | 5.5 | 2 | 40 | 28 | - | 3.1 | 10 | 8 | 12 | 10 |
| 32 | Double Side: Φ8 Cog:M6x1.0 Through Hole:Φ4.6 | 16 | 5.5 | 6 | 44 | 34 | - | 2.15 | 12 | 10 | 18.3 | 15 |
| 40 | Double Side: Φ10 Cog:M8x1.25 Through Hole:Φ6.5 | 20 | 7.5 | 6.5 | 52 | 40 | - | 2.25 | 16 | 14 | 21.3 | 16 |
| 50 | Double Side: Φ11 Cog:M8x1.25 Through Hole:Φ6.5 | 25 | 8.5 | 9.5 | 62 | 48 | - | 4.15 | 20 | 17 | 30 | 20 |
| 63 | Double Side: Φ11 Cog:M8x1.25 Through Hole:Φ6.5 | 25 | 8.5 | 9.5 | 75 | 60 | - | 3.15 | 20 | 17 | 28.7 | 20 |
| 80 | Double Side: Φ14 Cog:M12x1.75 Through Hole:Φ9.2 | 25 | 10.5 | 10 | 94 | 74 | - | 3.65 | 25 | 22 | 36 | 26 |
| 100 | Double Side: Φ17.5 Cog:M14x2 Through Hole:Φ11.3 | 30 | 13 | 10 | 114 | 90 | - | 3.65 | 32 | 27 | 35 | 26 |

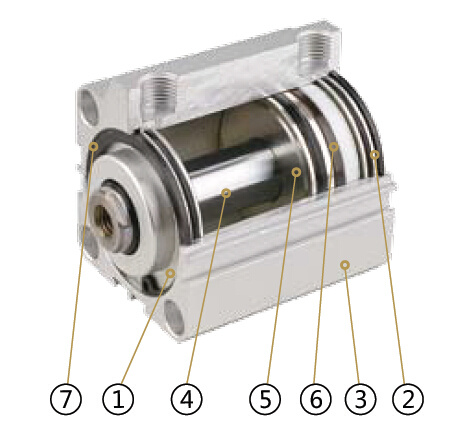

Structure of SDA Thin Type Cylinder:
| No. | Name | Material |
| 1 | Front Cover | Hard Anodised Aluminum |
| 2 | Back Cover | Anodised Aluminum |
| 3 | Barrel | Hard Anodised Aluminum |
| 4 | Piston Rod | Chromed Carbon Steel |
| 5 | Piston | Aluminum |
| 6 | Magnet | Plastic |
| 7 | Clip | Carbon Steel |
| 8 | Piston Rod Seal | NBR |
| 9 | Piston Seal | NBR |
| 10 | Cover Seal | NBR |
