Shanghai Galaxy International Trade Co., Ltd. >> Compatible Lemo Push-Pull Self-Latching Watertight Multipole Connectors 1k Series 2 Pin Fgg Egg IP66

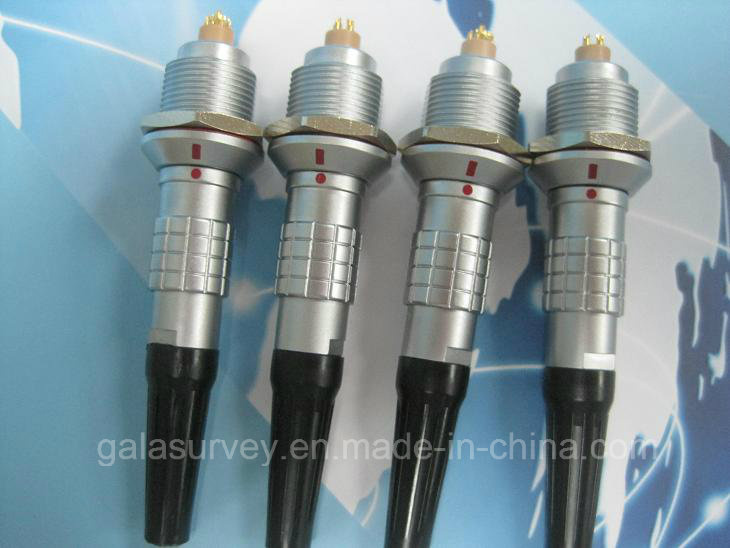

Compatible Lemo Push-Pull Self-Latching Watertight Multipole Connectors 1k Series 2 Pin Fgg Egg IP66

Name: Compatible Lemo Push-Pull Self-Latching Watertight Multipole Connectors 1k Series 2 Pin Fgg Egg IP66
Brand: china-manufacturer-directory.com
SKU: 692477322
Availability: InStock
Rating: 4.5 (20 reviews)

Supplier:	Shanghai Galaxy International Trade Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	FGG. 1K. 302. CLAC65Z / EGG. 1K. 302. CLL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gender:	Male and Female
Ingress Protection:	IP66 to 68
Multipole:	2-32 Pins
Cable Assembly:	for Cable ø 1 to 23.5 Mm

Product Description

Main features of substitute lemo K series connection:
1. Smart push-pull self-latching system;
2. Multicore types with 2 to 32 pins;
3. Solder,crimp or PCB contacts (straight and elbow);
4. High packing density for space saving;
5. Different kinds of keying options to avoid mismatching;
6. 360 degree screening for full EMC shielding;
7. Waterproof connecter (IP66 to 68);
8. Rugged housing for extreme working conditions.
9. Keying system(G is standard key) for connector alignment.

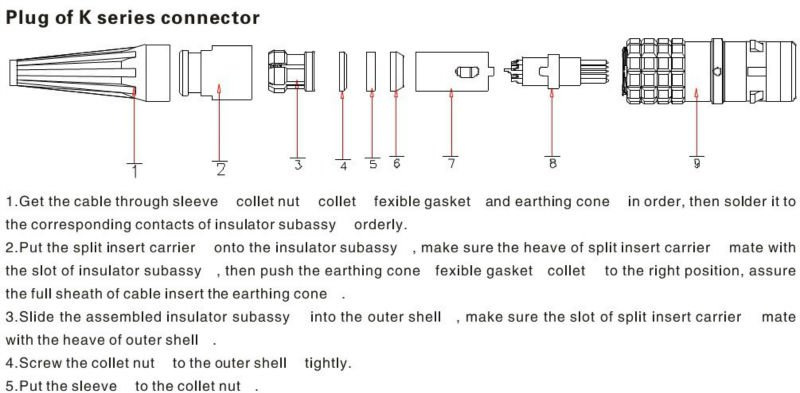

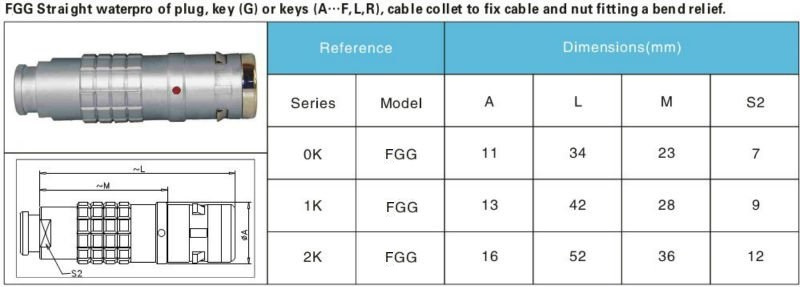

Straight plug with sleeve
FGG.1K.302.CLAC65Z: 1K Series straight plug, keys fixing(G), multi-contact of 2pins, chrome plated brass shell, PPS insulator, solder male contact , apply to cable diameter of 6.0 mm

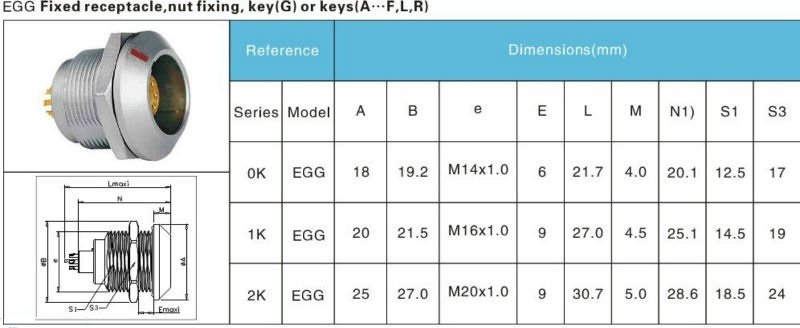

Fixed receptacle
EGG.1K.302.CLL: 1K Series fixed receptacle, fixed inside of case with nut, key fixing(G), multi-contact of 2 pins. chrome plated brass shell, PPS lengthen insulator, solder female contact

Product Name	lemo Model	Galaxy Model
1K2pin plug	FGG.1K.302.CLAC**Z	GL-FGG.1K.302.CLAC**Z
1K3pin plug	FGG.1K.303.CLAC**Z	GL-FGG.1K.303.CLAC**Z
1K4pin plug	FGG.1K.304.CLAC**Z	GL-FGG.1K.304.CLAC**Z
1K5pin plug	FGG.1K.305.CLAC**Z	GL-FGG.1K.305.CLAC**Z
1K6pin plug	FGG.1K.306.CLAC**Z	GL-FGG.1K.306.CLAC**Z
1K7pin plug	FGG.1K.307.CLAC**Z	GL-FGG.1K.307.CLAC**Z
1K8pin plug	FGG.1K.308.CLAC**Z	GL-FGG.1K.308.CLAC**Z
1K10pin plug	FGG.1K.310.CLAC**Z	GL-FGG.1K.310.CLAC**Z
1K14pin plug	FGG.1K.314.CLAC**Z	GL-FGG.1K.314.CLAC**Z

1K2pin socket(free)	EGG.1K.302.CLL	GL-EGG.1K.302.CLL
1K3pin socket(free)	EGG.1K.303.CLL	GL-EGG.1K.303.CLL
1K4pin socket(free)	EGG.1K.304.CLL	GL-EGG.1K.304.CLL
1K5pin socket(free)	EGG.1K.305.CLL	GL-EGG.1K.305.CLL
1K6pin socket(free)	EGG.1K.306.CLL	GL-EGG.1K.306.CLL
1K7pin socket(free)	EGG.1K.307.CLL	GL-EGG.1K.307.CLL
1K8pin socket(free)	EGG.1K.308.CLL	GL-EGG.1K.308.CLL
1K10pin socket(free)	EGG.1K.310.CLL	GL-EGG.1K.310.CLL
1K14pin socket(free)	EGG.1K.314.CLL	GL-EGG.1K.314.CLL
