Product Specifications
| Prod Model: |
CBB80-6 |
| Type: |
Polyester Film Capacitor |
| Package Type: |
Through Hole |
| Application: |
Air Conditioner |
Product Description

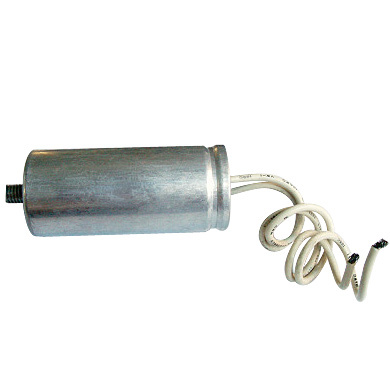

A. C. Metalized Polypropylene Capacitor
Features and use:
This product is characterized by its smallness, long life-span, good Self-healing characteristic and safe anti-explosion net as its dielectric layer. It is special for grille lamp, and is ideally energy-saving.
Technical features:
Climate types: 40/70/21
Capacity volume variance: +5%, -5%
Testing voltage:
Between leading-out ends: 1.75UR, 10S no breakdown
Between leading-out end and shell: 2200VAC, 10S no breakdown
Insulation resistance:
Between leading-out ends: ≥ 3000MΩ . MF
Between leading-out end and shell: ≥ 1000MΩ
Loss tangent: Tgδ ≤ 0.002(50Hz)
Specifications: Can be supplied according to the customers' special need.
WENLING HANDING ELECTRIC CO., LTD. owns number of automatic production processing lines and specializes in manufacturing CBB series capacitors. Products have been exported to countries in Europe, North & South America and Southeast Asia.
Products have various merits such as high resistance of electricity, low loss of dielectric, long life and etc. The company has been furnished with high performance production lines and specialized inspection equipments from the domestic and abroad. The products have been qualified for obtaining following certification including UL, CSA, VDE, TUV, CE, CB, CQC, SGS. Our quality control has strictly carried out ISO9000 Quality Control System Standard.
We have fully accomplished technology superiority and quality services. While dealing with dealers, suppliers and customers, all of our efforts are merged into one whole process to win high turn-over and build up mutual benefit, establishing long term relationships and seeking development forever.
