Complete Automatic Drinking Pure Water Filling and Packing Line

Product Specifications

Prod Model:	CGF
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Materil:	SUS304
Capacity:	1000-18000 Bph
Volume:	0.1-2L
Model:	Cgf
Labeling01:	Automatic Sleeve Labeling Machine
Labeling02:	Automatic Ashesive Labeling Machine
Final Packing:	Automatic Film Shrink Packing Machine
Automatic Grade:	Automatic
Structure:	Rotary
Feed Cylinder Structure:	Single-Room Feeding
Material Type:	Liquid
Filling Valve Head:	Multi-Head
Packaging Type:	Bottle
Filling Principle:	Gravity Filling
Type:	Gravity Filling Type
Packaging Container Lifting Structure:	Gripper
Dosing Device:	Induction
Packaging Material:	Wooden Case

Product Description

                                   Complete Automatic Drinking Pure Water Filling and Packing Line

King machine water/juice/wine/beverage production line is professional and popular,customers from all over the world came to our factory and plan their beverage business with us.We equipped the high quality machines in every system.

Nowadays,more and more people are thinking about to start the water business every place all over the world,especially in Africa.It is a smart idea to start the water business,low cost,big profit.and it will grow very fast.
Our customers who buy our water production machine,have grown from a small water facotory to the main water supplier in local place with just 4 years.
We sincerely expect our cooperation~

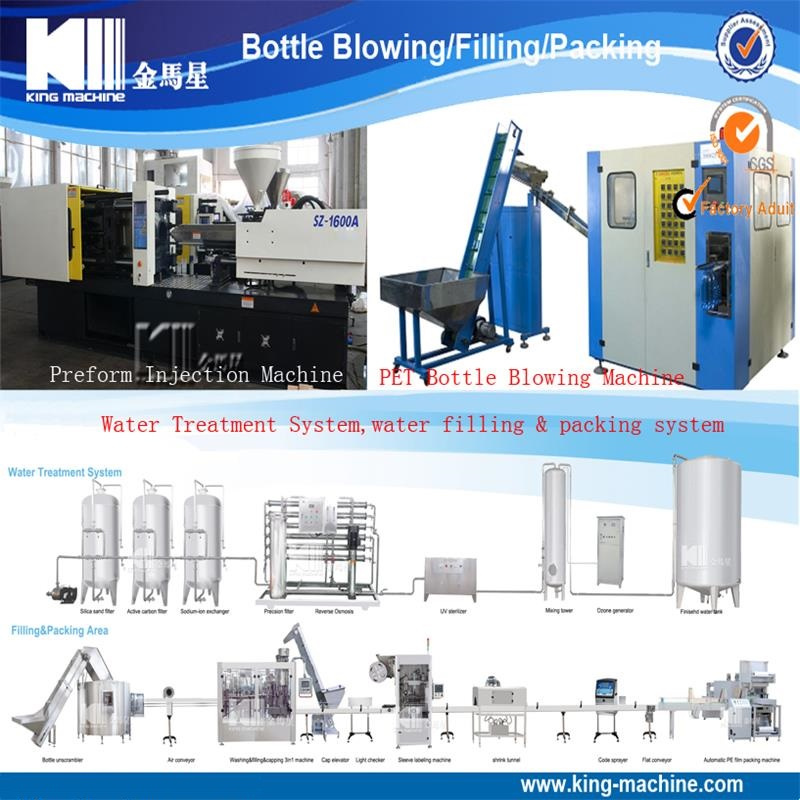

Water Production Line Details

1.PET preform and PE cap injection machine
To produce the PET preform for bottle blowing at next step.And it can also make PE caps and be used on the filling machine.
If you have other plastic product you want to produce,you may also use this machine,like plastic toys,tools,food box,forks and spoons,etc.

2.PET bottle blowing machine
Blow and form the PET bottle from the preform,prepare bottles for the filling line.
We have different model for both automatic blowing machine and semiautomatic machine,different capacity from 300-13000 bottle/hour.To meet the requirement of filling machine.

3.Water purifying system
To purify the water from the source,make the water clean and meet the drinking water standard.
-1.Water filters
To purify the water and remove the main bad material from water.
-2.Reverse Osmosis machine
To remove almost 98% unneeded substance from water,to make it pure enough.
-3.UV sterilizer
Further to kill the bad micro in the water.
-4.O-zone generator
-5.Finish water tank

4.water filling and packing line
To finish the bottle filling and packing in one line.
-1.3 in 1 bottle filling and capping machine
The CGF model filling machine is the most popular model in the beverage filling business,3 in 1 filling machine combines bottle washing,filling and capping together,the whole set of machine become stable and efficient.
Different model has different capacity from 500-18000 bottles.
-2.Bottle labeling machine
To put the label on the bottle automaticly or manually.Then shrink the label to make it nice looking.
Different model has different capacity to follow the production of filling machine.
-3.Bottle coding machine
To print the manufacturing date and other information on bottle body or cap.
-4.Bottle wrapping and packing machine
Make the bottles into one pack,4*3,5*4 etc.as customer needs.

Flow Chart
PET preform and cap injection making machine → PET bottle blowing machine →PET bottles
Water pump → Silica filter→ Active Carbon filter→ Sodium-ion exchanger→ Precision filter→ Reverse osmosis→ UV sterilizer→ Ozone sterilizer→ Finish water tank
→ bottle unscrambler→ 3 in 1 water filling machine( cap elevator)→ Light checker→ Drying machine→ Labeling machine→ Shrink film wrapping machine

Product Catalog
For water filling system,different model has different production capacity,base on the needs and request from our customer,we recommend the most suitable model for their business starting.

	Capacity(base on 500ml bottle)	Volume
CGF6-6-1	500bph	0.1-2L
CGF14-12-4	2500bph	0.1-2L
CGF16-16-5	3500bph	0.1-2L
CGF18-18-6	5000-6000bph	0.1-2L
CGF24-24-8	10000-12000bph	0.1-2L
CGF32-32-10	13000-15000bph	0.1-2L
CGF40-40-10	16000-18000bph	0.1-2L

-----------------------------------------
Factory visiting
We sincerely expecting and welcome your visiting to our factory if when you planed a business trip
1.we will show you the machine in our factory,so you can see the real quality of our machine
2.we will show you a guiding of the whole projection of water production line.
3.we can talk on the project design and price further face to face.
4.we will set up the factory layout for you,to help you start your business quickly.

----------------------------------------
Installation
After the machine arrived in your factory,we will have our engineers to your factory,to install all the machines for you,it will take about 20-30 days.

----------------------------------------
After sale service
Once your machine have any problem you can not solve,we will send our engineers as soon as possible,to avoid financial lost.

----------------------------------------
