Description of the complete automatic juice beverage production line/machinery

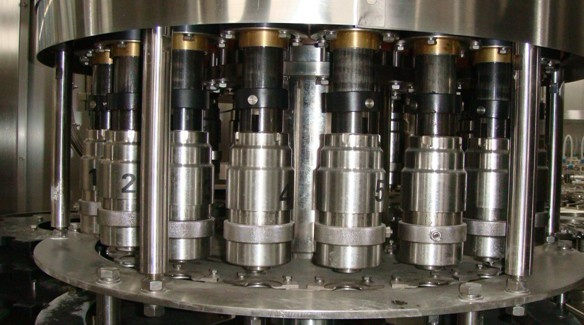

The juice hot filling machine is mainly used for beverage filling operations. This machine has three functions of bottle washing, filling and sealing. The whole process is used for filling juice, mineral water and pure water in bottles made of polyester and plastic. Application components for bottle adjustment are much simple and efficient to use. Using a new type of micro-pressure gasoline for faster and more stable filling, Compared with same specifications of similar machinery, it is of higher efficiency. The system adopts advanced Omron programmable controller (PLC) to control the operation; Chain conveyor for bottles uses transducer controller, and the bottle mainframe transducer interface is more stable with reliable operation
First part: Water treatment system
Second part: Juice drink mixing system
Third part: Filling and packing line
This 3-in-1 hot filling system is sued for filling tea, juice and functional drinks,
The mate rial of the bottles can be PET, glass and so on, the function of fluent and fast
Filling action high filling precision, reliable capping and low mate rial loss makes it
Effectively prevent secondary pollution of the neck with high automation in the whole
Process it can achieve the replacement of different bottles only by exchanging equivalent parts.
This system can also from complete set of production line with the other related system
Providing proposals for full set of hot filling
|
Model |
CGF 14-12-6 |
CGF 16-16-6 |
CGF 18-18-6 |
CGF 24-4-8 |
CGF 32-32-10 |
CGF 40-40-10 |
|
Production capacity (BPH)500ml |
3000 |
4000 |
5000 |
8000-10000 |
10000-12000 |
13000-15000 |
|
Applicable bottle type |
Bottle diameter: 50-100mm.height:150-320mm,volume :330ml-1500ml |
|
Applicable cap shape |
Plastic screw cap |
|
Gas source pressure(Mpa) |
0.6 |
Gas consumption
(m³/min) |
0.2 |
0.2 |
0.4 |
0.4 |
0.5 |
0.55 |
|
Total power(kw) |
4.6 |
4.6 |
5.4 |
6.4 |
8.07 |
9.56 |
|
Total weight(kg) |
2500 |
3200 |
3800 |
5200 |
6500 |
8000 |
Dimension
(WXHXH)mm |
2350X1700X2150 |
2600X1830X2030 |
2830X2020X2030 |
3200X2300X2600 |
3450X2510X2710 |
3800X2800X2710 |
Zhangjiagang City JiaYu Machinery Co. Ltd located by the side of Yujia Bridge Jinfeng Town Zhangjiagang City. Our company is one specialized in producing liquid filling machinery manufacturer. We insisted that take the market as the guidance, the quality as the important line. We have established perfect quality system certification and outfitted consummate experiment with test facility. We own a high quality development group and manufacturing stuff with two senior engineers, four engineers and ten technicians.
The products we supply have pure water, mineral water treatment equipment, drinking water bottle & barrel filling machine, carbonated drink filling machine, aseptic cold filling machine and hot filling machine etc. Especially model QGF SERIES barreled filling production. Also we can offer the craft consultation, the workshop plane layout, installation and trial running and the technical training. Our products has been sold everywhere in our country, also Russia and some MID-east countries.
We are willing to establish business relations with our high quality products and perfect service with you.
Welcome to visit our company and give your instruction!
