Product Specifications
| Prod Model: |
CGF18-18-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Name: |
Complete Automatic Mineral Water Processing Machin |
| Capacity: |
7000-8000bph |
| Material: |
Stainless Steel |
| Suitable Bottle: |
Plastic Bottle |
| Bottle Size: |
0.3-2L |
| Control: |
PLC Ortouch Screen |
| Operation: |
Easy and Stable |
| Quality: |
High/ Guarantee |
| Certificate: |
CE/ ISO/SGS |
| Warranty: |
One Year for Spare Parts |
| Automatic Grade: |
Automatic |
| Filling Principle: |
Pressure |
| Structure: |
Rotary |
| Feed Cylinder Structure: |
Single-Room Feeding |
| Material Type: |
Liquid |
| Type: |
Count Filling Machine |
| Filling Valve Head: |
Multi-Head |
| Packaging Container Lifting Structure: |
Chute Lifting |
| Packaging Type: |
Bottle |
| Dosing Device: |
Surface Type |
| Packaging Material: |
Plastic |
Product Description

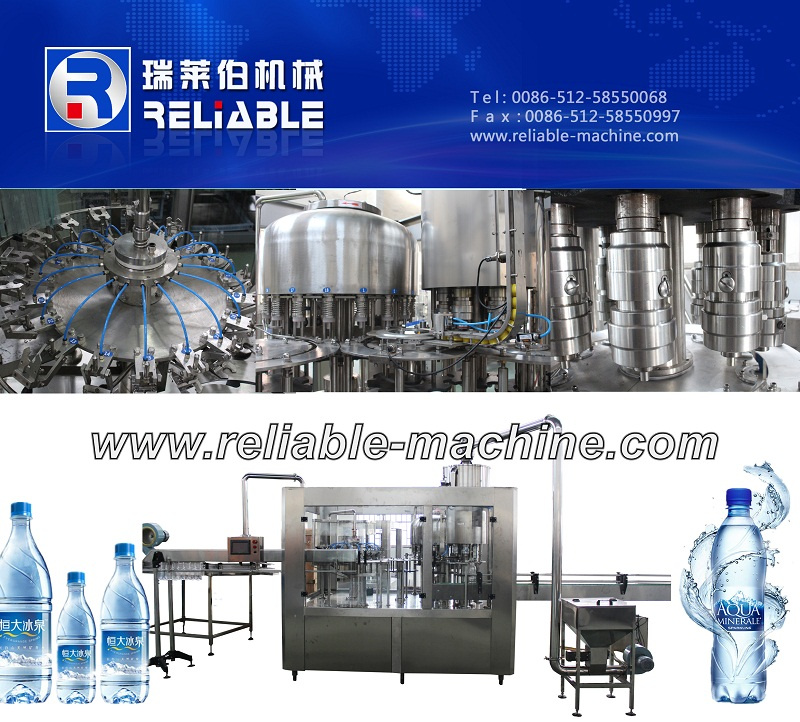

Complete Automatic Mineral Water Processing Machine/Equipment/Machinery
Parameters
| model | CGF18-18-6 |
| washing no | 18 |
| filling no | 18 |
| capping no | 6 |
| capacity(500ml) | 7000-8000 |
| rated capacity(kw) | 4 |
| overall size | 2650*1900*2400 |
| weight | 3t |
| voltage | 380v |
Complete Automatic Mineral Water Processing Machine/Equipment/Machinery
brief introduction
1. CGFA series washing,atmospheric pressure filling and capping three in one monoblock machine is one new equipment with many years experience in washing,filling and capping,adopting ideas from different customers and foreign advanced technology.
2. It can meet customers' demand that different size bottles can be operated in one filling machine,using hanging bottleneck manipulator makes change the bottle more convenient and quicker.
3. Enable the air convey the bottle automatically,rinsing,drying,filling,cap unscramble,under cap,screw cap automatically.
4.The full machines adopt the frequency conversion system,the speed can be adjusted without limit to make the operation of equipment more convenient and easier.mainly used for no-carbonated beverage (pure water,mineral water)washing,filling and capping.
Complete Automatic Mineral Water Processing Machine/Equipment/Machinery
inside details
Washer Station:
All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
304 stainless steel washing pumps
Filler Station:
The filling station using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle together with vacuum pump regurgitant system, to ensure the high filling precision, ensure same filling level
Filling temperature is adjustable.
Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.
All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
Capper station:
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304stainless steel construction
No bottle no capping,
Automatic stop when lack of caps
Complete Automatic Mineral Water Processing Machine/Equipment/Machinery
something you want to know
Q1:What kinds of product you supply?
A1:Beverage filling machine for water,juice and carbonated drink;Packing system;PET bottle blowing machine;Injection molding machine.etc.
Q2:How can we get your products?
A2:Find our products through Reliable Machinery Co.,Ltd in Google ,Baidu. Bing ,Yahoo, Alibaba.com etc
Q3:How to tell us your enquiry?
A3:Contact us by email, phone call, fax, Instant Messenger (Trademanager, MSN, Skype) and let us know your inquiry.
Q4: Where is your factory?
A4: Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi. If you fly to Shanghai or Wuxi, we can pick you up to visit our factory.
Q5: Can you send engineer to our local place for installation?
A5: Yes, If you need, we will arrange engineer for you, and we can provide turn-key project.
Complete Automatic Mineral Water Processing Machine/Equipment/Machinery
terms /payment
1. Payment Method
1. 30% by T/T as down payment within 7 days the contract signed
2. 70% by T/T paid before delivery
2 . Mechanical Warranty
One year warranty and come with at least one year recommended spare parts
3. Delivery & Packing
Ø Delivery Time:30 days after get down payment & bottle/cap samples
Ø Coming Document:
1) Machine Quality Guarantee
2) Complete set install & maintain instruction Book in English language
3) Complete Document for customer to clear its custom
Ø Packaging requirement:
1) The special packaging box is according to the immunity standard in China,it suits for long-distance transport, damp proof, rustproof, land way and seaway
2) Transportation ways: Sea transportation
4. Install in Spot
If Engineers install in spot
1) Installment USD100/day. Person as allowance
2) Training fee is free for customer's workers within the installation period
3) The tickets from China to the customer factory and return paid by the customer
4) The local housing , food, and transfer cost at customer factory paid by the customer
welcome to your enquiry of reliable machinery!
Zhangjiagang Reliable Machinery Co., Ltd. is a hi-tech designing and manufacturing enterprise, which is specialized in beverage production and packing complete lines as well as various water treatment machines. We are one of the earliest companies engaged in manufacturing liquid filling and packing equipment in China
Our products include: Liquid filling machines (water, fruit juice/tea, carbonated drink, oil, alcohol, plant protein drink, etc. ), Barreled filling line (3-5 gallon) Water treatment machines, Labeling & packing machines, semi-automatic /full automatic bottle blowing machines, and injection molding machines.
Reliable Machinery can provide turn-key services for customers, from plant layout, equipment manufacture and production line setup to operator training. We will continually carry on trying our best to meet the demands of our customers and seek for development together with our customers.
Additionally, we also supply technique consultation, factory construction design plan, equipment installation and adjustment, technology training and other after-sales services. Now our products are exported to over ten countries and regions, including Southeast Asia, Russia, the Commonwealth of the Independent States, Western Asia and South Africa.
