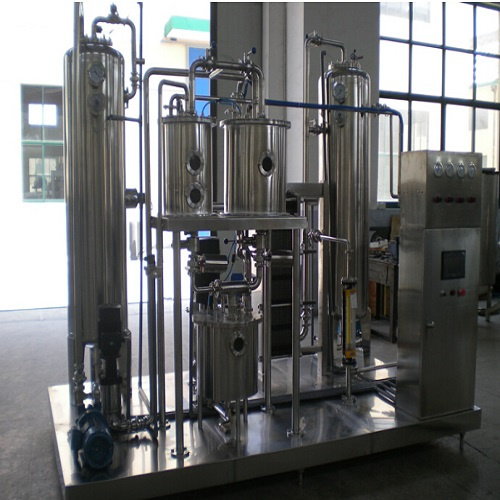

Gas Water Mixing Machine/Mixer
QHS beverage mixer is applied for carbonation and proportion mixing of various gas beverages (water, syrup, and CO2), such as lemon and Cola. It is the main equipment among the complete equipment of beverage production line (especially the key equipment producing middle-and top-level beverage).
Features:
1. The machine, after the adoption of advanced technologies in the chemical industry- Static mixer (carbonizer), features large area of gasquid mass transfer, small resistance loss, high efficiency, low energy consumption, and simple structure. It also adopts the multi-stage centrifugal pump with reliable performance and low noise, guaranteeing the performance of the whole machine.
2. The mixing proportion is accurate and easy for adjustment. With no need of parts replacement, the machine can realize the quick output adjustment and the proportion of syrup and water.
3. The machine, by use of CO2 reflux deoxidation, not only saves CO2, but also achieves the objective of deoxidation and makes the deoxidation water have better pre-carbonation effects.
4. The machine is convenient to adjust the gas content. According to the requirements of beverage gas content, the adjustment can be done through proper operation.
5. The machine has perfect automatic control system, featured by coordinate action, simple structure, continuous production, and high automation.
| Model | QHS-1500A | QHS-3500A | QHS-3000 | QHS-5000 |
| Capacity | 1000-1500 | 2000-3500 | 2000-3000 | 4000-6000 |
| Mixing range | 1:3-1:6 |
| Gas content in beverage | 1.5-2.5 | 1.5-2.5 | 3.0 | 3.0 |
| Temperature in chilled water | 0-5 |
| Water de - oxindization method | Deoxidized by CO2 |
| Working pressure of pre-carbination tank and syrup tank | 0.05-0.08 |
| Working pressur e in storage tank | 0.2-0.5 |
| Power supply (MPa) | 1.1 | 1.5 | 3.7 | 5.2 |
| Overall dimension | 900 × 700
× 2000 | 1100 × 900
× 2100 | 1600 × 1250
× 2100 | 2000 × 1200
× 2100 |
| Weight(kg) | 500 | 650 | 1200 | 1800 |
ZHANGJIAGANG KEYUAN MACHINERY Co., Ltd is a modern technical enterprise set up to meet the 21st century's development demand regarding beverage packing machinery and all sorts of wa-ter treatment facilities. The co. Has production experience of more than 20 years, it is a speciali-zed enterprise producing full set of beverage packing machinery and all sorts of water treatment facilities integrating product development, scientific research & design, production manufacturing and technical service, marketing. At present, the co. Provides following production lines:
Gas containing drink complete sets of production line.
Mineral water, Spring water complete sets of production line.
Pure water complete sets of production line.
Fruit juice complete sets of production line.
Bean milk & protein drink production line and thchnique.
White spirit, soy, vinegar filling complete sets of production line.
KeYuan would like to move forward together with you and will spare no efforts. Welcome to KeYuan.
