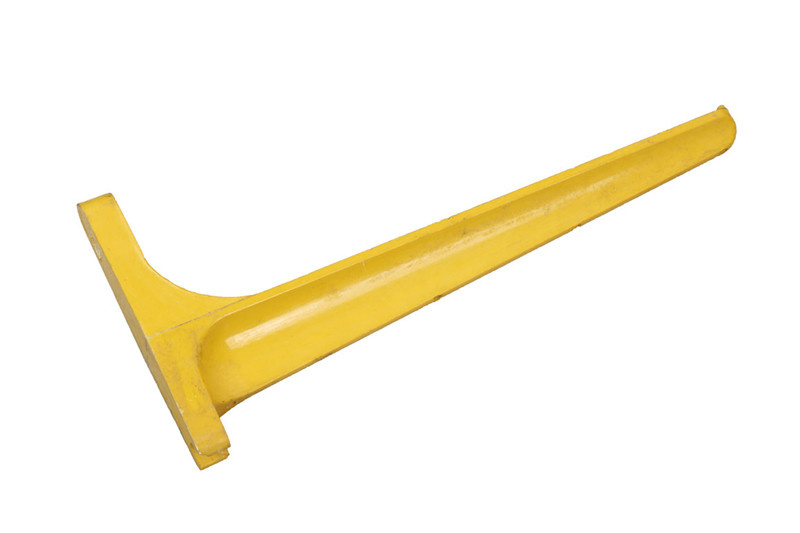

Composite Cable Bracket:
High mechanical strength:
High bending performance, no distortion and no brittle.
Corrosion resistance:
In the acid, alkali and salt environment will not erosion, not rust and not mold
Light weight:
The density is about 1.9 and the carbon steel only occupied 1 / 4, but the tensile strength is close to or even more than carbon steel. That is under the same strength requirements, the composite cable holder has a lighter weight.
No loss:
This material is not conductive, no static so no need to grounding.
No loss:
This material is not conductive, no static so no need to grounding.
Good insulation:
Good flame retardant properties, as needed, the oxygen index can reach 80 or more. And it can be used from -40 to 130 degrees safe and reliable.
Environmental protection and anti-theft:
We use the new composite materials, safety and environmental protection, light weight and non-recovery value. It can solve the problems of metal cable support heavy weight and easy to theft.
Longevity life:
50 years underground, 30 years on the ground, long life and durable.
Easy to installation:
Reasonable structure, simple installation, installation and construction synchronization, shorten the construction period.
Product classification
The signal cable bracket is a socket bracket which mainly used in fix of single cable and controlling cable.
Socket cable bracket have embedded part and cable beam section. We can select the appropriate bracket according to the cable diameter and weight.
Cable bracket can directly assemble into the brick wall. We can select the appropriate bracket according to the cable diameter and weight.
Flat cable bracket as a modular socket combination bracket, the central part of the bracket have the proper size screw for securing the cable hoop. It can be used high weight and big vibration of cable and with certain slope's cable channel.
Combination and hanging cable bracket can be used in pouring the wall structure of cable tunnel and cable trench. We can use expansion bolts or reserved bolts to fix the cable to cement wall.
The width and depth of cable channel should select by the number of the quality and specifications of bracket. We can refer to the construction case. The minimum space between layers of bracket refer to the diagram (GB50168 requirements in 4.2.2). But the spacing between layers is not less than 2 times the cable diameter 10MM. 35KV cable is over not less than 2 times the cable diameter than plus 50MM.
Beijing Fanya Diantong Industry & Trade Co., Ltd. is a high-tech enterprise, specializing in composite products widely applied in municipal engineering, electricity, telecommunication, which has integrated technology development, production and marketing into one body.
Our company is located in Industry Development Area in Daxing District, Beijing, which is near to South 5th Ring Road. In 2007, we obtained three systems certification, including Quality Management system certification(ISO9001: 2008), Quality Management system certification(ISO14001: 2004) and Occupational Health &Safety Management system certification(OHSAS18001: 2007). We have formed main series of products.
I: Composite Manhole Covers referring to EN124 Standard.
II: FRP Manhole covers
We have a strong technical research & development team, and set up a "Fan Ya Dian Tong Materials Engineering Research center" with famous engineering universities in Beijing, which provides a powerful technical support for our sustainable development.
We always follow the strategic principle of "Chao Cai brand into future" and strengthen our core competitiveness of "Tolerance, Rationality, Harmony, Innovation", continuously expand our oversea markets. In recent years, our products have been exported to Egypt, Jordan, Russia, USA and other foreign countries. Excellent quality and considerate service make our company enjoy high reputation in international market.
Welcome to visit our company and talk about business on spot, pls contact us to build long-term cooperations as well as mutual benefit.
