Product Specifications
| Prod Model: |
KH-SWP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Core Insulated Material: |
Ployurthane/PU/Pur/PIR |
| Panel Thickness: |
55mm,75mm,85mm100mm,125mm,150mm,175mm,200mm |
| Metal Surface Thickness: |
0.45mm,0.5mm~0.8mm |
| Core Material Density: |
40~45kg/M3 |
| Resistance To Temperature Range: |
-185~120 Centigrade |
| Steel Surface Coating Type: |
Fluorocarbon Type,Stainless,High Weather Resistant |
| Flame Retardant Property: |
B1 |
| Closed Porosity: |
97% Above |
| Panel Length: |
as Customer Needs |
| Panel Width: |
1000mm |
Product Description
I. What is Polyurthane Sandwich Panel Color Steel Plate:
Polyurethane sandwich panel choose high quality two layer color coated steel sheet or other precision forming metal surface material; After rolling forming, it will inject flame retardant polyurethane bubble liquid in the middle space, through high pressure foaming and curing process, with strong adhesion with metal surface to compound and become beautiful, smooth, tough building panel.
| Surface Treatment | Flat,Embossment |
| Exterior Pattern | Small Ripple,Groove,Square Wave,Flat |
| Interior Pattern | Square Wave |
| Dimension(Mm) | Width | 1000 |
| Length | 2500≤L≤18000 |
| Thickness | 33 50 75 100 |
Steel Thickness
Mm |
Exterior Steel | 0.5-0.8 |
Interior Steel | 0.4-0.5 |
Steel Coating | (≥20um)
Fluorocarbon Type,Stainless,High Weather Resistant Polyester(Coating≥20um) |
| Core Material | PU()
PU(Polyurthane) | PIR()
PIR(Polyisocyanurate) |
| Core Material Density | 40-43 | 45-50 |
| Core Material Heat Conductivity Coefficient | 0.022 | 0.02 |
| Closed Porosity | ≥97 | ≥97 |
| Flame Retardant Property | B1 | A- |
II. Application of Polyurthane Sandwich Panel Color Steel Plate:

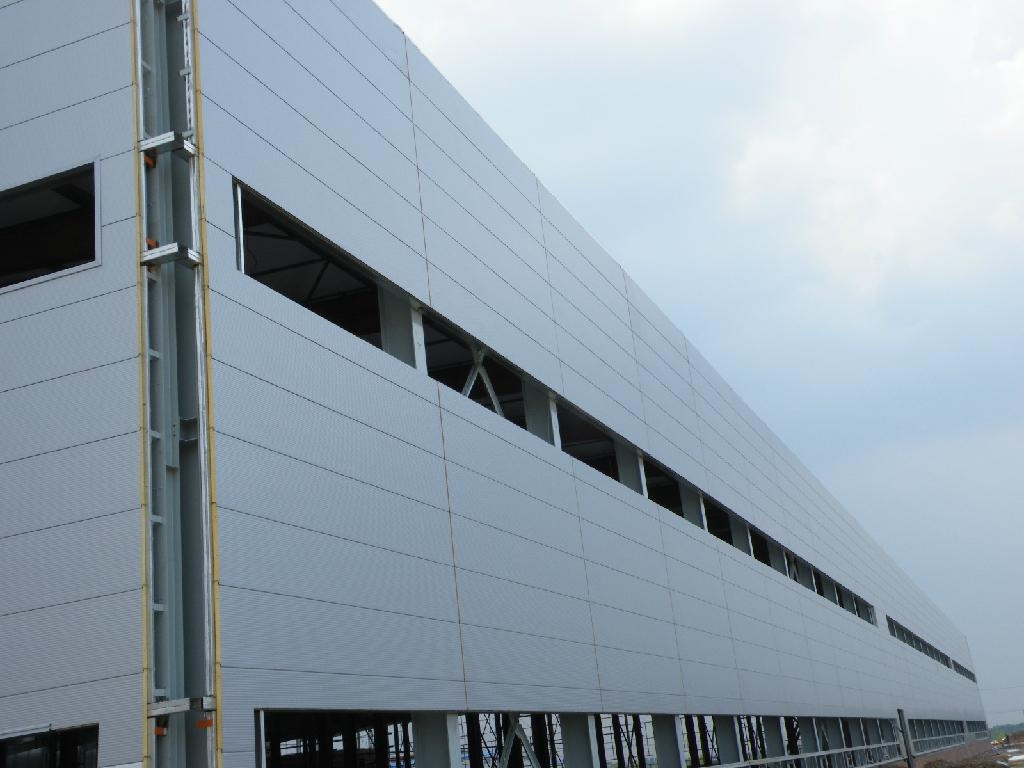

Polyurethane sandwich panel has been used as the main steel building palisade materials, widely used in large industrial plants, cold storage, garage, mobile homes, exhibition hall, gymnasium, shopping centers, airports, power plants, villas, hospitals, office buildings and other fields, and its excellent insulation performance is mainly used in roof and metope of industrial and civil construction.
III. Product Features of K-Home Polyurthane Sandwich Panel Color Steel Plate
Production security: Equipment are imported the most advanced Italy PUMA pu color steel plate production line, 26.3 m double crawler molding equipment, prolong the curing foaming time and guarantee board surface more smooth. The six components online foaming system is adjustable, fully guarantee the stability of the product.
Overcome the effect of cold and hot bridge
Double seal waterproof design, good air tightness
Hidden installation screw
Dry hanging installation, high efficiency
Applies for old building reconstruction, the application of texture effect
Weather resistance, long life (double protection)
Self clean, reduce maintenance costs
Fireproof performance, external wall fireproof system
IV. Product Model and Performance:
Henan K-Home Steel Structure Co., Ltd is a high-tech corporation engaged in integrating steel structure design, research and development, manufacture, construction, iron steel trade, energy saving panels and modular house, it takes a lead to pass the certificate on safety management system on the aspect of quality, environment, and occupational health.
Henan K-Home Steel Structure has Class I qualification on contracting of steel structure project and modular house. We have our own polyurethane energy-saving sheet production line which has annual capacity to produce 1.5 million m2 of polyurethane energy saving sheet, color profiled sheet, 4 million m2 composite sheet. Depending on the integration strength of the Group industrial chain, K-Home could make complete turnkey projects including design, manufacture, exporting, Installation, maintenance for steel structure, prefab warehouse, temporary housing, container house, steel structure villa etc.
Our featured products are Container House and Integrated Villa. With perfect technology supporting team, we could supply a most Considerate Design, Qualified Production, Quick Delivery, Fast Installation. With good reputation and experience, we have contracted so many projects in our local for Steel Structure for Workshop, Container House, Rural House, Holiday Villa, Log Cabin, School Building, Office Building, Hotel Building, Club Building, Tourism Building etc.
Henan K-home Steel Structure Co., Ltd will always engage in new model construction house. We believe innovation create more value for customer. We will keep updating our design and material every year to get the trend of the world. Customer's good comment is always the best feedback for our work!
More Fast, More Cost saving, More environment friendly, more energy saving, a better new life for you now! Don't wait, contact us now!
