Xuchang Chengrui Insulation Material Co., Ltd. >> Composited Insulation Meterials Nmn Insulation Paper

Composited Insulation Meterials Nmn Insulation Paper

Name: Composited Insulation Meterials Nmn Insulation Paper
Brand: China-Manufacturer-Directory.com
SKU: 701892952
Availability: InStock
Rating: 4.8 (103 reviews)

Supplier:	Xuchang Chengrui Insulation Material Co., Ltd.
Price:	US $ 11kg
Min Order:	200kg
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	6640
Markets:	Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thickness:	0.17mm 0.20mm 0.25mm 0.30mm 0.35mm
Width:	1000mm
Form:	in Rolls.
Package:	Carton and Pallet
Storage Life:	1 Year
Application:	Motor
Type:	Solid
Chemistry:	Organic Insulation
Material:	Paper
Thermal Rating:	F 155
Maximum Voltage:	10KV~20KV

Product Description

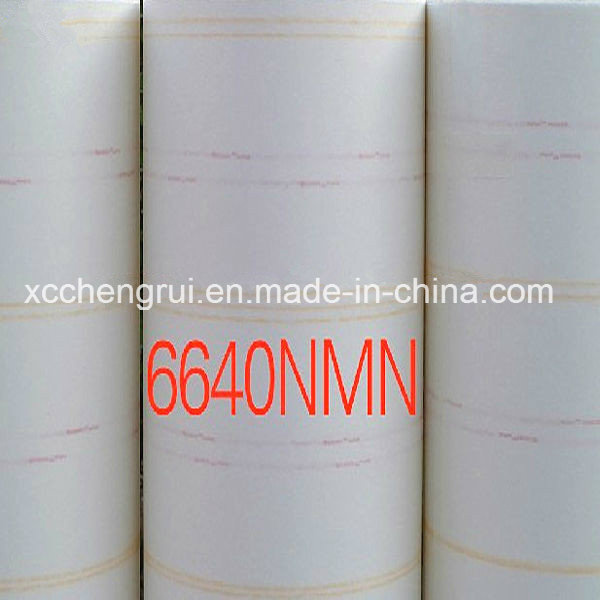

6640NMN insulation polyester film/nomex paper composite material
Materil:Nomex insulation paper(both sides)
Polyester film ( in center)
NMN(6640) Polyester Film & NOMEX Amide Fiber Paper Composites are a family of 3-ply laminates of NOMEX amide paper bonded to both sides of polyester film.
Excellent heat resistances, dielectric property and mechanical strength;
Good cutting and overload resistances, high stiffness;
Good compatibility with insulation F varnish
As slot, intertrun and liner insulations for F-grade motors and electric apliances
Thickness:0.18mm 0.20mm 0.25mm 0.30mm 0.35mm
Width:914mm color:White with yellow or orange line
Form:In rolls
Pacage:Carton and pallet Storage life---1 year

THICKNESS mm		NMN 0.16	NMN 0.18	NMN 0.2	NMN 0.24	NMN 0.3	NMN 0.35	NMN 0.4	NMN 0.47
Tensile Strength N/10	MD	170	202	234	273	335	403	454	476
Tensile Strength N/10	TD	143	170	210	214	332	407	403	493
Elogation %	MD	28	31	25	34	50	49	54	51
Elogation %	TD	4	52.6	40.31	46.12	81	64	73	87
Breakdown		12	13	15	16	17	18	22	24

Welcome Xuchang ChengRui Electrical Insulation Material Co., Ltd

If any question, pls contact our sales

Our main products are as follows:

Film Products: 6020/6021 Polyester film, 6051 polymide film

Flexible composite insulation paper: 6630 DMD insulation paper, 6641-F DMD, 6640NMN, 6650NHN, 6520/6521 insulation paper

Insulation binding tape: Alkali-free fiberglass tape, 2840 epoxy resin impregating binding tape, mica tape, cotton tape, shirinkable binding tape,

Insulation Sleeving: 2715 PVC fiberglass sleeving, 2751 silicone fiberglass sleeving, 2753silicone resin fiberglass sleeving, 2740 acrylic fiberglass sleeving.

Impregnating fiber products: 2432alkyd Fiberglass varnish cloth tape, 2310 oil varnish cloth, 2450, 2210

Electrical insulation paper: Insulation paperboard, Diamond Dotted paper, presspaper, crepe paper, cable paper

Laminated sheets: 3021 phenolic paper sheet, 3025phenolic cotton cloth sheet, 3240epoxy fiberglass sheet, 3841 epoxy rod, 3722-1 cloth bar

The products are widely used for slot insulation, interturn insulation, layer insulation and liner insulation of the large and small motor. Some are for binding insulation of transformer, impregnating material, electrical wire and other electrical insulation.
