Compound balanced wire mesh belt includes plain weave wire mesh, twill weave wire mesh, Dutch plain weave wire mesh, Dutch teill weave wire mesh, bamboo type weave wire mesh, twist weave wire meshand so on.
This kind of wire mesh belt has the acid resisting, alkali resisting, heat resisting, wear resisting, corrosion resisting and so on.
Stainless steel weave conveyor wire mesh can be widely used in mine, chemical, food industry, pharmaceutical industry and producing.
The left-round and right-round spirals are fitted tightly together alternately and jointed with straight rods. A4 uses 4 rods for one spiral to joint.
Typical specification of A4
| Specification | Weight (kg/m² ) |
| A4-11.7-6.5-3.0-2.6 | 40.1 |
| A4-10.5-5.7-2.6-2.3 | 35.0 |
| A4-9.0-5.0-2.3-2.0 | 30.8 |
| A4-7.2-4.0-1.8-1.6 | 19.5 |
| A4-6.5-3.8-1.8-1.4 | 21.6 |
compound balanced belt
Some of the wire mesh belts described below have similar characteristics to those in the heat treatment section, where the belts are made from wire spirals of round or flat wires and connected by cross rods. This range of mesh belts is complimented by an additional range of belt styles, which are made from flat bars, wire links and connecting wires.

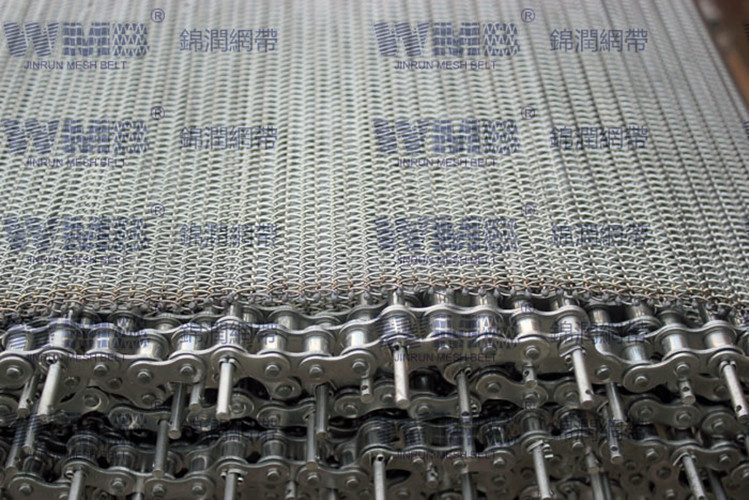

Many of these wire mesh conveyor belts for canning, washing, etc can be supplied with selvages which are either welded, ladder or knuckled, but also with reinforced selvages and guard edges and if necessary with drive chains.
This range of wire mesh belts is designed for more general applications where the temperature is not above 600 deg C and thus available for great many industrial processes.
The types of materials used depend on the process conditions and the most suitable wire mesh belt style, but can be from a wide variety as shown below.
Advantages:
Since the surface is flat and smooth, the belts can carry small items and unstable products.
The allowable tension is high, so that heavy load can be transported.
The belt strength against pressure is high, so the belt can be used for processing under pressure.
The belt can be used at high temperature.
The belt can be used for textile products refining and cleaning process.
