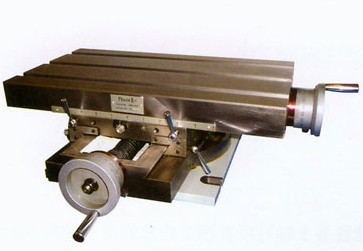

Compound Cross Slide Table, 444x254mm
Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
This compound cross slide table with swivel base is a functional multi-purpose attachment for general millers, small-sized drillers and other machine tools. X, Y coordination travels and 360-deg swivelling of the cross of slide table base can be performed by simple manual operation. It is mostly used in such metal cutting as light-duty milling or drilling with high precision.
|
Parameter |
Value |
|
Table size, mm |
254X444 |
|
Thickness of cross slide table, mm |
153 |
|
Table transverse travel, mm |
±114 |
|
Table longitudinal travel, mm |
±76 |
|
Width of T-slot, mm |
15.875 |
|
Adjacent distance of T-slots, mm |
80 |
|
Min. reading of handwheel, Sec |
0.001 |
|
Max. load capacity of table center, Kgf |
250 |
|
Max. allowable cutting force of table center, N |
700 |
|
Straightness of table surface, mm |
0.03(-) |
|
Perpendicularity of longitudinal motion, mm |
0.03/100 |
|
Parallelism of table surface to bottom, mm |
0.05 |
|
Runout of table surface to bottom with 360-deg revolution, mm |
0.08 |
|
Linear positioning accuracy, mm |
0.05/100 |
|
Repeatibility accuracy, mm |
0.02 |
|
Net weight, KGs |
70 |
|
Gross weight, KGs |
90 |
|
Packing size, cm |
60X60X27 |
We are a dedicated exporter who supplies machine tools and their accessories for metal cutting and metal forming industries from China. Our products include lathes, milling machines, drilling machines, multi-purpose machine tools, grinding machines, sawing machines and their accessories. Benefitting from long-term successful cooperations with many competitive domestic machine tool manufacturers and consistently devoting all our efforts to customer services, we have been supplying our products to markets throughout the world including North America, South America, Europe, Australia, Asia, Africa and the Middle East, and enjoy a good reputation among our customers.
We take high quality of products and customer satisfaction as the first priority in our business. Therefore, according to ISO standards, our domestic standards and other standards specified by our customers, we implement strict in-process quality control measurements throughout the manufacturing and inspection processes to ensure to achieve high quality products and on-time delivery for our customers. Meanwhile, we provide a one-year warranty which is counted from the shipment date for any products delivered from us and free new parts can be sent to customers to repair or replace the defective parts within this warranty period. Additionally, at the customer's request, we can deploy engineers to the customer's site to help install the machines tools and train the operators. After the sales of a machine tool, we are continuously keen on helping our customer to keep it perform excellently in operations.
Dependable quality, competitive prices and reliable warranty are the characteristics of our products with which we are confident to help you improve your supply chain and succeed in your business. When you need any machine tools or accessories, please send us an inquiry. We are here 7-day-a-week ready to be involved in your efforts on sourcing for machine tools or accessories. We are confident that we can quickly and effectively provide you valuable information and quality-dependable products. Hope to hear from you and offer our best to you!
