Product Specifications
| Prod Model: |
YAW-1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Compression Testing Machine |
| Weight: |
>2000Kg |
| Power Source: |
AC380V |
Product Description

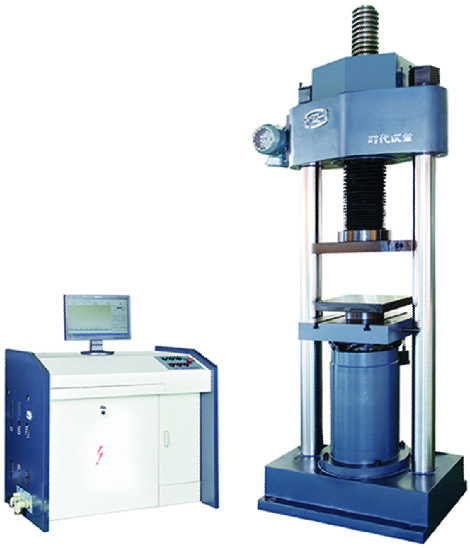

Brief Introduction: YAW-1000 hydraulic direct compression testing machine is mainly used to various materials compression test. Such as cement, concrete, brick of diverse materials, rubber tray, concrete component, metal component anti-compress strength.
Load Frame Structure: The load frame is tower structure, crosshead is supported by two columns on the base, and is tighten by screw cap. Upper platen is mounted on the screw rod of crosshead, motor driving worm shaft, worm shaft driving worm wheel, then rotate screw nut, and driving upper platen on screw rod up and down. Oil cylinder and piston is at the center of working table, sphere base and lower platen is on the working table. The round reticle of the lower platen is convenient to the operator to place specimen.
Measuring System: This machine is mainly consisted of load frame, oil source integrated control cabinet, computer and printer etc. It adopts hydraulic loading and manual control, oil pressure transducer to measure the load, . PC screen display the test data and curves, with data storage and print function, the database file is convenient for the user to transfer into ACCESS and EXCEL for further analysis.
Applications: It is widely used in different construction materials works, steel works, engineering areas, Quality control department, universities and institutes as well as other areas and works concerning compression test.
Features:Full computer displayed of testing process.
Manual loading speed will meet your appropriate testing speed.
Stable and reliable high intensity structure load frame.
Timely display software will provide accurate record of testing process.
Report guide will create your testing report very easily.
Overload protection will secure operators.
YAW Series is computer controlled servo hydraulic compression testing machine. The space adjusting, & test processes could be controlled by the software and the test result could be transferred to the software in the computer for further analysis. It is the most advanced series in hydraulic compression testing machines.
|
Specification |
YAW-300B |
YAW-1000 |
YAW-2000D |
YAW-2000B |
YAW-3000 |
YAW-3000A |
YAW-5000F |
YAW-10000F |
|
Max test load(kN) |
300 |
1000 |
2000 |
2000 |
3000 |
3000 |
5000 |
10000 |
|
Load range |
4%-100% of max test load |
|
Accuracy of load |
≤±1% |
|
Compression plates(mm) |
Φ150 |
320x320 |
250x250 |
Φ300 |
Φ330 |
400x400 |
800x600 |
480x480 |
|
Compression space(mm) |
250 |
0-500 |
0-500 |
300 |
0-650 |
0-1000 |
0-1500 |
300-4000 |
|
Piston stroke(mm) |
35 |
150 |
150 |
150 |
150 |
200 |
200 |
250 |
|
Clearance of columns(mm) |
285 |
460 |
540 |
540 |
560 |
560 |
670x870 |
1220x1270 |
|
Dimension of mainframe |
540x540x1409 |
780x540x2650 |
1050x650x2100 |
1050x650x1700 |
1060x800x3200 |
1000x1480x3400 |
1400x1200x4045 |
1850x2100x7350 |
|
Weight of mainframe(kg) |
600 |
2500 |
3500 |
3500 |
7000 |
5500 |
14000 |
48500 |
|
Power(kw) |
2 |
2.6 |
3 |
3 |
7 |
7 |
8.5 |
25 |
