Product Specifications
| Prod Model: |
YES-2000C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Compression Testing Machine |
| Weight: |
>2000Kg |
| Power Source: |
AC380V |
Product Description

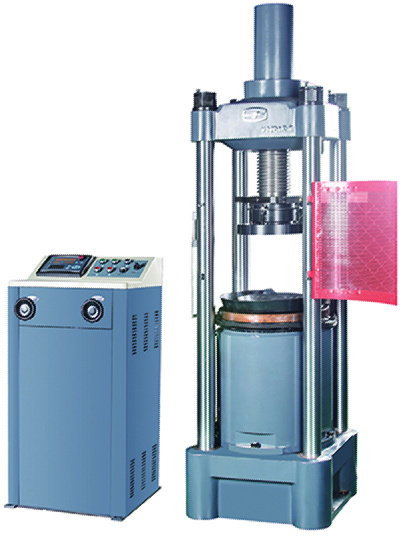

Brief Introduction: YES-2000C digital diusplay hydraulic compression testing machine is mainly used to compression test of various materials, such as cement, concrete, brick of diverse materials, rubber tray, concrete component, metal component's anti-compress strength.
Load Frame Structure: The load frame is four columns tower structure, crosshead is supported by four columns on the base, and is tighten by screw cap. Upper compression platen is mounted at downside of the screw rod of crosshead, one active chain wheel was installed on deceleration motor, the drive sprocket wheel drive the driven wheel through the chain, and then rotate the screw nuts to make the upper compression platen on screw rod up and down. Working table is on the oil cylinder and piston, sphere base and lower compression platen is installed on the working table. The concentric circles of the lower platen are convenient for the operator to place the specimen. Oil pipe and oil source in the load frame is connected. This load frame achieved an appearance patent.
Measuring System: This machine is mainly consisted of load frame, oil source, control cabinet and digital meter. It adopts hydraulic loading, oil pressure transducer to measure load, digital display, with peak value holding and loading speed display etc. Functions.
Applications: It is widely used in different construction materials works, different project building sites, Quality control department, universities and institutes as well as other areas and works concerning Compression test.
JYS/YES Series is digital display manual control compression testingmachine.
|
Specification |
YES-300 |
YES-600 |
YES-1000 |
YES-2000D |
YES-2000 |
YES-3000A |
YES-5000F |
YES-10000F |
|
Max test load(kN) |
300 |
600 |
1000 |
2000 |
2000 |
3000 |
5000 |
10000 |
|
Load range |
4%-100% of max test load |
|
Accuracy of load |
≤±1% |
|
Compression plates(mm) |
upΦ150 |
204x204 |
320x320 |
250x250 |
Φ330 |
400x400 |
800x600 |
480x480 |
|
downΦ160 |
|
Compression space(mm) |
250 |
0-500 |
0-500 |
0-500 |
0-420 |
0-1000 |
0-1500 |
300-4000 |
|
Piston stroke(mm) |
150 |
0-200 |
150 |
150 |
100 |
200 |
200 |
250 |
|
Clearance of columns(mm) |
280 |
425 |
460 |
540 |
368x318 |
560 |
670x870 |
1220x1270 |
|
Weight of mainframe(kg) |
1500 |
1800 |
2500 |
3500 |
1470 |
5500 |
14000 |
48500 |
|
Power(kw) |
2 |
2 |
2.6 |
3 |
1.5 |
7 |
8.5 |
25 |
TIME Group Inc. was established in 1984 is a leading manufacturer of Material Testing Machines in China. TIME Group Inc. has over 2, 800 dedicated, highly skilled employees in facilities located in China. From engineering, service, training, to front-line support, our commitment to customer satisfaction is the driving force behind everything we do. In 1995, we achieved the ISO 9001 certificate, and we have got many other certificates, such as CE. We are not only famous in China, but also have been exporting into more than 35 oversea countries and area.
JINAN SHIJIN GROUP was established in 1952, is the leading company in testing machine industry, honored as the excellent HI-TECH company in China. In August, 2003, TIME GROUP INC. Merged SHIJIN GROUP, this is a landmark in China testing machine industry.
We invested 180 million RMB to build a new factory of TIME SHIJIN GROUP in the Jinan economy & technology development district in 2010, and it occupies 102 Mu, with building area 46800 sq. M. It consists of 10 production lines: Foundry, Heat Treatment, Painting, Big Parts, Accessories, Bearings, Electric, Oil Sources, Load Frame, Installation & Calibration, Diversified Big Digital Controlled Processing Centers and 131 units of special machine tool equipments. The advantages of our new factory are not only the biggest production capacity in the Testing Machine industry of China, but also with the most modern technology.
