Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Products Status: |
Stock |
| Application: |
Computer |
Product Description
1. CCC certification
2. Professional system
3. Good quality
4. Fast delivery

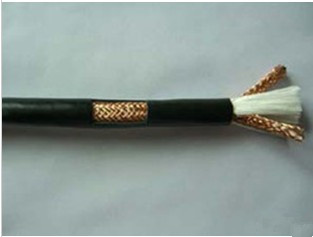

Characteristic of Computer Cable;
1, A. C rated voltage: U0/U 300/500KV
2, Maximum working tempreture: PE insulation will not exceed 70 centigrade
Cross-linked PE insulation 90 centigrade
Low-smoke no-halogen inflaming retarding Polyester 70 centigrade
Low-smoke no-halogen inflaming retarding cross-linked polyester 90 centigrade and 125 centigrade
Fluoroplastic 200 centigrade and 250 centigrade
Silastic 180 centigrade
3, Minimum enviroment tempreture: PVC sheath: Fixed lay40 centigrade, non-fixed lay --15 centigrade
4, The lay tempreture of the cable should not lower than 0 centigrade
5, Allowed bending radius of the cable: For the Non-metal-shielding cable, the minimum should be six times of the cables out diameter
For the copper tape shielding or steel tape metal shielding cable, the minimum should be 12 times of the cable out diameter
Main technical index
|
Performance item |
unit |
index |
|
PE |
pvc |
|
Insulation resistance(20) |
Ω/KM |
5000 |
25 |
|
Work capacitance |
PF/m |
≤90 |
≤200 |
(1Kz)
unbalance of the capacitance between
twisted pairs |
PF/m |
≤1 |
/ |
|
experimented voltage |
V |
2000V/1min |
|
inflaming retarding |
GB12666.5-90,AB
Conform the requirement of GB12666.5-90, A or B type |
Shanghai Star Enterprise", Shanghai Hufei Cable Co., Ltd., with a 40% staff of higher education, focuses on R&D, manufacturing, marketing communication cables and medium/low voltage electrical cables; The main equipments were imported from SIKORA in Germany, HIPOTTRONIC in USA and Nokia in Finland. We have established large-scale production bases in Shanghai, Wuhan and Zhengzhou. Our hit product, communication cables have been exported to Southeast Asia/Middle East/Africa, etc.
As one of the leading manufacturers of cable industry in China, we had obtained certificate of ISO 9001-2008, TLC quality certification and met the standards of China Compulsory Certification (CCC). Our hit products, communication cables have gained the advantages over similar products: More reliable quality, more cost-effective, complete range of articles. Welcome your enquiry and visit.
