Product Specifications
| Prod Model: |
ASY-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model Of Machine: |
Asy-D8800 |
| Gross Power(Kw): |
58 |
| Printing Speed: |
<=100 |
| Weight: |
Appro*10000 |
| Installing Dimensions(L*W*H): |
10800*2050*2720 |
Product Description

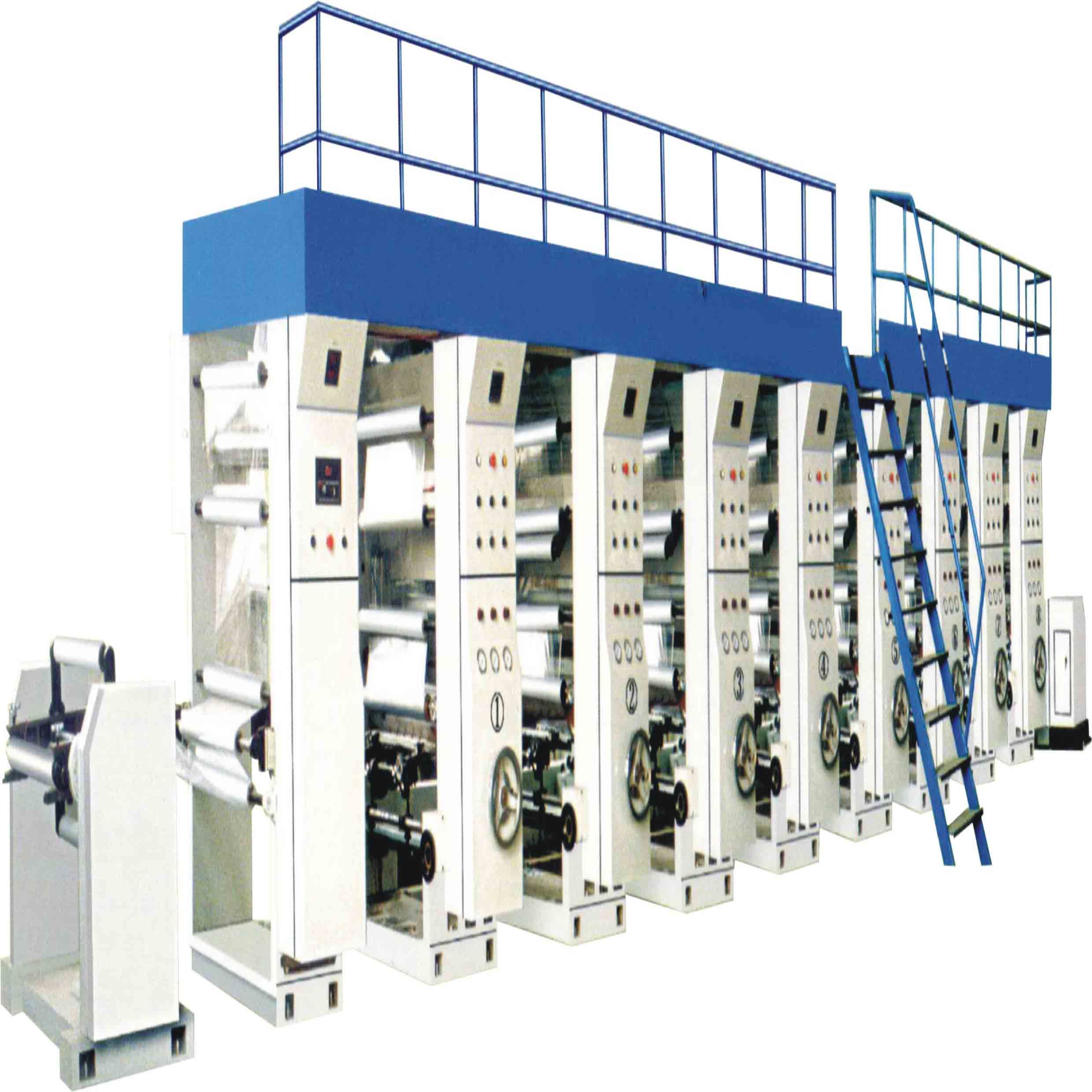

Computer combination 8 color gravure printing machinery
The machine features:
1. This computer control high speed flexo printing machine operate easy, accurate color, long life
2. The use of motors, variable frequency speed control, saving electricity, running small fluctuations
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink
4. The use of special diagonal-tooth gear, print size is accurate,
5. There are two sets of heating devices, including central heating and constant temperature control system for packet control
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium
7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced
8 With a cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. The Print produce are clear and good arrangement quality
10. Bearing: NSK, Japan brand, Germany ASNU aluminum alloy roll
Main Technical Parameter
|
Type |
ASY-D8600 |
ASY-D8800 |
ASY-D81000 |
|
Length of printing(mm) |
240-1100mm |
240-1100mm |
240-1100mm |
|
Width of printing(mm) |
600 |
800 |
1000 |
|
Printing color |
1-8 |
1-8 |
1-8 |
|
Speed of printing(m/min) |
< =100 |
< =100 |
< =100 |
|
Precision of overprint |
< =0.12mm |
< =0.12mm |
< =0.12mm |
|
Gross power(kw) |
Appro*900 |
Appro*10000 |
Appro*12000 |
|
Overall dimension(L*W*H)mm |
10800*2050*2720 |
10800*2050*2720 |
10800*2050*2720 |
Wenzhou Zhuding Machine Co., Ltd. (Wan Qun Industrial Company Limited) is an enterprise which was recognized by the state, gathering scientific research, manufacturing, sales, import and export business as a whole.
The company was founded in 1995, All employees through the unremitting efforts of 17 years, now has developed to the factory covers an area of 25, 00 square meters, 80 workers.
Our company specializes in manufacturing Non woven fabric production line, non woven bag making machine, rice bag cutting and sewing machine, laminating machines, flexographic printing machine, film blowing machine, shopping bag making machines etc plastic machinery equipment. Products have sold throughout the country, as well as Turkey, Mexico, Brazil, Zimbabwe, Russia, Vietnam, Indonesia and other overseas countries and regions.
We will, as always, adhere to the "Credit creates benifits, quality produces life" purposes. Company president Mr Zhu QingRong and G. manager Mr Ye Michael with all the staff sincerely hope to have a pleasure cooperation with customers both at home and abroad in the future.
