Product Specifications
Prod Model: |
GT-C11 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Model: |
Gt-C11 |
Product: |
Digital Elmendorf Tearing Tester |
Digital Elmendorf Tearing Tester: |
Computer Control Digital Elmendorf Tearing Tester |
Product Description

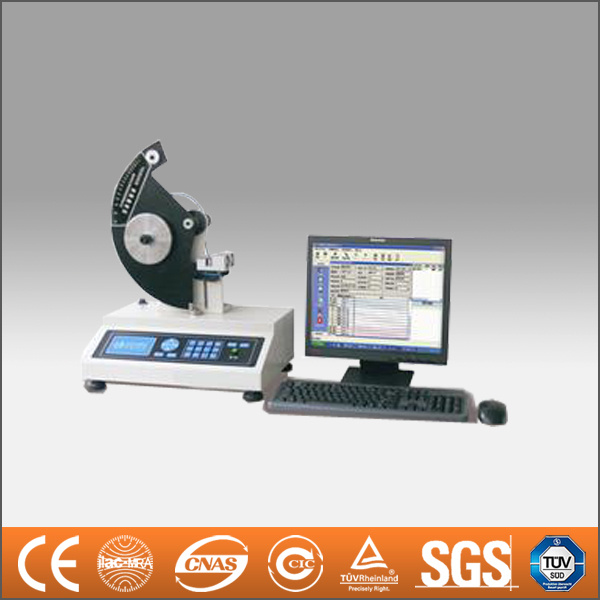

GT-C11 Computer Control Digital Elmendorf Tearing Tester
Elmendorf Tearing Tester, Digital Elmendorf Tearing Tester
1. Computer Control Digital Elmendorf Tearing Tester
2. Free for one year maintain
3. CE, ISO Calibration certificate
4. SGS Audited Supplier
Application
A microprocessor controlled falling-pendulum instrument to determine the ballistic tearing strength of textiles, plastics, paper or board.
Tearing strength in selectable unit MN, CN, G KG, OZ, LB is displayed on an integral 16 character LCD at the end of each test. The display also shows the number of samples (plies) and the pendulum being used. Start and stop safety solenoids hold the pendulum at the beginning and end of each test.
Why choose us?
1. Considering different countries plugs, manually change thevoltage from 110V to 220V, insurance indicator.
2. Excellent Aftersale Service:
16 months warranty. Besides, we can help you to repair your problem controller freely, even it's not from our factory. What you need to do is to send us the controller.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
4. Good Pakaging:
Simulation Animatronic Costom Triceratops are covered with air bubble fim before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Model |
GT-C11 |
Range of Tearing Force |
1600cN/g [3.5lb]
3200cN/g [7.0lb]
6400cN/g [14.0lb] |
Accuracy |
≤+/-2 Full scale |
Incision Length |
20+/-0.2mm |
Sample Dimension (L x W) |
100 x 63mm |
Dimensions(LxWxH) |
560 x 420 x 480mm |
Weight |
30Kg |
Standards |
BSEN ISO13937 DIN53862/53168 ASTMD1424
D5734 BS4253/4468 |
