Use:
It is suitable for hot sealing and cutting both monochrome and color plastic film, which make of HDPE, LDPE.
Featrue:

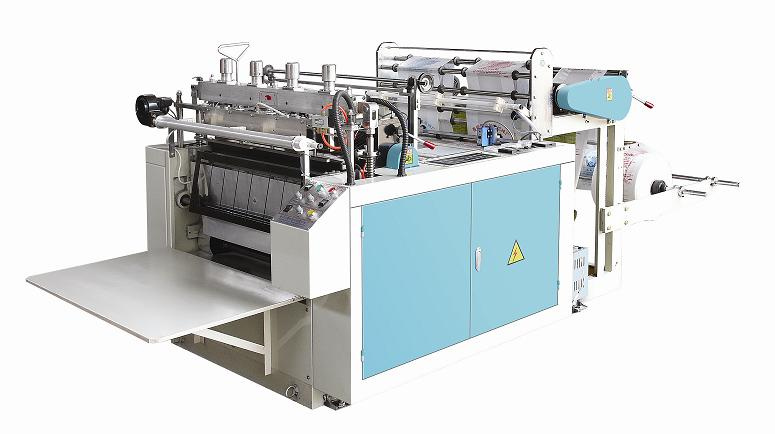

1. Especially designed for hot sealing and cutting of T-shirt bag.
2. Double track design, double production line, double photo scanner, double step (servo) motor.
3. When the output bags reach the setting number, it will be removed automatic without stop.
4. Designed with step(servo)motor system, easy operating.
The main Technical Parameters:
MODEL: DFR-400*2
Producing length: <800mm
Producing width: <330mm*2
Thickness of film: 0.01-0.05mm
Producing speed: 40-130 (PCS /min)*2
Main power 4.5Kw
Power source: 220V50Hz
Weighr: 950kg
Overall dimension (L*W*H) 3700*1350*1450mm
Packing dimension (L*W*H) 2250*1450*1600mm
MODEL: DFR-450*2
Producing length: <900mm
Producing width: <330mm*2
Thickness of film: 0.01-0.05mm
Producing speed: 40-130 (PCS /min)*2
Main power 5.5Kw
Power source: 220V50Hz
Weighr: 1100kg
Overall dimension (L*W*H) 3700*1450*1450mm
Packing dimension (L*W*H) 2250*1550*1600mm
Established in 1996, Ruian Lingfeng Plastic Packing Machinery Factory is an enterprise with an over a decade history specializes in manufacturing plastic machine.
Our products are of high quality in China, and have obtained good reputation in domestic markets. We have been approved by ISO9001 and many products have been exported to many counties and regions, such as the Middle East, Southeast Asia and Europe.
