Product Specifications
| Prod Model: |
FQCH-HC-600(700) |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: |
220V, 50Hz, 3phase |
| Bag-Making Speed: |
30-140PCS/Min |
| Air Compress: |
5kg/Cm |
| Sealing And Cutting Thickness: |
0.01-0.06mm |
| Computerized: |
Computerized |
| Bag Material: |
Plastic |
| Type: |
Plastic Bag Making Machine |
| Machine Type: |
Bag Forming Machine |
| Bag Type: |
T-shirt Bag |
Product Description
Product Description

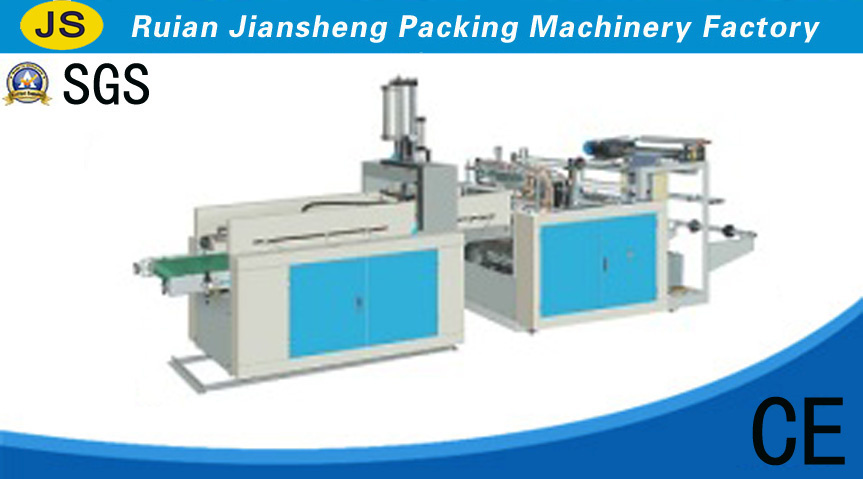

Computer Hot-Sealing and Hot-Cutting Bag Maker with Automatic Punching Unit (FQCH-HC-600(700))
Main Technical Parameters:
Model type FQCH-HC-600
Sealing and cutting Width 150-500mm
Sealing and cutting Length 300-850mm
Sealing and cutting Thickness0.01-0.06mm
Bag-making Speed 30-140PCS/min
Machine Power 5kw
Air Compress 5kg/cm
Machine Weight 1100kg
Overall Dimensions(L*W*H) 4800*1180*1700mm
Applications:
1. This hot-cutting vest bag making machine with automatic punching unit is suitable for hot-sealing and hot-cutting high denisty polyethylene(HDPE), low density polyethelene(LDPE) platic film.
2. It adopts computer color code-tracking, hydraulic punch the "U" shape vest bag in one time. It is a special bag maker for producing vest bags.
3. And with such features, such as easy operation and high finished products, so the production efficiency can be improved greatly.
Technical description:
1. Usage: FQCH-HC 600 model bag making machine is suitable for making print bags or no-print bags.
2. Double line production system: This machine can produce print or no-print bags by one production lines.
3. Fully automatic: It can do one-line production of the following steps: Heat sealing, heat cutting, punching, sending bags out by conveyer belt. All the above steps is done by one machine.
4. Double punch: Two air cylinder devices will be installed on the machine to do "U"shape cutting with heavy power. Moreover, two "U"shape knife will be installed on the machine to do two line punch production easily.
5. Bags Conveyer belt: It adopts conveyer belt to send bags out in order.
6. Photo cell: The photo cell will be installed on the sealing and cutting unit to track the print mark for print bags in two production line.
9. Its machine has the following features: Automatic temperature control, driver, sealing knife, automatic counting system, alarm system.
|
Model type |
FQCH-HC-600 |
FQCH-HC-700 |
|
Sealing and cutting Width |
150-500mm |
150-600mm |
|
Sealing and cutting Length |
300-850mm |
300-850mm |
|
Sealing and cutting Thickness |
0.01-0.06mm |
0.01-0.06mm |
|
Bag-making Speed |
30-140pcs/min |
30-140pcs/min |
|
Machine Power |
5kw |
5kw |
|
Air Compress |
5kg/cm |
5kg/cm |
|
Machine Weight |
1100kg |
1150kg |
|
Overall Dimensions(L*W*H) |
4800*1180*1700mm |
4800*1280*1700mm |
Ruian Jiansheng Packing Machinery Factory is a professional exporter and manufacturer of printing and packaging machines. We are making plastic bag whole line machines, not only for simple T-shirt bag making whole line machines, also for valued laminated bags making whole line machines and non woven bag making machines. We are making zipper(self-seal)bag whole line machines, Label(logo) making whole line machines, plastic cup making whole line machines, drinking straw making whole line machines. We also provide other machines which are not listed in our website, if you are interested, w can choose the best machine with attractive price for you as we have good relationship in our big family, most of people is in machine lines.
We have professional engineers and English translators who are all familar with machines to provide service for engineers take care of every details, we choose China famous brand or imported high quality raw materials & components for export type machines, and have very strict factory inspection, to make sure you can get quality machines. Our English translator will answer your email or phone at earliest time to meet your demands. We always follow the principle: To serve our customer, not only just to sell products. We also do our best support for our customer to solve any problem he met in China. We have established many long trade relationships with our customers for our best service.
If you are looking for relative machines from China, we sincerely hope we can be your best choice!
