Product Specifications
| Prod Model: |
HD-505S-1200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity (Optional): |
5 Ton |
| Power: |
1phase, 220V/ 50Hz |
| Warranty: |
One Year |
| Test Space (L*W*H): |
1000*1200*1200mm |
| Motor: |
Servo Motor |
| Load Accuracy: |
≤0.5% |
| Speed Of Compression: |
10 ± 3 Mm/Min |
| Dimension (L*W*H): |
2370*1500*2100mm (Can Be Custom Made) |
| Operation Mode: |
PC |
| Load Resolution: |
1/250, 000 |
| Type: |
Compression Testing Machine |
| Weight: |
500-1000Kg |
| Power Source: |
AC220V |
Product Description

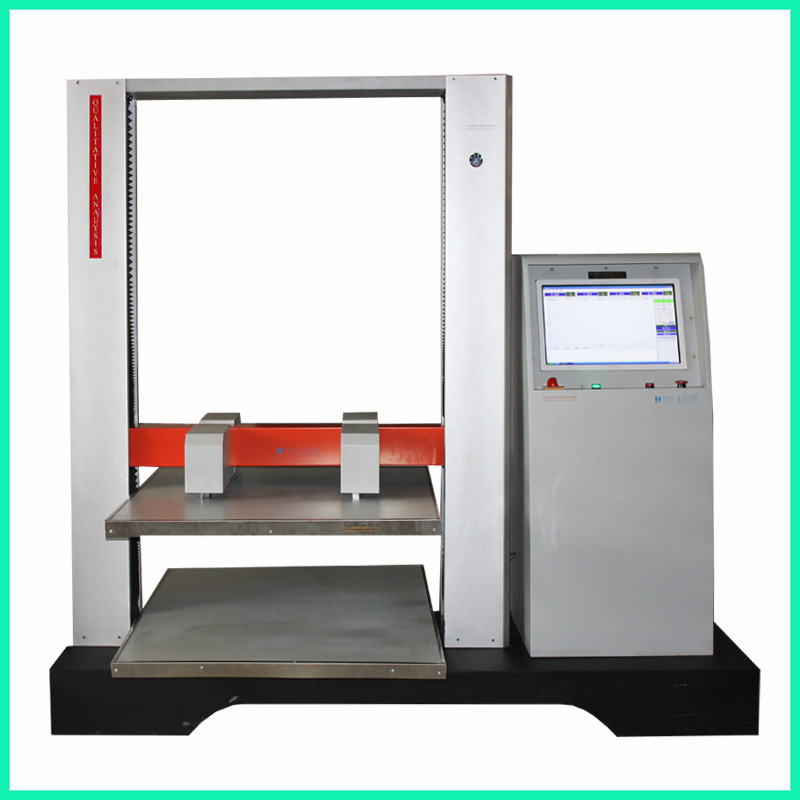

Computer Servo Control Carton Compression Test Instrument
Specifications
1.Up to TAPPI-T804, ASTM-D64
2.Box compression tester
3.Computer servo control system
The Usage of Carton Compression Test Instrument:
Box compression tester is used to test the compression strength, bending strength ,proof pressure, deformation and stowage for flexible packaging cases , corrugated cases, honeycomb crates, and other packaging cases
Features of Computer Servo Control Carton Compression Test Instrument:
1. Using a single-screen operation; do not need to switch the screen;
2. With three languages in Simplified Chinese, Traditional Chinese and English, the software interface can be switched easily;
3. Adopting windows platform, and all the parameter settings can be processed in the dialog box, and it operates easily;
4. The pattern of Test reports can be self-designated; test data can be displayed directly in the main screen;
5. Choosing translational, comparative mode at the same time to make a number of curve data comparison;
6. With a variety of measurement units, Measure In Imperial & Metric are switchable;
7. With self-return & auto-correction function;
8. With automatic magnification function, in order to achieve the most appropriate size of the graphics;
9. With the user-defined Test methods; with experimental data analysis function;
10. It can do test of compression, bending, pressure holding & fatigue.
11. With high precision and accuracy and reasonable price, it can test the crush instantaneously and stop automatically.
Specifications of Carton Compression Test Instrument:
| Model | HD-A505S-1200 |
| Unit (switchable) | Kg, Lb, N |
| Capacity (optional) | 5 T |
| Load Resolution | 1/250,000 |
| Load Accuracy | ≤0.5% |
| Test Space (L×W×H) | 1000×1200×1200mm |
| Speed of Compression | 10 ± 3 mm/min |
| Operation Mode | PC |
| Report Items | Serial number, Peak value, Average value, Designated holding pressure value; all memorable |
| Structure | Panasonic Servo Control System (Japan);
Ordinary screw rod ;4 sensors; LED display |
| Dimension (L×W×H) | 2370×1500×2100mm (can be custom made) |
| Power | 1ø, 220v/ 50Hz |
| Weight | Approx. 850kg |
| Safety Devices | Overload protection, overvoltage protection & limited position protection device |
| Standard | TAPPI-T804, JIS-20212, GB4857.3.4, ASTM-D642 |
