Product Specifications
| Prod Model: |
KJ-1065B |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Tensile Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
Product Description

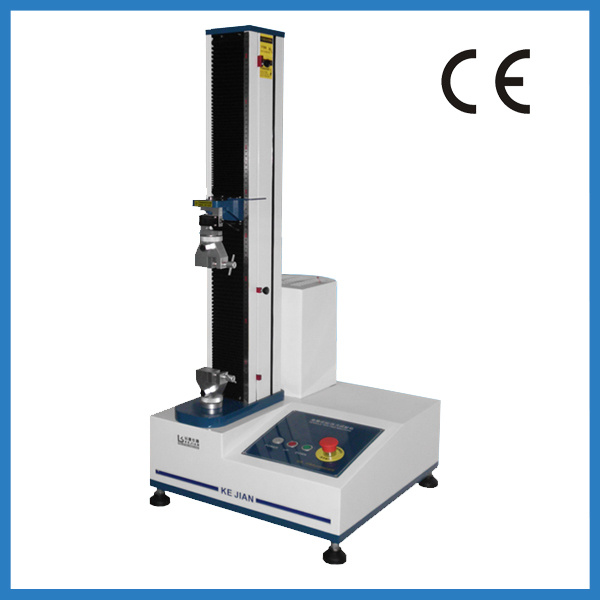

KJ-1065B Computer Tensile Strength Tester
Peel Strength Tester
Design standard: ASTM D903, GB/T2790/2791/2792, CNS11888, JIS K6854, PSTC7, GB/T 453
Uses: This machine is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.
Character:
1. That Using the computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
2. Have steady performace, high accuracy, powerful software function and easy operation.
3. Use the USA high-precision load cell.
Specifications:
Capacity choice1, 2, 5, 10, 20, 50, 100, 200, 500kg optional
Stroke650mm(excluding clamp)
Range of speed50~500mm/min
Effective testing space120mmMAX
Accuracy± 0.5%
Operation methodWindows operation
MotorAC motor
Accessoriescomputer, printer, system operation manual
Optional accessoriesstretcher, air clamp
Resolution1/150, 000
Weight70kg
Dimention(W× D× H)58× 58× 125cm
Power1PH, AC220V, 50/60Hz
Safety Device:
Stroke protectionUpper and lower protection, prevent over preset
Force protectionsystem setting
Emergency stop deviceHandling emergencies
Software functions:
1. Use windows working platform, set all parameter with dialog forms and operate easy;
2. Using a single screen operation, do not need to change the screen;
3. Have simplified Chinese, traditional Chinese and English three languages, switch conveniently;
4. Plan test sheet mode freely;
5. Test data can be directly appeared in the screen;
6. Compare multiple curve data through translation or contrast ways;
7. With many units of measurement, the metric system and british system can switch;
8. Have automatic calibration function;
9. Have user-defined test method function
10. Have test data arithmetic analysis function
11. Have the function of automatic magnification, to achieve the most appropriate size of graphics;
