Product Specifications
| Prod Model: |
3300 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

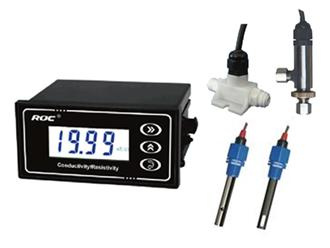

CCT-3300 series conductivity (TDS) measurement controller is a high-technology innovative product.Product performance and function updated to a new level.The conductivity controller a product with high performance and price ratio for inline water quality conductivity analysis.Water tester and meter.
1.1 Main Technical Index
No adjustable component inside the instrument, totally programmed automatic calibration, higher reliability;
Automatic measurement range shift, digital temperature compensation.
Support conductivity cell constant (0.1 cm-1, 1.0 cm-1, 5.0 cm-1, 10.0 cm-1), measurement range compatible with liquid from pure water to concentrated solution, named online conductivity superman.
Conductivity (uS/cm) or TDS (ppm) engineering unit display can be chosen in operation.
Present water temperature / transmitting current (4~20mA) can be check onsite.
Measurement and calibration program for calculation and measurement inspection organization.
Isolated, transferable 4~20mA current output, two points transmitting range random setting within full scope.Support all the two wire PLC system under transmitter model.
Conductivity high limit alarm, high limit value and backlash value random setting within full measurement scope.
Patent short housing and fast installation method to save more space for the project,
High illumination, pure white backlight LCD display in accordance with international trend.
Industrial standard wire contact, EMC electromagnetic compatible design, platform design development, serial product classification.
Meeting international electronic power supply regulation, AC ,DC current input which with non polarity wire connection,
Electrode will be calibrated, tested, packed one by one.
1.2 Applications
This conductivity controller / conductivity meter is widely used for the water treatment control and monitoring of water treatment (high salt content), concentrated solution, recirculating cooling water and etc.
1.3 Products classification
Model Power supply Frequency(Hz) Current loop modes Constant selection Display
CCT-3300E DC 24V --------------- Instrument/Transmitter 0.1-1.0 Three digits and a half
CCT-3310E AC 110V 50/60 Instrument/Transmitter 0.1-1.0 Three digits and a half
CCT-3320 AC 220V 50/60 Instrument/Transmitter 0.1-1.0 Three digits and a half
CCT-3320E AC 220V 50/60 Instrument/Transmitter 0.1-1.0 Three digits and a half
CCT-3320T AC 220V 50/60 Instrument/Transmitter 0.1-1.0 Three digits and a half
Note:The model with E is the EMC enhancement type.
CCT-3320T(Conductivity Monitor) without any control outputs.
Name of product CCT-3300 series of conductivity/TDS Controller
Display LCD display
Auxiliary electrode Constant 0.10 cm-1 1.000 cm-1 5.000 cm-1 10.0 cm-1
Electrode coefficient range 0.070- 0.130 cm-1 0.70 -1.30 cm-1 3.50 -6.50 cm-1 7.00 -13.0 cm-1
Auxiliary electrode accuracy measurement range 0.5~199.9μS/cm 1.0~1999μS/cm 0.05~9.99mS/cm 0.5~19.99mS/cm
Measurement range
conductivity 0.5μS/cm ~ 19.99mS/cm
TDS 0.25ppm~ 9.99 ppt
temperature 0.0~50.0
Resolution conductivity 0.01μS/cm
TDS 0.01ppm
temperature 0.1
Accuracy conductivity 1.5level
TDS 1.5level
temperature ±0.8
Temperature compensation
NTC10K temperature component
Working Environment Temp.0~50 Relative Humidity:≤80%RH
Transmitting output(4~20mA) isolated/transferable/reversible /transmitter mode/meter mode
Loop resistance 0--400Ω accuracy:±0.1mA
Control output Output port double contact relay output (ON/OFF)
load capacity AC 220V/AC110V/DC24V 3A Max
Power consumption <2.5W
Power supply CCT-3300E CCT-3310E CCT-3320/CCT-3320E CCT-3320T
DC 24V ±4V AC 110V ±10% AC 220V ±10% AC 220V ±10%
Frequency(Hz) ------ ------ 50/60 50/60
Installation
Panel mounted ,fast installation clamp
Dimension 48mm×96mm×80mm(H×W×D)
Slot dimension 44mm×92mm(H×W)
Weight 0.27kg
