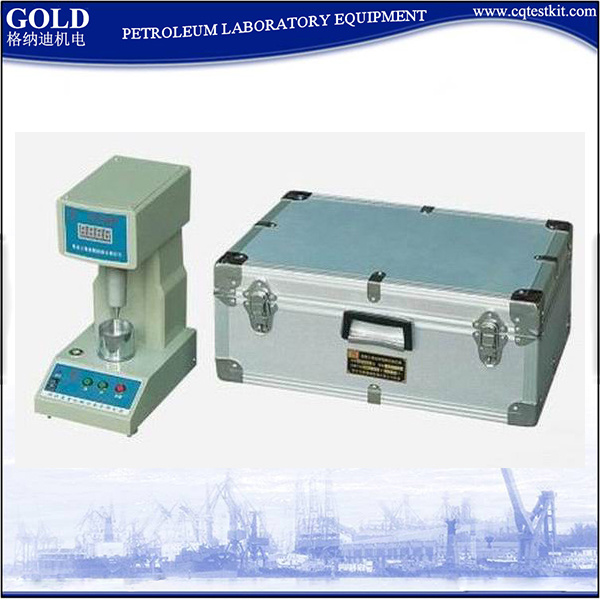

GD-100 Cone Penetration Method Digital Motorized Soil Liquid Plastic Limit Apparatus
Introduction:
It can be used to determine the liquid and plastic limit of soil;
It also provide relevant data to classify soil type, calculate natural consistency and plastic index;
Digital display technology;
Automatically measurement facility;
Excellent performance and high accuracy
Main Technical Specifications:
Max. measuring range: 22mm
Resolution: 0.1mm
Nonlinear error: Superior 2%
Sensitivity of the contact : <0.1mm
Cone's weight : 100g/76g±0.1g
Cone angel: 30°±2°
Measuring Time: 5 Second
Working voltage: 220V±10, 50Hz
Continuous working period: 8hours
Warranty: 1 (One) year with services
Item Name | GD-100 Digital Display Motorized Liquid Limit Apparatus |
| Reading precision | 0.1mm |
| Delay time | 5±0.5 s |
| Measuring distance | 0-25mm |
| Weights | <5Kg |
| Power supply | 220V 50Hz |
| Cone Weight | 76±0.1g |
| Standards | Electricity and Water
100±0.1g Traffic |
