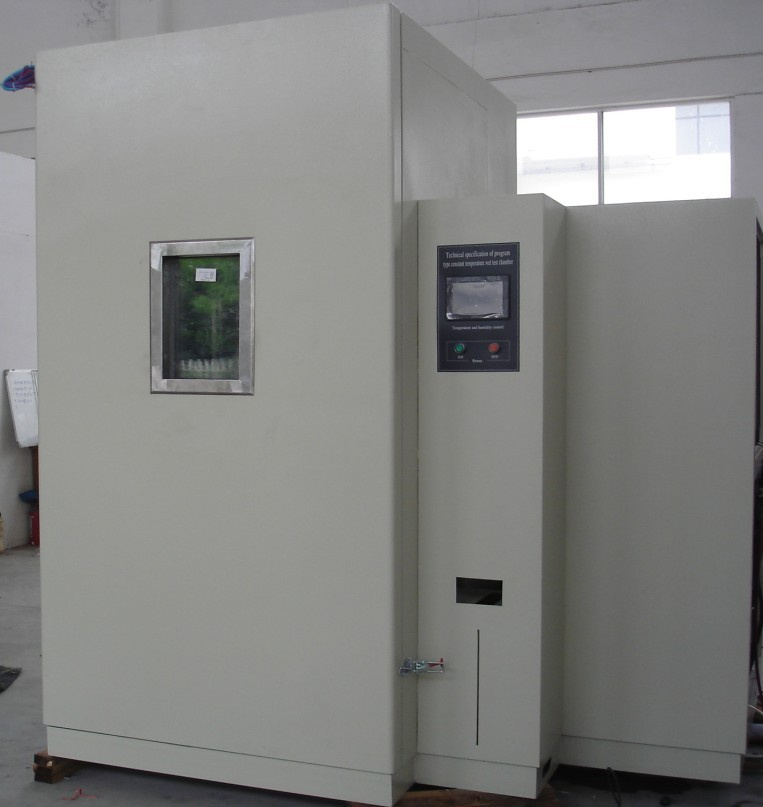

Constant Temperature&Humidity Test Chamber (TPS-GDJS-20)

Product Specifications

Prod Model:	TPS-GDJS-20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

Constant temperature&humidity test chamber

We accept customization!

1. Model and main technical parameter
1.1 Model: GDJS-020
1.2 Chamber size(mm): 2000× 1000× 1000(D× W× H)
1.3 Overall dimension (mm): 2600× 1480× 1810(D× W× H)
1.4 Temperature scope: -70~ 150C
1.5 Humidity scope: 30%~98%R. H
1.6 Temperature fluctuation: Within ± 0.5C
1.7 Temperature deviation: Within ± 2C
1.8 Humidity deviation: ± %R. H
1.9 Rate of rise of temperature: 25~150C about 45 mins
1.10 Cooling rate: 0.7~1C/min
1.11 Operation mode: Program run/constant run of temperature, humidity, have timing shut down function;

2. Environment requirements for using equipments
2.1 Placing the equipments shall be satisfied with following conditions:
Temperature range: 5~30C;
Humidity range: ≤ 85%RH;
Ground requirements: Flat, good ventilation, no strong vibration all around
Without direct irradiation of sunlight or other direct radiation of heat source, without high concentration of dust and corrosion gas, and can not be tested and stored in combustible and explosive gas.
2.2 Space positions
In order to be easy to ventilate, operate and maintain, an enough space for opening and closing door shall be considered, and there are no other things in front of door of equipment, for fear it should be damaged when opening the door of equipment.
2.3 Equipment power supply
Inspect power supply equipment (supply the diameter of cable of power supply and capacity of power supply switch etc) to ensure that they meet the following conditions:
Frequency and error: 50± 0.5Hz;
Power line: Three phrases, five lines, grounding resistance ≤ 10Ω ;
Voltage and error: AC380± 10%V;
Total installed power: 5KW/set;
Main switch of power supply: Because of the electric characteristic of switch box and power socket, if it is used as the power supply switch of this equipment, it will cause equipment hidden troubles, and selection of air power switch is required with leakage protection device.

3. Body structure
The body of test chamber room is formed with steel plate, the lamps is equipped, which is easy for use and observing. The whole test chamber is solid and beautiful.
3.1 Inner material: SUS304/2B high-grade stainless steel plate;
3.2 Casing material: High-grade color steel plate, shows in ivory white;
3.3 Insulating layer: Liner of insulting materials is superfine thermal keeping glass cotton, insulating layer is 100mm;
3.4 Door: Dual-opening pulling protruding door, The glass observation window is equipped on the door, which is made of three-layer of vacuum toughened glass with function of electric heating defrosting. There is electrical heating defrosting function around four sides of door, which effectively prevent t the door channel from frosting or condensation.
3.5 Inner lighting: At the top of test chamber, it is uniformly installed two explosion-proof type illumination lamps, which are controlled by the switch on the control cabinet directly;
3.6 Cable hole: At left sides of test chamber, there is a φ 50mm cable holes in order to be used for connecting inner to outer during testing. The cable hole is made of high-grade stainless steel.
