Product Specifications
| Prod Model: |
SD-420E10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Output Power: |
10W |
| Output: |
Constant Voltage |
| Input Voltage: |
220-240V |
| IP Rating: |
IP20 Non Waterproof |
| Warranty: |
2 Years Warranty |
| Use: |
for Spot Light, Down Light, Panel Light |
| Size: |
115*45*27mm |
| Case: |
Plastic |
| Usage: |
Construction, Building |
| Circuit Structure: |
PWM Controlled |
| Output Type: |
Terminal |
| Driving Method: |
Constant Voltage or Constant Current |
| Certification: |
CE, EMC, SAA |
| Power Supply Voltage: |
AC170-260V |
| Brand: |
Neonpro |
Product Description

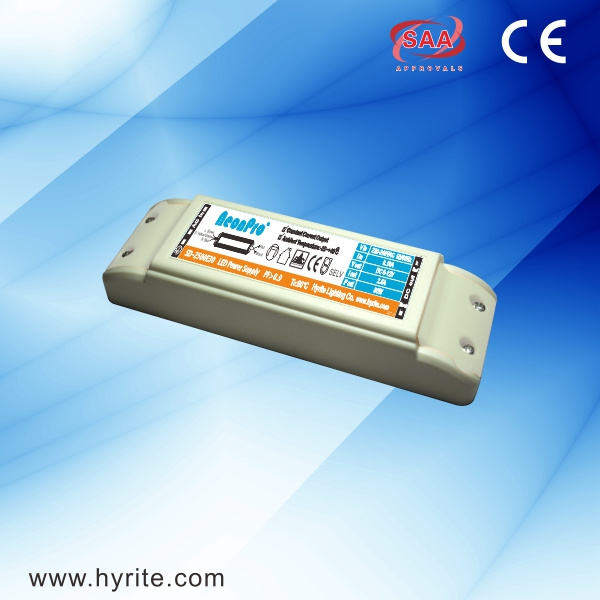

Constant Voltage 24V 10W Triac PWM Dimmable LED Driver
Brief Introduction:
Constant voltage output IP20
Leading or trailing edge dimming, 10%-100% no flickering
Used for LED Module, Strip, Spot Light, Down Light, Panel Light ect
Protection: Over Load, Over Heat, Short Circuit
Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc
Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air
Technical Specification
Model no. | SD-420E10 |
| Input voltage | 170-250 VAC 50/60 Hz |
| Max. power | 10W max |
| Dimmer | TRIAC Dimmer |
| Output type | Constant Voltage |
| Efficiency | 85% |
| Output | 24VDC |
| Overload protection | 105% hiccup mode, auto-recovery |
| Over voltage protection | 120% rated output voltage |
| Withstand voltage | I/P~O/P:1.5kVAC, 1 minute |
| Operating temperature | -25~40 degree |
| Installation | Non Waterproof |
| IP rating | IP20 |
| Certificates/standards | CE |
| Connection input/output | Terminal |
| Dimensions(L*W*H) | 115*45*27 mm |
| Packing information |
|
Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.
The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.
Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.
Pls kindly check our main products below,
*IP67 Slim high efficiency constant voltage LED power supply (New)
*Traditional IP67 constant voltage waterproof LED power supply
*IP45 Rainproof constant voltage LED power supply.
*IP20 indoor type LED power supply.
*Constant Current LED Driver for LED lighting.
*Dimmable LED driver.
*LED module for Channel letter/light box.
Certificate: CE RoHS SASO SAA TUV UL approved
In addition we offer comprehensive OEM and ODM services to our partners.
We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
