Product Specifications
Prod Model: |
SC200/200 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Free Standing Height: |
50m |
Max. Height: |
180m for 650mm Section and 200m for 800mm Section |
Section Diemension: |
650*650*1508mm |
Trade Mark: |
Hsjj |
Lifting Speed: |
33.5m Per Min |
Rated Load: |
2000kg Per Cage |
Power: |
2*(3*11)Kw |
Gear And Rack Modulus: |
8 |
Max. Dimension Of Cage: |
3*1.3*2.5 M |
Dead Load: |
12 Ton |
Application: |
Mineral Area Usage |
Power Source: |
Electric |
Sling Type: |
Wire Rope |
Certification: |
CE |
Condition: |
New |
Type: |
Construction Elevator |
Tower Crane Type: |
Section Climbing |
Main Girder Form: |
Elevator Cage |
Product Description

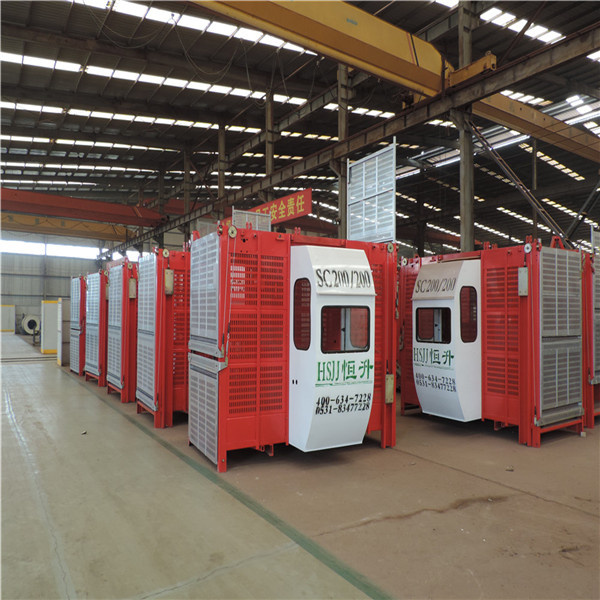

About Our Construction Elevators
Our Construction Elevators may also be referred to as Man-Lifts, Buck Hoists, Temporary Elevators, Material Lifts, Rack & Pinion Hoists, Construction Hoists, Personnel and Material Hoists, etc. but they all serve the same purpose: transporting men and materials vertically in a safe and speedy manner.
Our Construction Elevators can be temporarily installed for:
? Construction or Renovation of commercial or industrial buildings
? Scheduled Outages for Power Plants
? Turnarounds for Oil Refineries
? Underground and Above Ground Mining Applications
We can supply construction elevators for two types of applications:
1. Material-Only - capacities to lift and lower up to 2000kgs of materials or equipment, these are not designed to safely transport personnel.
2. Men and Material - designed to carry up to 2000kgs and large materials like drywall and lumber or a maximum of 20 workers
The construction elevators we offered can have either single or twin cages which move vertically along mast tower sections for even the tallest structures. The mast sections are attached to the structure or building every 6m to 9m via a standard or specially designed tie-in. The cars for twin elevators can operate independently while using the same mast sections. This eliminates or reduces wait times for the elevators while moving men and materials and improving productivity.
Our construction elevator use a motor, brake and gear box with a rack-and-pinion system that climbs the mast sections at various speeds. Lifting speeds vary depending on the make and model of the elevator.
Many of our construction elevators are equipped with variable frequency drives (VFD). VFD elevators provide a much smoother ride and greatly reduce the chance for mechanical breakdown due to wear and tear on working parts. VFD's also eliminate the need to "jog" hoist up and down because of their exceptional leveling accuracy.
Our construction elevators require a trained elevator operator in most situations unless the elevator is installed with automatic controls.
Oerators have to be trained to get the elevator working as quickly as possible when minor problems occur without the need to call in a repair technician.
For more information about the kind of temporary construction elevator your job may require, please contact us to fulfill your needs.
If you need more assistance to choose the right elevator for your job, complete our request a quote form or call HSJJ.
technical performance parameters
Item | name | SC200/200 |
1 | rated load | 2×2000kg |
2 | max. free end height(m) | 7.5 |
3 | max. lifting height(m) | 150 |
4 | operating speed(m/min) | 33.5 |
5 | speed limit(r/min) | 45±5 |
6 | motor type | YZZ132M-4 |
7 | power(KW) | 2X(3×11) |
8 | gear and rack modulus | 8 |
9 | safety device | SAJ40-1.2 series safety device |
10 | section height(m) | 1.508 |
11 | dimension of standard section (m) | 0.65×0.65 |
12 | weight of section (kg) | 164 |
13 | Max. dimension of cage(m) | 3×1.3×2.5 |
14 | total weight (t) | 12 |
Jinan Hengsheng Engineering Machinery Co., Ltd. is a large scale construction machinery manufacturer.
Our main products are tower crane, boom crane, flat top crane with common motor or VFD type. Elevator, construction elevator, hoist, builder's hoist, pellet mill, crusher, mixing machine, wood chipper, hammer mill and accociate products like cooling machine, drying machine and screening machine.
The company has more than 1200 staff, featuring abundant technical force, excellent manufacturing facilities and perfect detection method. The plant covers 255, 000 square meters.
Our company has been granted with the GB/T19001-2000 idt ISO9001: 2000 Certificate of Conformity of Quality Management System, the People's Republic of China special equipment manufacturing license, CE, GOST and other certifications. Products have been exported to Russia, Mongolia, Moldova, Georgia, Turkey, Egypt, India, United Arab Emirates, Algeria, Angola, Mexico, Brazil and other countries, and have enjoyed good reputations from the users.
Hengsheng will offer you machinery with first class technology and first class service for your trust and satisfaction.
