Product Specifications
| Prod Model: |
DEM-08 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wire Gauge: |
0.5mm |
| Size: |
60×80mm |
| Type: |
Roll or Sheet |
| Surface: |
Galvanized or Painting |
| Material: |
Steel Plate |
| Application: |
Decorative Mesh |
| Hole Shape: |
Diamond |
| Usage: |
Protection |
| Weave Characteristic: |
Stamping |
| Surface Treatment: |
Galvanized |
| Stamping Expanded Metal Mesh Category: |
Expanded Metal Mesh |
| Galvanized Surface Treatment: |
Hot-galvanize |
| Hot-galvanize Technique: |
Wire Annealing |
| Specifications: |
Roll |
| Weight: |
Middle-weight |
Product Description
Product Description

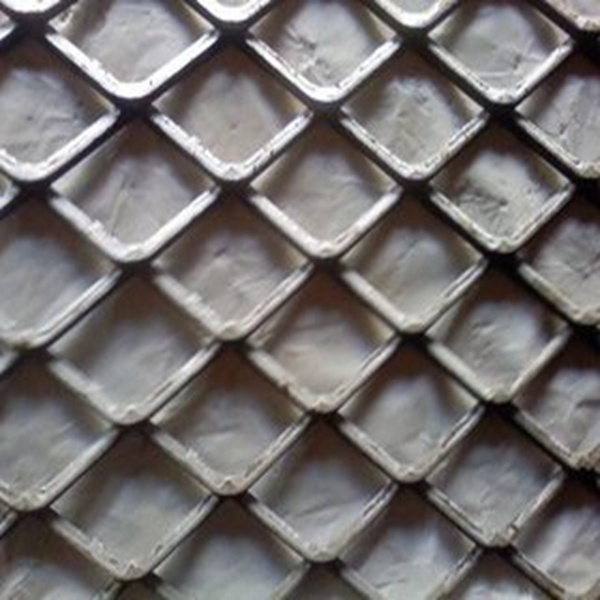

Expanded Metal Mesh products are produced from solid sheets or plates of carbon, galvanized and stainless steel, as well as aluminum and a variety of alloys of copper, nickel, silver, titanium and other metals. Because expanded metal is made from a solid sheet of metal, it can never unravel. The metal strands forming the open diamonds permit light, heat, air, liquids and sound to pass through yet present a virtually un-penetrable barrier to intruders. Expanded Metal is an extraordinary versatile material one with thousands of uses.
Expanded Metal Mesh Size:
SW 3mm-65mm, LW 6mm-180mm, Thickness 0.5mm-6mm. Weight 1.76kg-11.77kg per sqm. It is manufactured from a wide range of materials, mainly expanded steel mesh, Aluminum Expanded Metal, Flattended Expanded Metal, expanded nickel and other metal, as steel reinforcement materials in petroleum, chemical industry, building & decorations.
Expanded Metal Mesh Variety:
Small, Mini Expanded Metal and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded Stainless Steel Wire Mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.
Expanded Metal Mesh Use:
Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges.
Thickness | Open size | Standard size of finished sheets | Weight Reference |
| Short way pitch | Long Way pitch | Bond | Sheet Width | Sheet Length |
| D | TL | TB | b | B | L | kg/m2 |
| 0.5 | 3 | 6 | __ | 100
200 | 2000 | 1.76 |
| 3.2 | 8 |
| 5 | 10 |
| 6 | 12.5 | 1800 | 3000 | 1.08 |
| 7 | 14 |
| 8 | 16 | 2000 | 3340 |
| 9 | 20 |
| 12 | 30 | 1.35 | 1800
2000 | 3600
4000 | 0.88 |
| 10 | 25 | 1.12 |
| 0.8 | 10 | 25 | 1.12 |
| 12 | 30 | 1.35 | 1.41 |
| 15 | 40 | 1.68 |
| 1.0 | 10 | 25 | 1.12 |
| 12 | 30 | 1.35 | 1.76 |
| 15 | 40 | 1.68 |
| 1.2 | 10 | 25 | 1.13 |
| 12 | 30 | 1.35 | 2.12 |
| 15 | 40 | 1.68 |
| 18 | 50 | 2.03 |
| 1.5 | 15 | 40 | 1.69 | __ | __ | 2.64 |
| 18 | 50 | 2.03 |
| 22 | 60 | 2.47 |
| 29 | 80 | 3.25 | 3.53 |
| 2.0 | 18 | 50 | 2.03 | 1800
2000
2500 | 3600
4000
5000 |
| 22 | 60 | 2.47 |
| 29 | 80 | 3.26 | 4.42 |
| 36 | 100 | 4.05 |
| 44 | 120 | 4.95 | 5.29 |
| 3.0 | 36 | 100 | 4.05 |
| 44 | 120 | 4.95 |
| 55 | 150 | 4.99 | 2000 | 5000 | 4.27 |
| 2500 | 6400 |
| 65 | 180 | 4.60 | 2000 | 6400 | 3.33 |
| 2500 | 8000 |
| 4 | 22 | 60 | 4.5 | 1500
|
2000 | 2000-3000 | 12.84 |
| 30 | 80 | 5 | 2000-4000 | 10.46 |
| 38 | 100 | 6 | 2000-4500 | 9.91 |
| 5 | 24 | 60 | 6 | 2000-3000 | 19.62 |
| 35 | 80 | 6 | 2000-4000 | 14.71 |
| 38 | 100 | 7 | 2000-4500 | 14.67 |
| 56 | 150 | 6 | 2000-6000 | 8.41 |
| 76 | 200 | 6 | 2000-6000 | 6.19 |
| 6 | 32 | 80 | 7 | __ | 2000-4000 | 20.60 |
| 38 | 100 | 7 | 2000-4500 | 17.35 |
| 56 | 150 | 7 | 2000-6000 | 11.77
|
