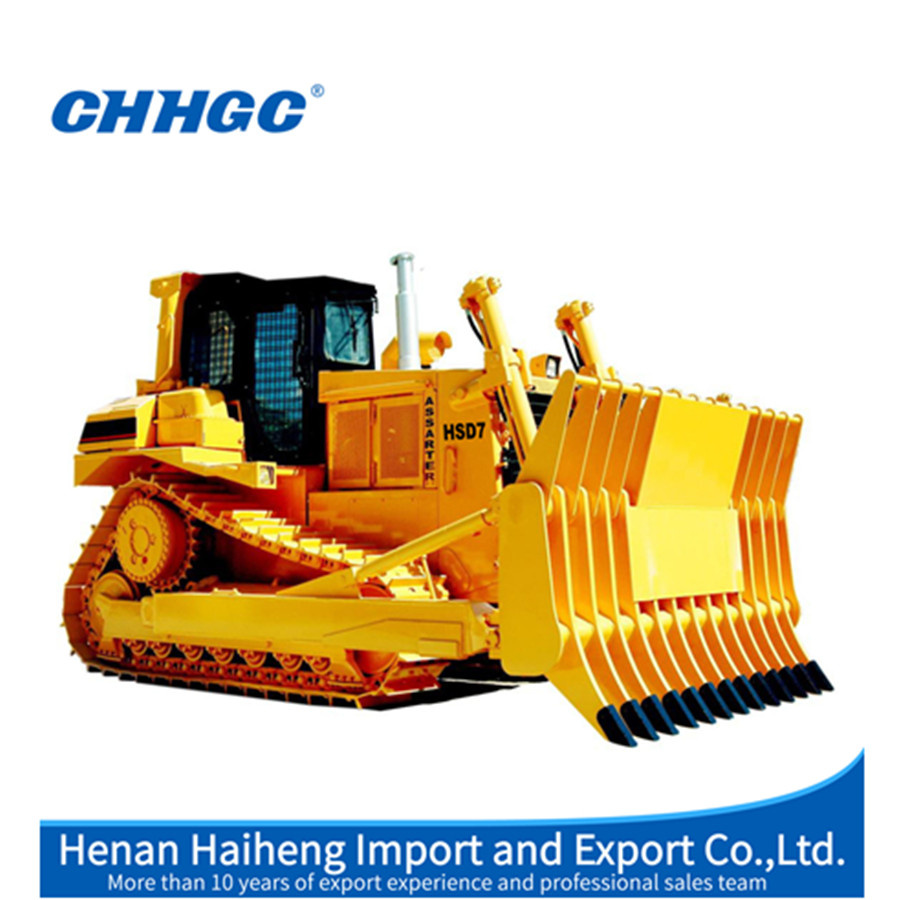

Construction Machine Bulldozer Hsd7
| Price: |
US $ 100000-120000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Paypal,Money Gram,Western Union |
230hp/8.4m3/18.3ton HSD7 high drive bulldozer
Type of undercarriage system: Swing type of sprayed beam.Suspended structure of equalizer bar
Transmission: Normally meshed helical gear drive, coupling sleeve shift and two lever operation,
the transmission has five forward and four backward speeds.
Steering clutch: Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated.
Final drive:The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal.
| Specifications |
Moore efficient and convenient working,just use the bulldozer.
1.Technical Specifications:
Specifications
Dozer Tilt
Operation weight (not including ripper)(Kg) 23800
Ground pressure(KPa) 71.9
Track gauge(mm) 1980
Gradient 30°/25°
Min. ground clearance (mm) 404
Dozing capacity (m³) 8.4
Blade width (mm) 3500
Max. digging depth (mm) 498
Overall dimensions (mm) 5677×3500×3402
(including ripper) 7616×3500×3402
Engine
Type CUMMINS NTA855-C280S10
Rated revolution (rpm) 2100
Flywheel power (KW/HP) 169/230
Max. torque (N?m/rpm) 1097/1500
Rated fuel consumption(g/KW?h) ≤235
Undercarriage system
Type The track is triangle shape.
The sprocket is elevated elastic suspended.
Number of track rollers (each side) 7
Pitch (mm) 216
Width of shoe (mm) 560
Gear 1st 2nd 3rd
Forward (Km/h) 0-3.9 0-6.5 0-10.9
Backward (Km/h) 0-4.8 0-8.2 0-13.2
Implement hydraulic system
Max. system pressure (MPa) 18.6
Pump type High perssure gears pump
System output(L/min) 194 |
|
| Prod Model: |
Bulldozer HSD7 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Construction Machine Bulldozer: |
Hsd7 |
