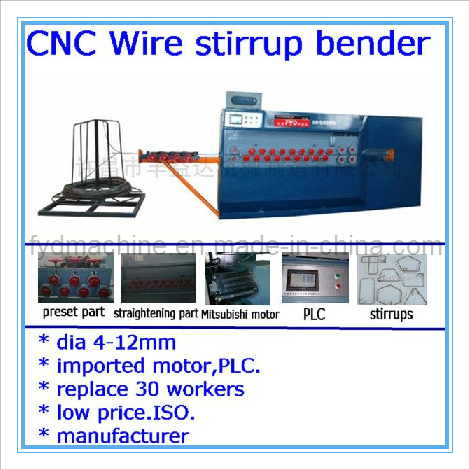

Construction machinery 2d CNC wire bending automatic stirrup making machine
My company absorbs European technology, research and develop the CNC bending and hooping machine with our independent intellectual property rights, which is collecting of straightening, bending and cutting three functions in a body, it adopts the digital program control, it can make all shapes of bending the reinforced machining equipments, the machine can also bending double rebar, with high efficiency, easy adjustment, the deeply favor from users.
2d CNC wire bending machine features:
1. Multi-functional digital control
2. Three functions: Decoil, straightening, bending
3. Adopting the European technology
4. Alloy steel, grinding and rigidity characteristic
5. Auto feeding, hydraulic pumping station, low noise
6. Two steel straightening and bending simultaneously
7, convenient operation, touch screen
8, high efficiency, can finish 900-1800PCS/H, can replace 20-30 workers.
|
Items |
parameter |
|
Traction servo motor |
total power |
7 KW |
|
spindle speed |
1800 r/min |
|
Processing scope |
single line |
Φ4-Φ12 mm |
|
diplonema |
Φ4-Φ8 mm |
|
Maximum draught speed |
90-100 m/min |
|
material-feeding accuracy |
±1 mm |
|
Processing Angle tolerance |
±1° |
|
Length scope |
60-1200 mm |
|
processing capacity |
900-1800 Pic/H |
|
Pressure of Hydraulic pump station |
0.8-1.0 MPa |
|
OTR operation temperature range |
-5-50°C |
|
Whole weight |
2.0-2.2 ton |
|
overall dimension |
3700*1600*1000 mm |
|
hydraulic pressure pimping station |
power |
7.5 KW |
|
Rotate speed |
1500 r/min |
|
General power of equipment |
15 KW |
|
power consumption per hour |
10° |
|
Output per hour |
2200 unit |
