Product Specifications
| Prod Model: |
SLZ867 |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East |
| Use: |
Shovel/ Loading/ Transport(Soil, Gravel, Clay) |
| Operating Weight: |
19600kg |
| Fuel Tank Volume: |
300L |
| Rated Power: |
175kw |
| Min. Fuel Consumption: |
≤220g/Kw.H |
| Dimension: |
82500X3100X3400 Mm |
| Dump Distance: |
1255mm |
| Bucket Capacity: |
433 M3 |
| Total Time Of Three Devices: |
10.65±0.5s |
| Skype: |
Xiuyun.Li1 (All Lowcase) |
| Type: |
Small Loader |
| Walking Mode: |
Wheeled |
| Load And Unload Method: |
Front Discharge |
| Certification: |
ISO9001: 2000 |
| Condition: |
New |
Product Description

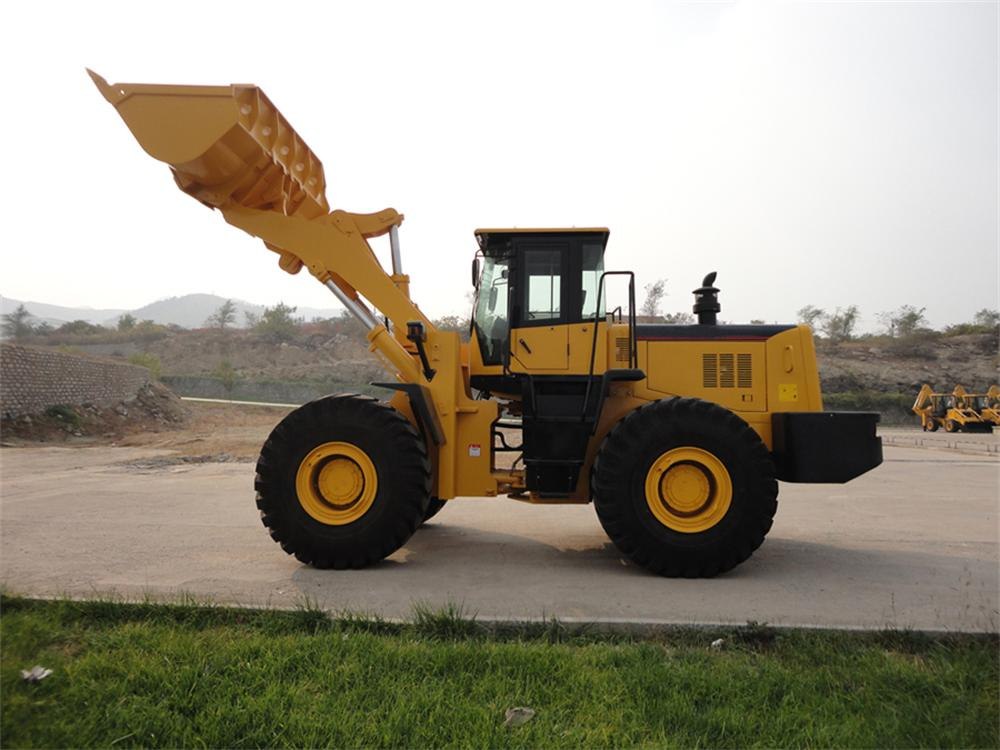

Construction Machinery 6 ton wheel loader 3 cubic meter
Rated load: 6000kg
overall weight: 19600kg
rated bucket capacity: 3.3m3
Max. dump height: 3450mm
Max. dump reach: 1255mm
overall dimension (LxWxH): 82500x3100x3400mm
Min. turning radius: 6500mm
type specification: 26.5-25
Engine model: Weichai SteyrDHD10G0353
type: lnline water cooling dry cylinder injection
rated power: 175kw--2200r/min
Our main products:
1.Tipper truck: 4x2, 4x4, 6x4, 6x6, 8x4, 10x6
2.Tractor truck: 4x2, 4x4, 6x4, 6x6
3.Cargo truck: 4x2, 4x4, 6x4, 6x6, 8x4
4.Concrete mixer: 6x4, 8x4
5.Water tank truck : 4x2, 6x4, 8x4
6.Oil tank: 4x2, 6x4, 8x4
7.Garbage truck
8.Sewage suction truck
9.Work shop truck
10.Truck mounted concrete pumps: 37m, 42m, 45m, 48m
11.Truck crane: 20tons, 25tons, 35tons, 50tons
12.Semi trailer: container trailer, cargo trailer, low bed trailer
13.Light truck
1) Diesel Flatbed Truck: Loading 0.5 ton, 1 ton, 2 ton, 3 ton, 3.5 ton, 5 ton;
2) Diesel BoxTruck: Loading 0.5 ton, 1 ton, 2 ton, 3 ton, 3.5 ton, 5 ton;
3) Diesel Dump Truck: Loading 2 ton, 3 ton, 5 ton, 7 ton, 10 ton, 12 ton;
4) Petrol Flatbed Truck: Loading 0.5 ton, 2 ton, 3 ton;
5) Petrol Box Truck: Loading 0.5 ton, 2 ton, 3 ton;
6) CNG Flatbed Truck: Loading 0.5 ton, 2 ton, 3 ton;
Performance | rated load | 6000kg |
| overall weight | 19600kg |
| rated bucket capacity | 3.3m3 |
| Max. tractive force | 158KN |
| Max. breakout force | ≥204KN |
| Max. grade ability | 30ºC |
| Max. dump height | 3450mm |
| Max. dump reach | 1255mm |
| overall dimension (LxWxH) | 82500x3100x3400mm |
| Min. turning radius | 6500mm |
| Engine | model | Weichai SteyrDHD10G0353 |
| type | lnline water cooling dry cylinder injection |
| No. of cylinder-bore/stroke | 6-126×130mm |
| rated power | 175kw--2200r/min |
| Max. torque | 843N.m |
| min fuel-consume ratio | ≤220g/kw.h |
| Transmission system | gearbox mode | Planetary |
| gear shift | 2 forward shift 1reverse shift |
| Max. speed | 38km/h |
| Drive axles | main reducing spiral | bevel gear grade 1reduction |
| decelerating mode | planetary reduction,grade 1 |
| wheel base (mm) | 3350mm |
| wheel tread | 2250mm |
| Min. ground clearance | 450mm |
Hydraulic system | system working pressure | 18MPa |
| boom lifting time | 6.15±0.25s |
| total time | 10.65±0.5s |
| fuel tank capacity | 300L |
| function of leveling automatically | yes |
Brake system | service brake | air over hydraulic disc brake on 4 wheels |
| parking brake | manual parking brake |
Tyre | type specification | 26.5-25 |
| front tyre pressure | 0.4Mpa |
| rear tyre pressure | 0.35Mpa |
