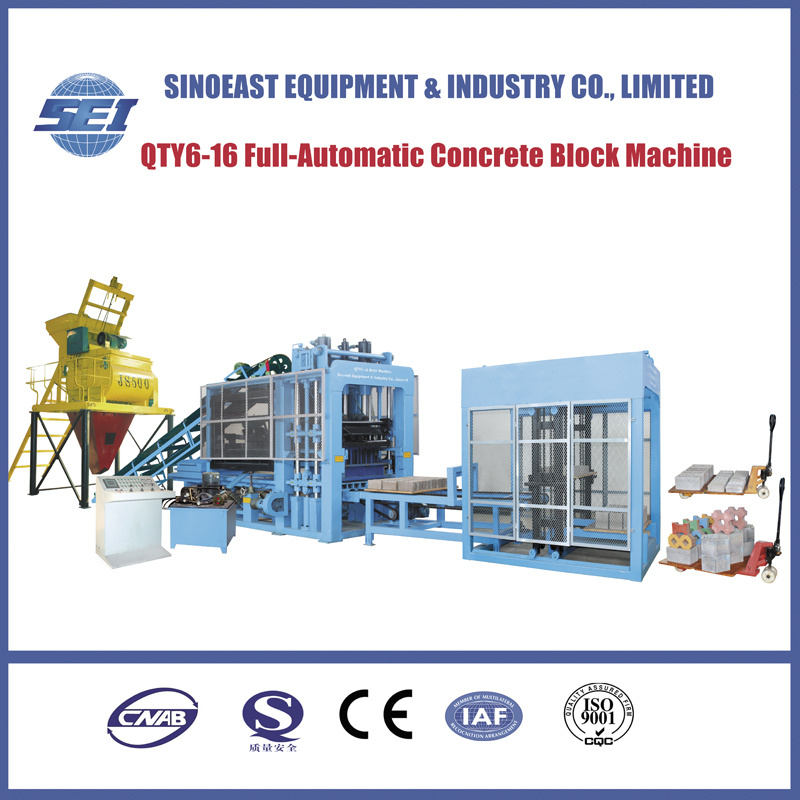

Construction Machinery Block Making Machine (QTY6-16)

Product Specifications

Prod Model:	QTY6-16
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	Electric
Processing:	Brick Production Line
Method:	Hydraulic Pressure
Capacity:	69120 PCS/8 Hours
Brick Raw Materia:	Sand,Cement,Construction Waste
Dimension(L*W*H):	2850X2200X2850mm
Weight:	11.5 T
Total Power:	31 Kw
Warranty:	1 Year
After-Sales Service Provided:	Ngineers Available to Service Machine

Product Description

Features:
1. The lifter adjusting the working plate brings much more accuracy and swiftness. The discharging mouth is used to dispose the remaining raw materials, which make the skip car plate clean and tidy and avoids the easy damage of the oil cylinder piston rod of the skip car.
2. Crank-link mechanism is employed . It transmits the circular motion of the crank into the straight reciprocating motion of the mobile fame, this ensures the pallets moving smoothly and transmitting products stably.
3. The upper and lower slider are made of thick plates. The column sleeve and the slider is connected by screw, which makes it is convenient to change the copper bushing.
4. The synchronous demoulding system which is driven by gears and chains makes the two demoulding cylinder work synchronous and the moulds move stably.
5. There are tree cylinders on the upper mold . The middle one assures the lifting speeding and the other two on both sides ensures the pressure of the upper mould.
6. As for the movement parts of the stacker, we use the swing link. This transmits the circular motion of the swing stem into the straight reciprocating motion of the mobile frame. The pallets will uniformly accelerate and move smoothly, which makes it much easier to operate.
7. PLC and the touching screen are products from Siemens, Germany. One electronic control cabinet control both the block making machine and the stacker, which makes it easier so operate and perform failure diagnosis.
8. The hydraulic units uses Youshun, Taiwan, which ensures the good performance of the machine.
9. The machine frame is welded by using special thick-walled rectangle welding method. The transmission shaft and gears and made of alloy steel which makes them much stronger and more durable.
10. The lifting motor of the stacker employs the motor with cone-form motors , the lifting chain using 16A chains which can bear weight up to 6T. The machine plate is welded by using special thick-walled rectangle welding method, which makes the machine plate more stable.
11. Charging skip orbit is suspended on the assistant machine frame. The charging skip is  equipped with eight traveling wheels. Among them, the four triangle rollers above the skip are used to avoid the skip from swinging, and the another four flat rollers below are used to avoid the skip from jumping in the course of vibration and also avoid the raw materials from leaking.
Production scale
1. Floor area: 6000m 2 (500m 2 for production, 800m2 for warehouse, 100m2 for office and 4600m2 for the site ground)
2. Workers: 6

 Technical Specifications

Production Capacity	Standard brick 240*115*53mm 36 pcs/mould
	Hollow block 390*190*190mm 6pcs/mould
	Road brick 0.55m2 /mould
Cycle time	15-20S
Shift output	Standard brick 240*115*53mm 69120 pcs/8 hours
	Hollow block 390*190*190mm 11520 pcs/8 hours
	Road brick 960m2 /8 hours
Vibrating force	70 KN
Power	31 KW
Pallet Size	940x830x25mm
Weight	11.5 T
Dimensions	2850x2200x2850mm

Items of investment

Component of production line	Quantity
QTY 6-16 Block Making Machine	1
Automatic brick conveyor machine	1
Automatic pallet feeder	1
Hydraulic unit	1
Control system(German Siemens)	1
Belt ConveyerII	1
JS500 Mixer	1
Elevator/Lowerator	1
Free mould	1
Manual hydraulic forklift	2
