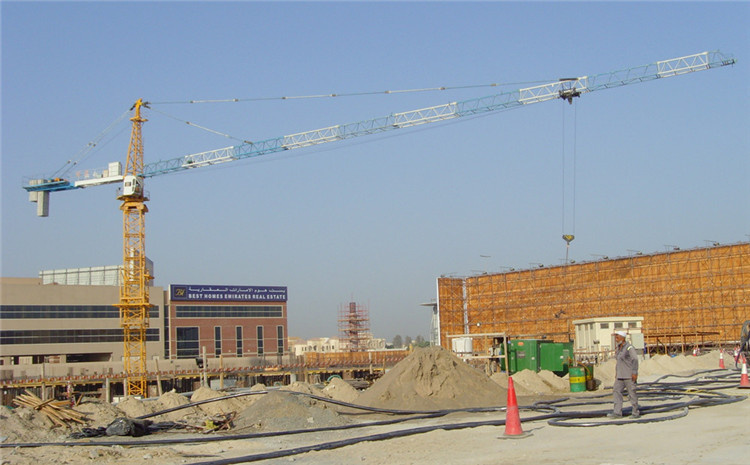

Construction Machinery Made in China by Hsjj-Qtz5010

Product Specifications

Prod Model:	QTZ5010
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Material:	Chinese Famous Steel Company
Electrical Mechanism:	Siemens or Schneider
Hoist Mechanism:	Brake Wheel
Trolley Mechanism:	Free Maintenance Planetary Reducer and Cone Brake
Slewing Mechanism:	Winding Motor and Hydraulic Transmission
Operation Device:	Good for Operator
Safety Devices:	a Complete Set of Safety Devices
Crane In Free Standing Height:	30m
Type:	Tower Crane
Application:	Mineral Area Usage
Sling Type:	Wire Rope
Power Source:	Electric
Certification:	CE
Condition:	New
Main Girder Form:	Tower Lift Boom

Product Description

construction machinery
table of tech data and fitting spare parts
 Table for technical performances

Rated lifting torque				kN.m	630
Max. lifting capacity				t	5
Working range				m	3~50
Lifting Height			Independent		41.2
			Adhered		151.2
Lifting speed			Double magnification	m/min	80.36/41.05
			Quadruple magnification		39.37/20.11
Swiveling speed				r/min	0.64
Ranging speed				m/min	44/22
Climbing speed					0.4
Min. stable descending speed					≤7
Overall dimensions	Foundation frame			m	8×8
	Overall height	Independent			50.892
		Adhered			160.892
	Jib end to the swiveling center				51.21
	Balance tip to swiveling center				12.39
Total weight	Structure weight	Independent		t	37.35
		Adhered			72.62
	counterweight				13.25
Total motor capacity				kw	40.31
Allowed operating temperature				Deg c	-20~+40
Power supply parameters				50Hz/60Hz	~380V±10% /440V±10%

Table of tech data
Main tech data

Mechanical load		Lifting mechanism		M5
		Swiveling mechanism		M4
		Ranging mechanism		M4
Lifting mechanism	motor	Model		YZRDW225-4/8
		Power (kW)		24/24
	Limiter of height	Model		FKDX-G
	steel wire	Model		6W19-12-1770-I
		Max. pulling force (N)		12500
	Magnification	a=2		a=4
	Lifting Speed (m/min)	80.4	41.0	39.4	20.1
	Rated lifting capacity (t)	1	2.5	2	5
	Min. stable descending speed	m/min		<7
Swiveling mechanism	Motor	Model		YZR132M2-6
		power (kW)		3.7×2
		Rotation speed (r/min)		908
	reducer	Model		XX4-100.145
		ration		187
	Hydraulic couplings	Model		YOX250A
	Pinion of swiveling	modulus    m		10
		teeth   z		15
		Displacement factor		+0.5
	Swiveling speed	r/min		0.64
Swiveling bearings	Straight 4-point contact ball type bearings	Model		011·45·1250
		modulus    m		10
		teeth     z		118
Hydraulic lifting mechanism	power motor	Model		Y132M-4B5
		power(kW)		5.5
	Operating press of hydraulic oil tank	M Pa		25
	Max. lifting force	t		50
	Cylinder stroke	mm		1600
	Mounting space	mm		2070
	Diameter of oil tank	mm		φ160
	Diameter of cylinder piston rod	mm		φ110
	Climbing speed	m/min		0.4
Radius changing mechanism	Motor	model		YDEJ132S-4/8
		power(kW)		3.2/2.2
	Steer wire	model		6×19-7.7-1550
	reducer	model		XX2-12-38
		ratio		38
	Radius speed	m/min		44/22

Description of QTZ series tower Crane

1) the tower crane is one of the most popular type and hot-selling self-erecting tower crane, which is researched and designed by Institute of Building Mechanization of China Academy of Building Research. It absorbs many advanced technology both from China mainland and abroad.
2) We adopt to use Dual drawbars structure on lifting boom, which enables the lifting boom to be unfer no stress at lifting surface other than uniaxial stress, and moreover, it gets rid of the stress peak. It greatly improves the fatigue safety performance of lifting boom.
3) Adopts VVVF stepless speed variation device for lifting, radius changing and slewing mechanisms, to make sure it works steadily and effectively, it also lowers the maintenance cost.
4)We can offer crane standard sections such as the FO/23B standard sections for customers to choose from.

3. Service
1.) Providing timely delivery, standby engineers are ready to solve any problems
2.) Providing 12 (twelve only)months product warranty period,with ample spare parts
3.) Providing work site installation guidance and training of operation and maintenances
