Construction Machinery Zcjk Concrete Block Making Machine

Name: Construction Machinery Zcjk Concrete Block Making Machine
Brand: China-Manufacturer-Directory.com
SKU: 609806471
Availability: InStock
Rating: 4.9 (127 reviews)

Supplier:	Beijing Zhongcai Jianke Institute of Science and Technology for Building Materials
Price:	US $ 17770-22580/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	QTY4-20A Block Making Machine
Markets:	North America,South America,Southeast Asia,Africa,Mid East,Eastern Asia
Name:	Block Making Machine
Brand:	Zcjk Block Making Machine
Model:	Qty4-20A Block Making Machine
Weight:	4.5t
Cycle Time:	18-20s
Power:	24.95kw
Vibration Force:	68kn
Pallet Size:	1020X550X25

Product Description

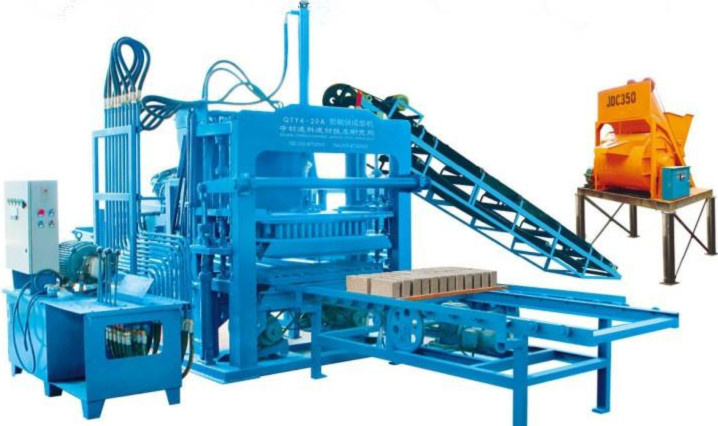

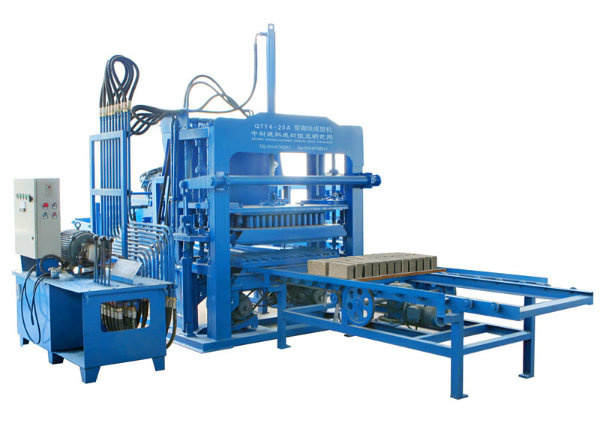

ZCJK Concrete block making machine

Equipment Superiority

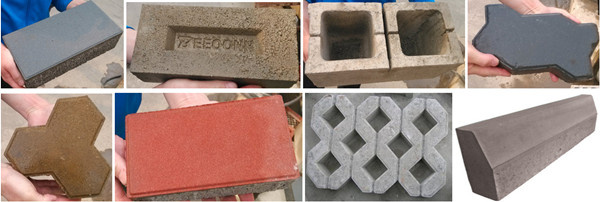

(1)Function: Standard blocks, blocks, perforated blocks, paving blocks, etc. Can be produced with various molds.

(2)Process: Blok Making Machine is manpower saving for its operating rod control, automatic pallet conveyance, automatic leading-out and hydraulic molding.

Structure:
(1)Block Making Machine (QTY4-20A) is solid and durable for its four guiding columns and patent lengthening sleeve guide.
(2)The forced mold synchronous structure gives the products perfect shape and high strength. And the stable demolding process ensures the output of more finished products.

Quality & Service

* ISO9001, CE, BV, SGS certification
*We have past the tests of National Building Materials and Mechanical Products Testing Center.
*Service is the guarantee of company lifeProviding the customers with first-class service is our long-term and unchangeable ideas.
*Many experienced overseas engineer will be sent to install machines.
*The products are produced according to the international standard, which are also reached advanced national standards. Technology such as constant vibration, frequency conversion and braking is put into practice in the production process. Apart from this, after vibration and energy consumption will stop immediately the machine is turned off.
*Key parts of the equipment are made with fine workmanship according to fatigue-resistant design, which may meet users' demand of continuous multishift producton.

Production Capacity
Items	Size(mm)	pcs/mould	Cycle Time	Production capacity
	(LWH)			pcs/hour	pcs/day
Standard block	24011553	26	18-20S	5200	41600
Hollow Block	400200200	4	18-20S	800	6400
Paving Blok	25025050	0.45m²	18-20S	90m²	720m²
Technical Parameter
Brand Name		ZCJK block making machine
Power		24.95kw
Weight		4.5T
Overall Dimension		300022002900mm
Workers		6
Blocks curing area		2650m²
Size of bamboo pallet		102055020mm

Introduction:

Beijing Zhongcai Jianke Institute of Science and Technology for Building Materials is located in Guangzhuang, Dongli, Chaoyang District of Beijing which is the birth place for building materials. It is specializing in the manufacture and export of block making machine and roof tile machine and other construction equipments.

Quality is the core of our company. Advanced inspection equipments and stringent quality control tests make us through ISO9001 certification, and also we have passed the tests of National Building Materials and Mechanical Products Testing Center. Service is the guarantee of company life. Providing the customers with first-class service is our long-term and unchangeable ideas. Our products have been exported to Asia, South America, Africa, Middle East, Russia and so on.

It is our unceasing pursuit to commit ourselves to research and develop high-quality, environmental protection and new type building materials

1. Our head office is in Beijing

2. Our machines had been exported to 92 countries

3. Our product has passed CE, ISO9001, BV, SGS, CTC cetification

4. We have 2 Factories in China, one is in Beijing, the other one is in Wuhan China

5. We have 12 different models, Small, medium and large investment from USD1, 600 ----- USD350, 000.

6. We are an institute belong to China Building Material Academy, here is the most authoritative China Building Materias Inspection and China Construction Machinery Inspection And Certification Center.

7. We have after-sales departent in Asia, America, South America, Africa.

8. Engineers will come to you to install the machine and train workers for you.
