Product Specifications
| Prod Model: |
GW40/50 |
| Markets: |
South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Name: |
Steel Onstruction Round Bar Bender and Flat Bar Be |
| Bend Bar Diameter: |
6-50mm |
| Motor: |
380V/3phase/50Hz |
| Power: |
Electricity |
| Transmission: |
Turbine Transfer or Gear Transfer |
| Packaging: |
Wooden Case and Iron Frame |
| Delivery Time: |
Within 10-20 Days |
Product Description

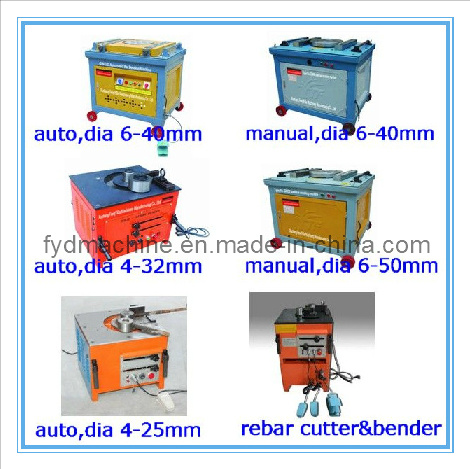

Construction round bar bender and flat bar bender machine tool
Steel bar bender detailed features:
1. Work disk and insert block adopts carbon structural steel material and are processed in the CNC Precision Machining Center which assures its dimensional requirement and surface smoothness, it also increases its working strength.
2. The attachment adopts 40cr material and are processed by high standard heat treatment.
3. The machine frame itself weights 55KGS and the work panel uses 10mm(or 12mm) thick steel plate to increase the machine strength.
4. The motors are national standard motor
5. The operation is easy and reliable, bending angle is accurate, point move and point return can adjust the original position of the disc.
6. Easy to set any angle between 0-180 degree.
7. Axletree adopts superior material and the oil seal is imported.
Our round bar bender and flat bar bender machine advantage:
1. Low price. Price is much lower than similar product in the market.
2. High quality. ISO Certify. Strict quality control through prodction
3. Fast delivery. Within 10-15 days upon receipt of payment
4. Manufacturer. Professional, reliable.
|
Item |
GW40B |
GW40A |
GW42D |
GW50 |
|
carbon steel |
Φ6-40mm |
Φ6-40mm |
Φ6-40mm |
Φ6-50mm |
|
deformed bar |
Φ6-32mm |
Φ6-32mm |
Φ6-32mm |
Φ6-40mm |
|
Operation disc |
Φ350mm |
Φ350mm |
Φ350mm |
Φ400mm |
Motor
|
3KW/380V/50HZ
3phase
normal motor |
3KW/380V/50HZ
3phase
normal motor |
3KW/380V/50HZ
3phase
break motor |
4KW/380V 50HZ /3phase
normal motor |
4KW/380V 50HZ /3phase
break motor |
|
motor rotate speed |
1440r/min |
1440r/min |
1440r/min |
1400r/min |
|
size before packing (mm) |
910×730×850 |
910×730×810 |
910×730×850 |
1060×800×860 |
970×800×880 |
|
size after packing (mm) |
1100×950×1000 |
1100×950×1000 |
1100×950×1000 |
1250×1100×1100 |
1250×1100×1100 |
|
N.W. (kg) |
303 |
399 |
298 |
406 |
437 |
|
G.W. (kg) |
320 |
430 |
320 |
430 |
465 |
|
transmission |
gear transfer |
turbine transfer |
gear transfer |
turbine transfer |
|
power supply |
electric |
electric |
electric |
electric |
|
control mode |
manual |
manual |
automatic |
manual |
automatic |
Xuchang FengYiDa Machinery Manufacturing Co., Ltd., founded in 2000, is a professional manufacturer in manufacturing small-sized construction machinery, which cover construction machinery, road machinery and and concrete equipment.
Our products mainly are:
Steel Bar Cutting Machine
Steel Bar Bending Machine
Steel Bar Straightening & Cutting Machine
Concrete Cutting Machine
Polishing Machine
Impact Rammer
Road Roller
Being located in Change City, Henan Province, China, We are enjoying convenient transportation. Our factory is neighboring to the railway, expressway and aviation airport. Besides, Changge is very famous as the largest production base for construction machines in North China. About 80% of construction machines in China are made here every year. Xuchang FengYiDa is one of the leading producers in this business line, owning professional technology and rich experience for over 10 years.
With nearly 130 agents' hard-working during the past 11 years, We won great reputation in domestic market. In last year, we established good relationship with customers in Australia, South Africa, Tanzania, and Southeast Asia., etc.
Welcome your inquiry!
