Product Specifications
| Prod Model: |
SKZS-15/RF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy Grade: |
Class B |
| Water Temperature: |
1-30 Centigrade |
| Working Pressure: |
1.0MPa |
| Power Source: |
One Built-in Lithium Battery |
| Display Method: |
LCD/LED |
| Working Voltage: |
3.6V |
| Working Current: |
Less Than 40mA |
| Valve Performance: |
Under Pressure of 0.02 and 1.0MPa Respectively |
| Head Loss: |
0.063MPa |
| Dust Proof: |
IP68 |
| Install: |
Horizontal |
| Medium Temperature: |
Cold Water |
| Level Measurement: |
B |
| Counter Instructions: |
Digital |
| Nominal Diameter: |
15-50mm |
| Application: |
Civil |
| Principle: |
Speed of Water Meter |
| Medium Pressure: |
General Water Meter |
| Work Environment: |
Dry Water Meter |
Product Description

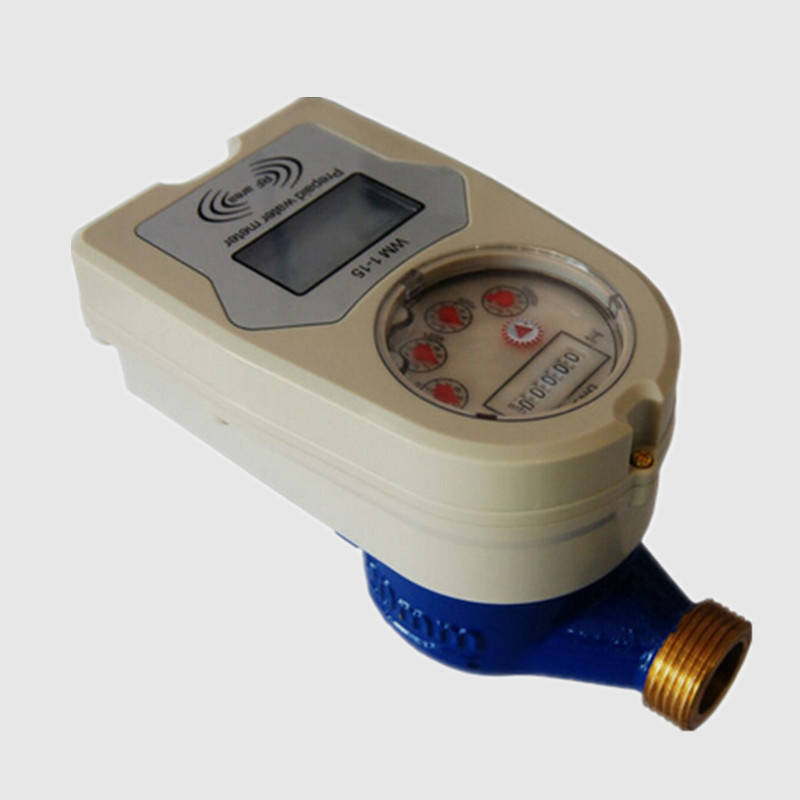

Function: Measuring the volume of cold potable water passing through the pipeline
Technical Standards: ISO4064-2005, GB/T 778.1~778.3-2007, JJG 162-2009
Main Functions:
Water& Dust Proof--IP68
---Adopt fully sealed design, perfect water proof performance, suitable for damp & humid installation sites, perfect for outdoors and underground usage
Control Function
---Prepay water charge via water purchasing/rechargeable card, prepayment before usage, eradicate phenomena of water charges arrears.
Inquiry Display
---LCD capable to display the current purchased volume, remaining volume, accumulative consumed volume, facilitate user queries; Maintenance personnel and background management system can inspect and analyze the data which is read-out by using the inspection card.
Protection Function
---Valve will shut automatically under circumstances of battery under voltage, power supply interruption or external magnetic field interference.
Remind & Alarm
---Timely remind or alarm in the situations of battery under voltage, remaining volume insufficiency, misoperation or magnetic disturbance.
Automatic Statistics
---Automatically collect and analyze the monthly actual consumption situation of every water user, suit the operating department's management convenience
Anti-blocking
---Adopt anti system halted circuits & valve anti-blocking patent design, prevent dysfunction of water meter actuating mechanism
Automatic Maintenance
---Meter inner preset with self-checking function, check valve's flexibility and avoid lithium battery dormancy.
Data Retention
---User's data could be saved for over 10 years, no data loss in case of battery empty or cut off.
Extended Functions:
One Card
--- For the same user that holds multi RF cards for water, electricity, gas meters or more RF water meters, All-in-one-card management & control is feasible
Measuring Methods
---Able to conduct measuring methods in water volume or amount of money; In the case of amount measuring, flat rate tariff multiple tariff and ladder prices are feasible
Ladder prices
---On administrative department's request, ladder prices for different segment charging are feasible to be set, facilitate administrative department to execute "ladder price" policy easily
| Nominal Dia. | Metrological Accuracy | Permanent Flow Q3 | Q3/Q1 | Q2/Q1 | Min.
Reading | Max.
Reading | Valve Permissive Linkage Volume |
| mm | class | m³/h | m³ | m³/h |
| 15 |
B | 2.5 | 63/80/100 | 1.6 |
0.0001 |
99999 | 0.010 |
| 20 | 4 | 63/80/100 | 1.6 | 0.015 |
| 25 | 6.3 | 63/80/100 | 1.6 | 0.020 |
